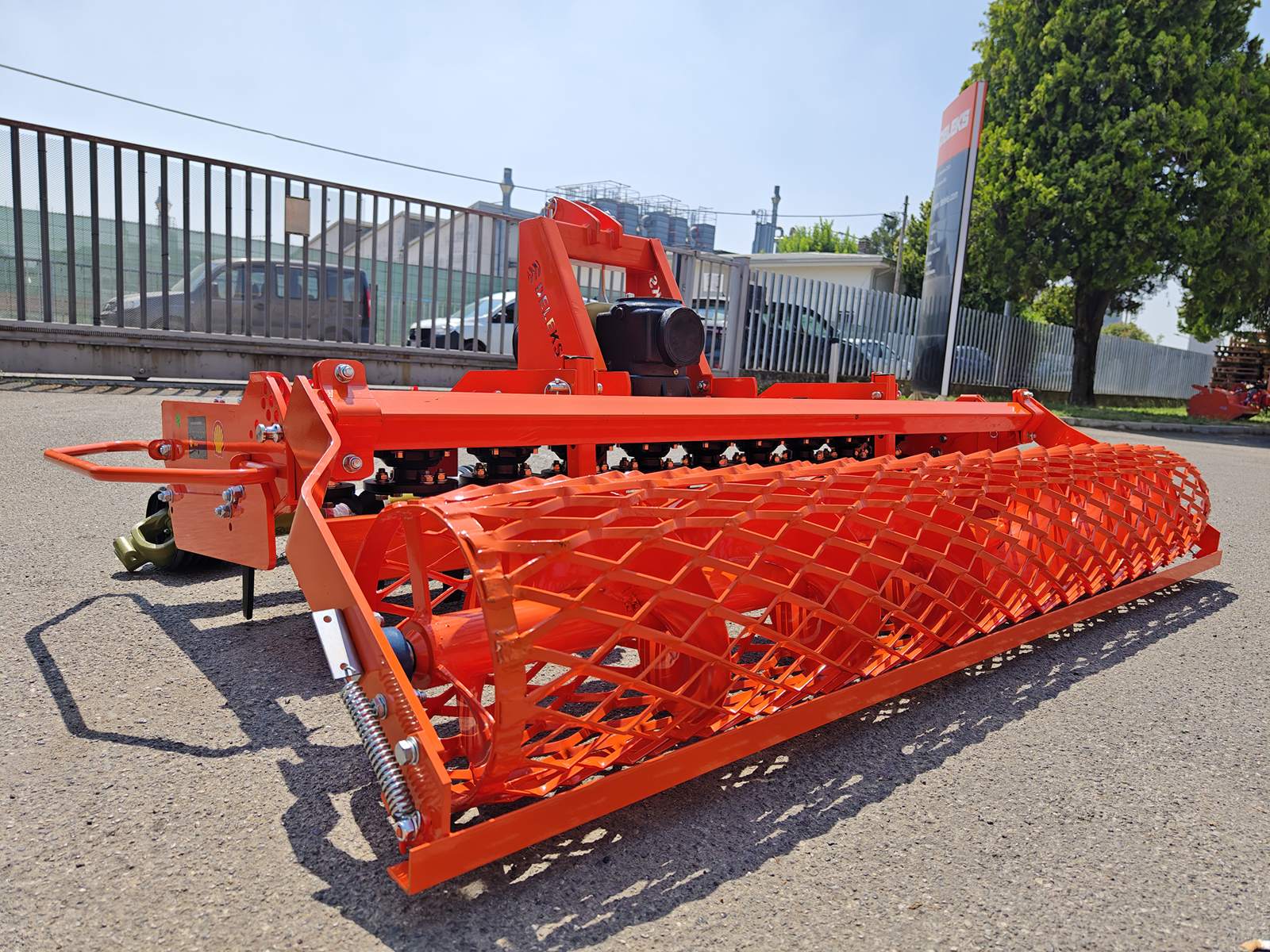

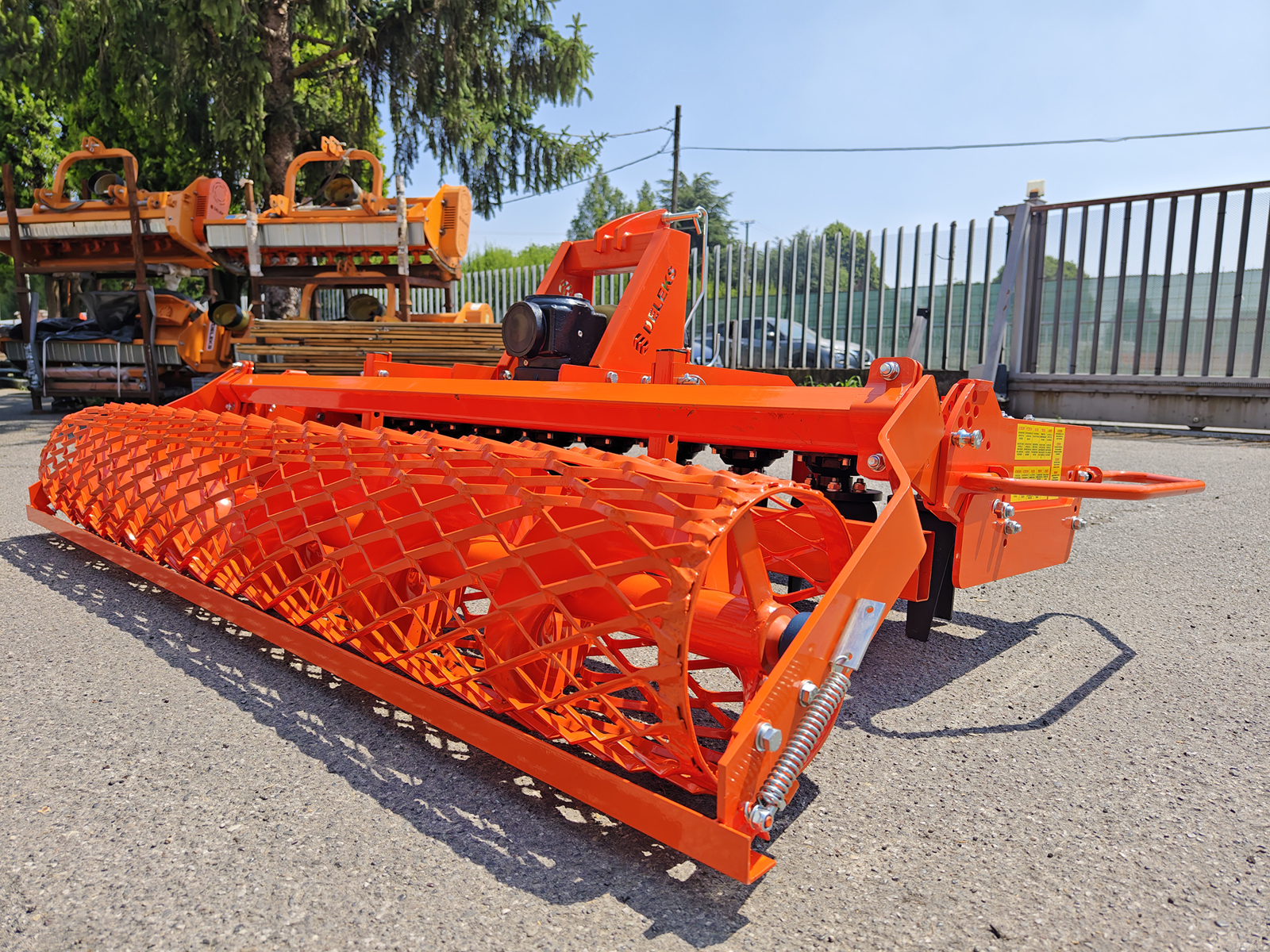

Professional rotary harrow 160 cm for tractor - mesh roller

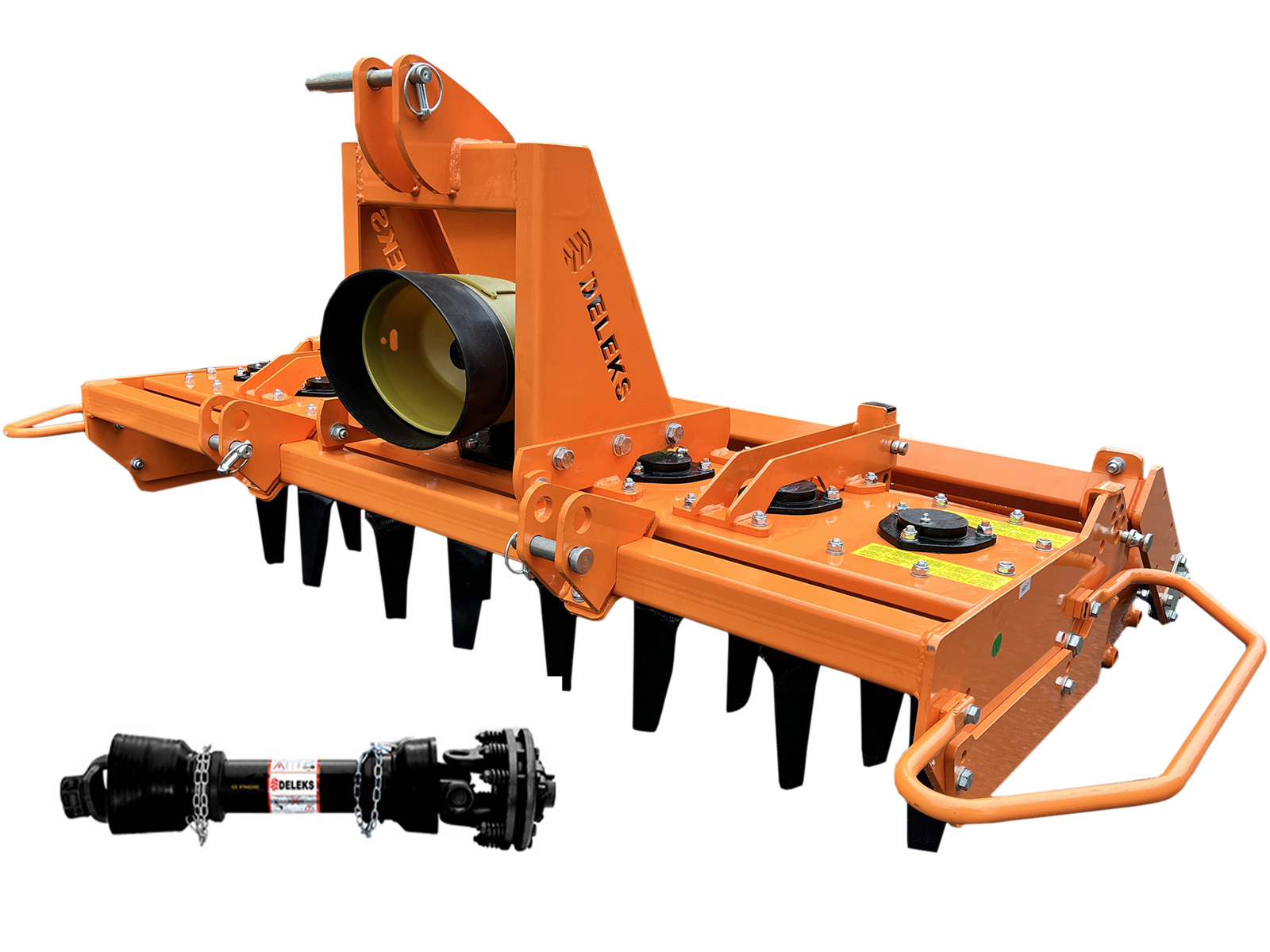

Rotary harrow with 165 cm working width, for tractors from 30 to 50 HP, with rear mesh roller and transmission for 540 rpm PTO.

The KR series features a compact structure and low weight, designed for use with low-power and orchard tractors.

APPLICATION

The KR-160 is designed for soil preparation and refinement on farms and in specialized crops, particularly orchards, vineyards and horticultural crops.

Its compact configuration allows the harrow to be used with tractors of limited size and power, while maintaining an effective working width of 165 cm.

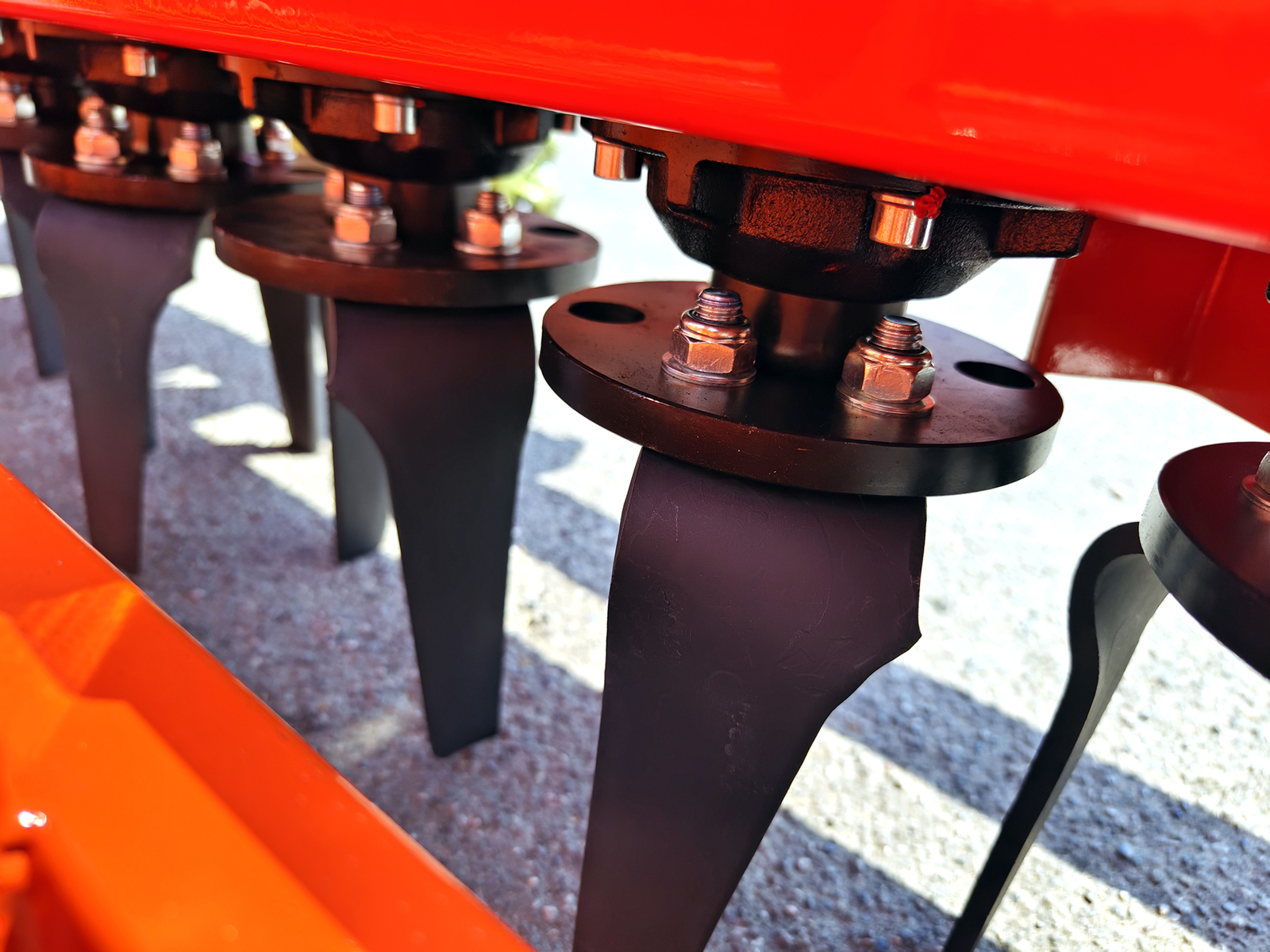

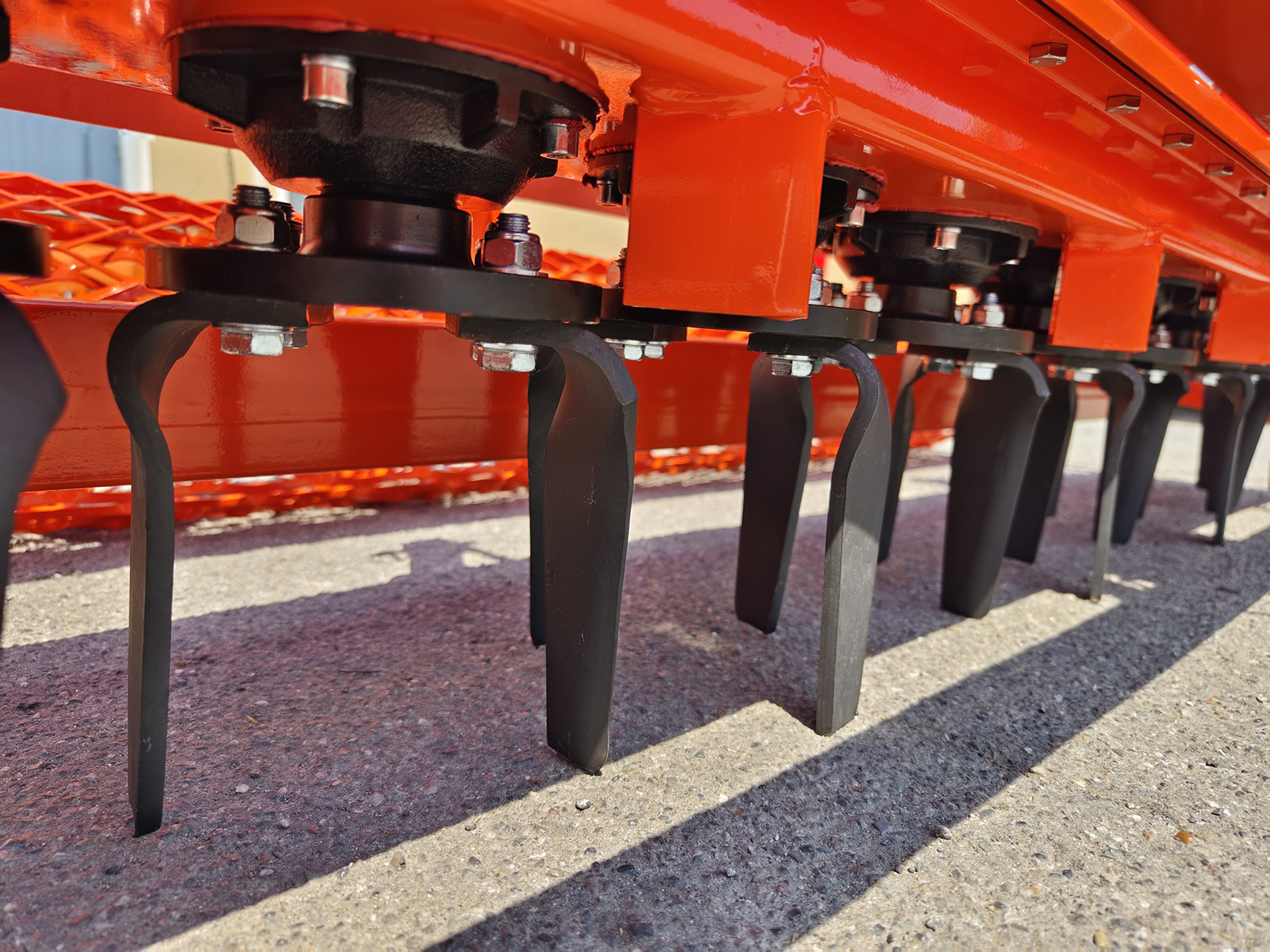

The rotors, each equipped with two blades, work the soil across the entire working width, breaking up clods and providing uniform seedbed preparation.

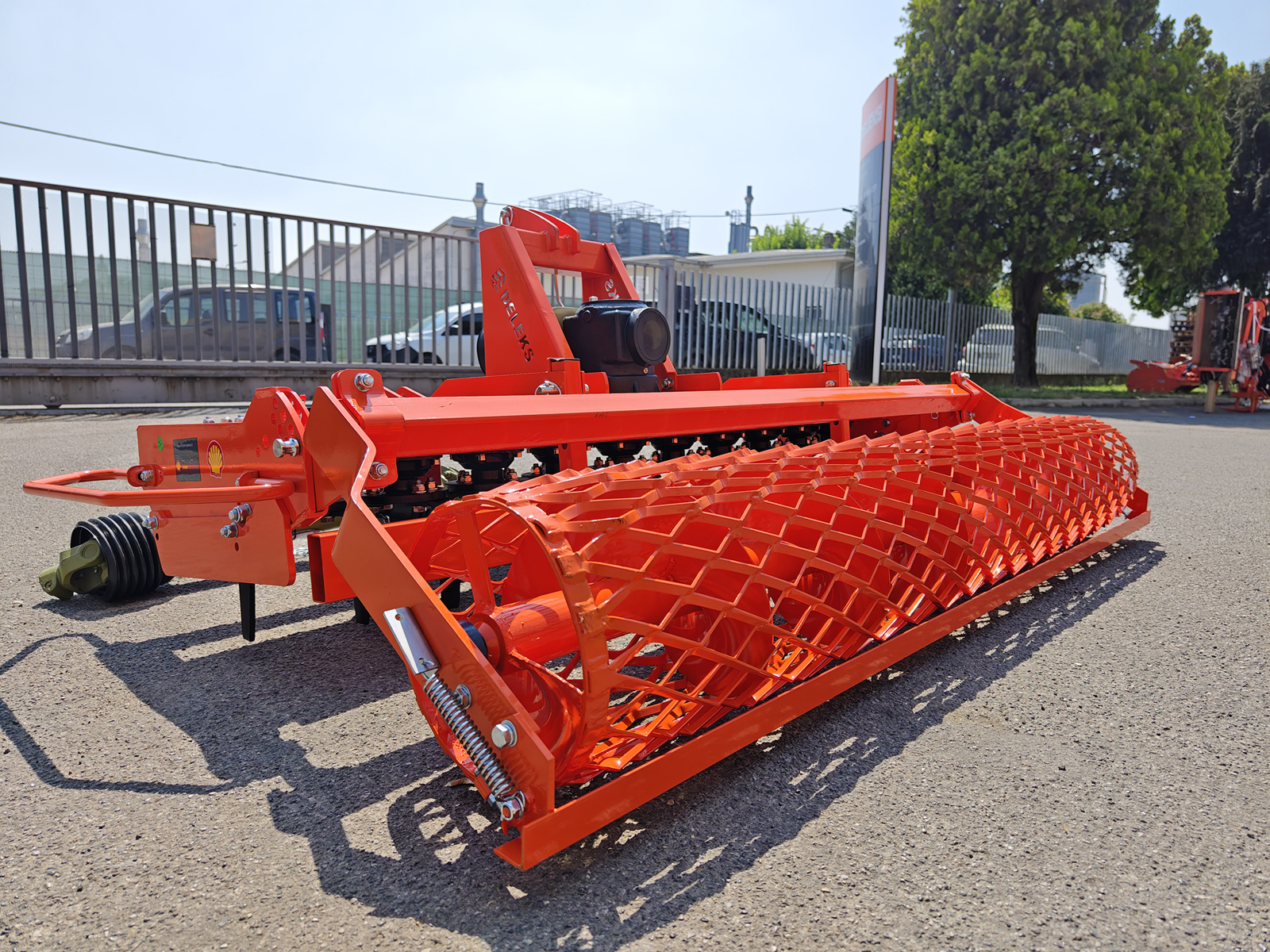

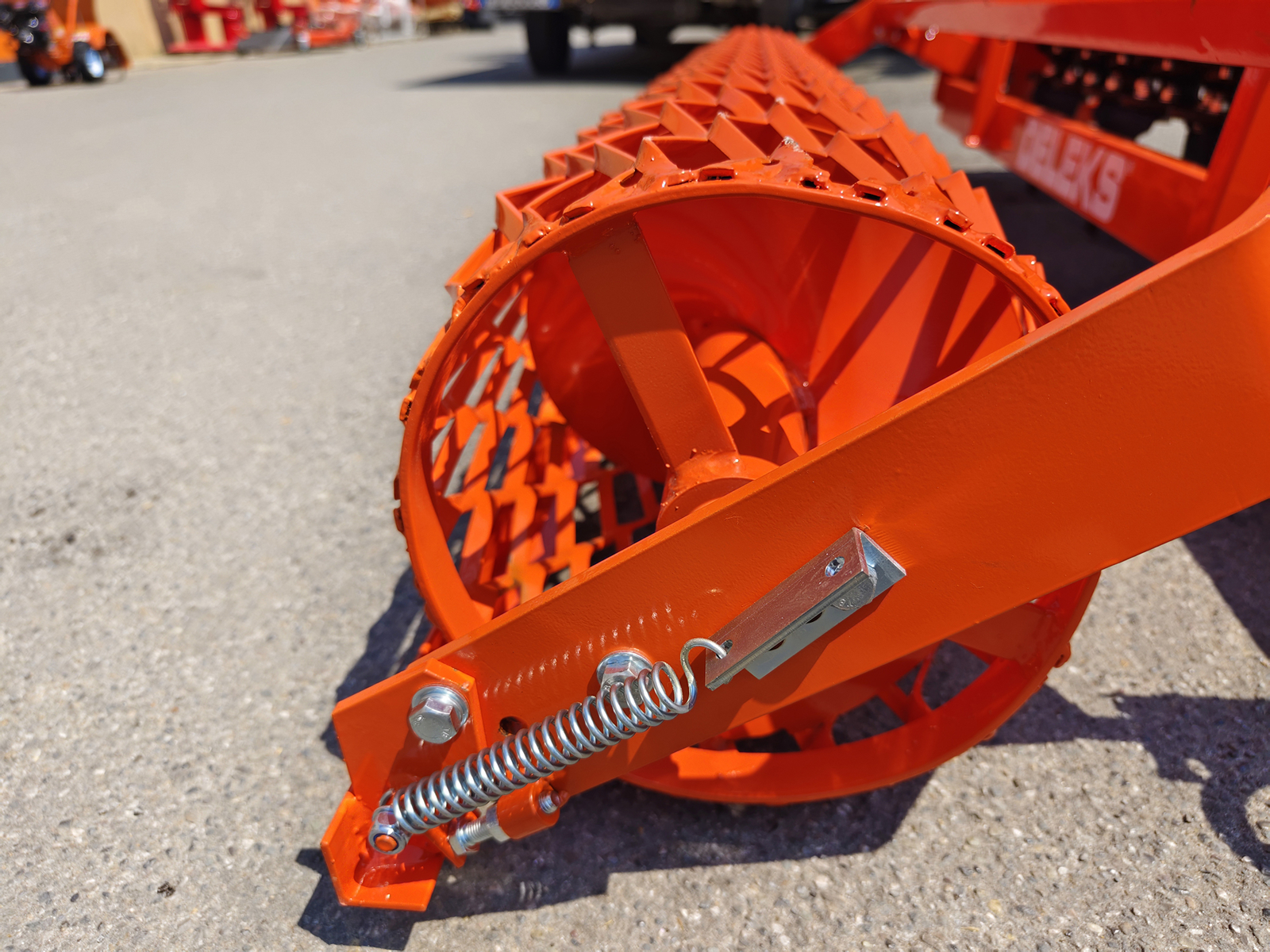

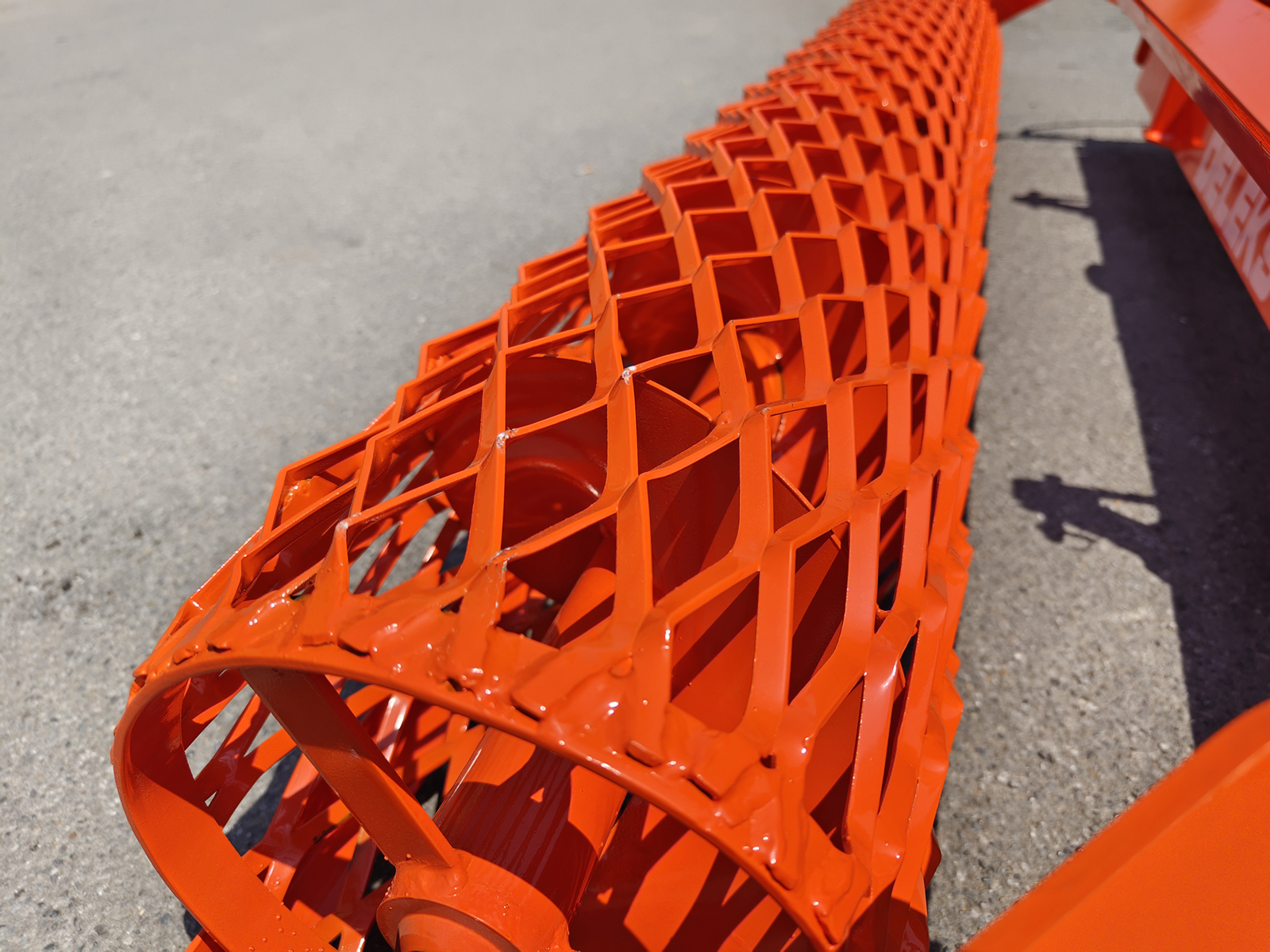

The rear mesh roller contributes to soil levelling and working depth control, while the rear levelling bar helps to regularize the worked surface.

TRANSMISSION AND STRUCTURE

The KR-160 operates with a 540 rpm PTO and is supplied with a PTO shaft equipped with a friction clutch.

The KR series structure has been developed with a focus on compact dimensions and low weight, making it particularly suitable for orchard tractors and low-power tractors.

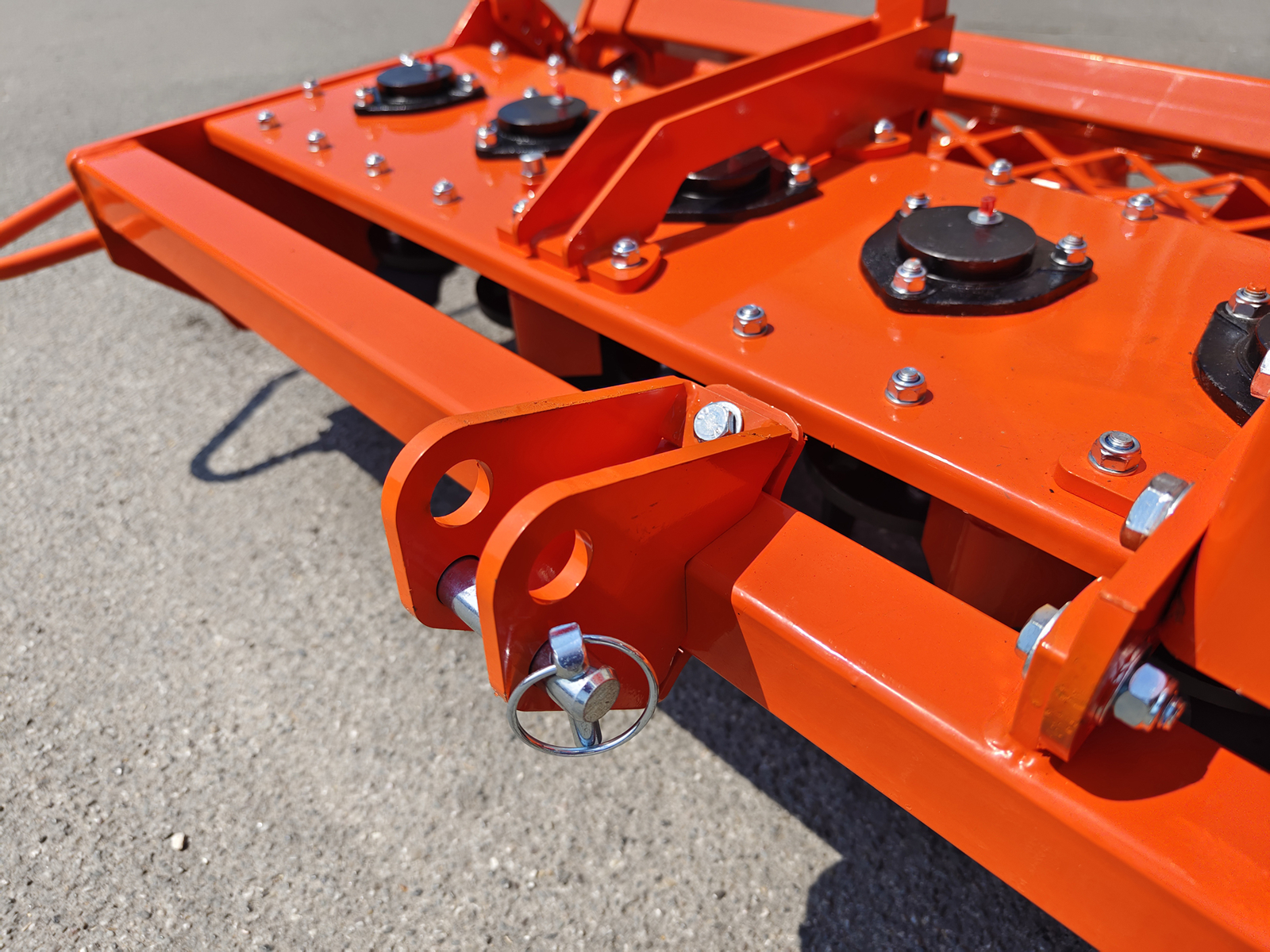

The universal Cat. 1-2 3-point linkage allows connection to the tractor's rear hydraulic lift.

STANDARD EQUIPMENT

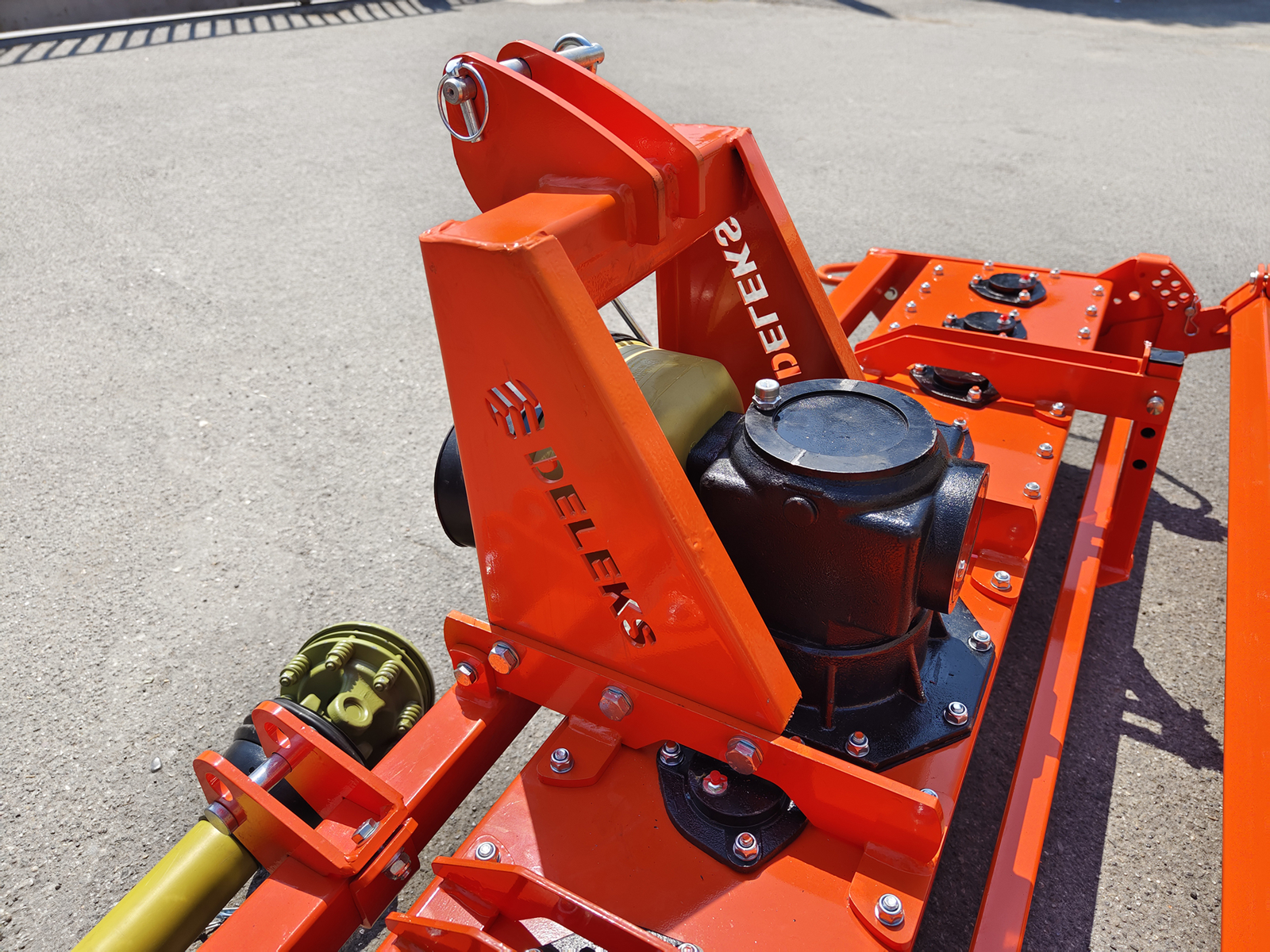

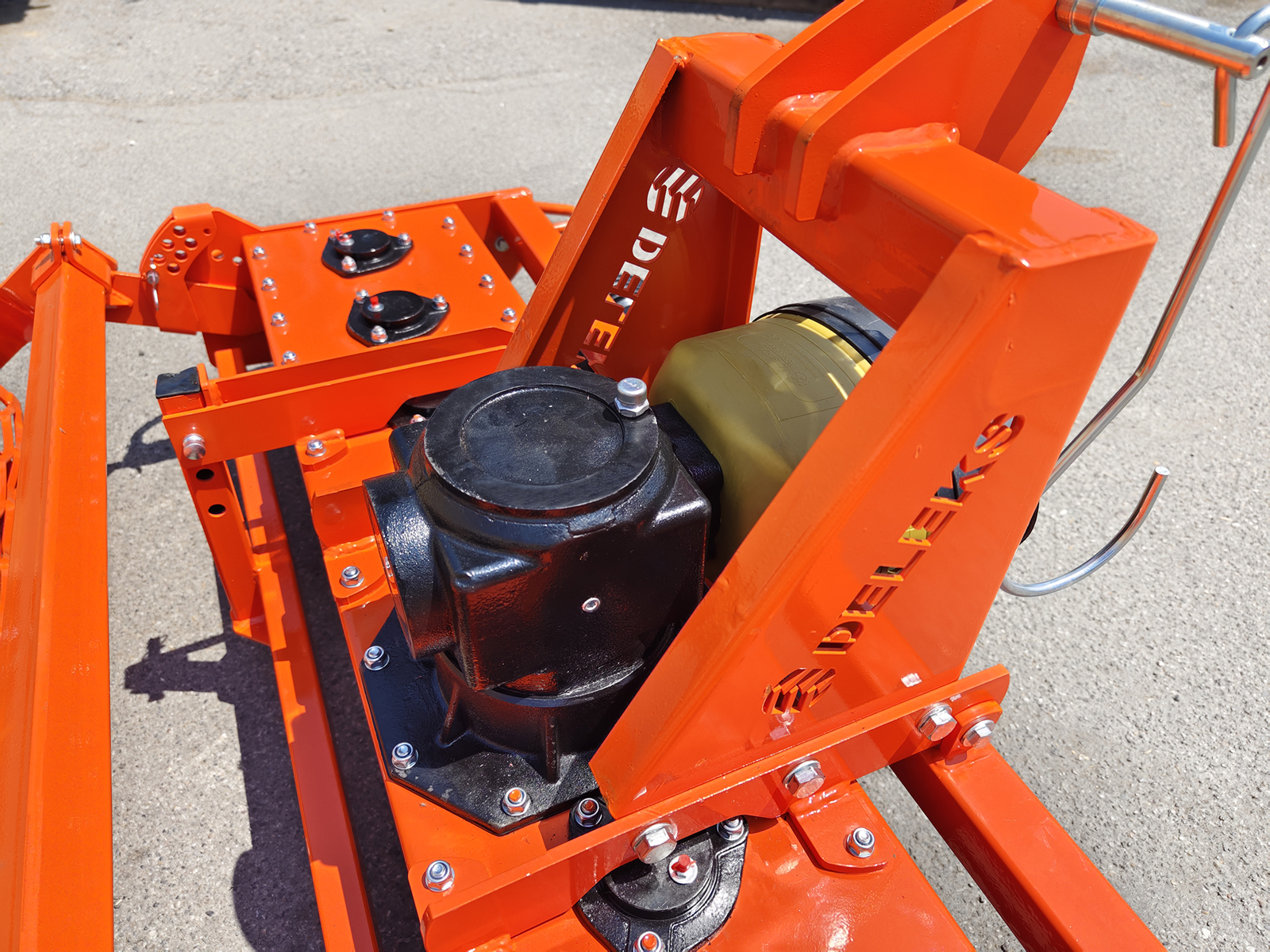

Gearbox for 540 rpm PTO

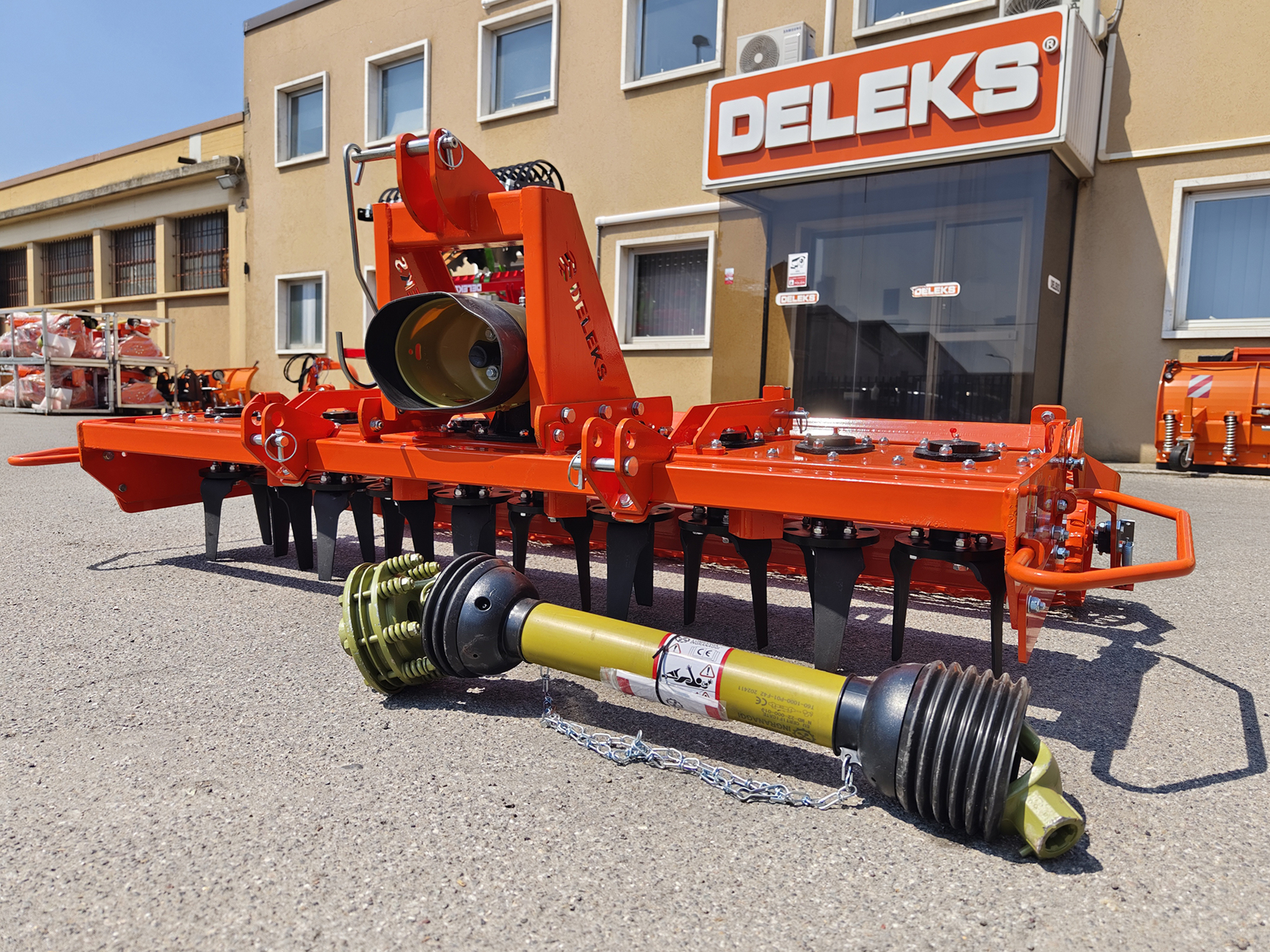

PTO shaft with friction clutch
Universal Cat. 1-2 3-point linkage
Rear mesh roller
2 blades per rotor
Rear levelling bar
CE safety guards

PREPARATION AND SHIPPING

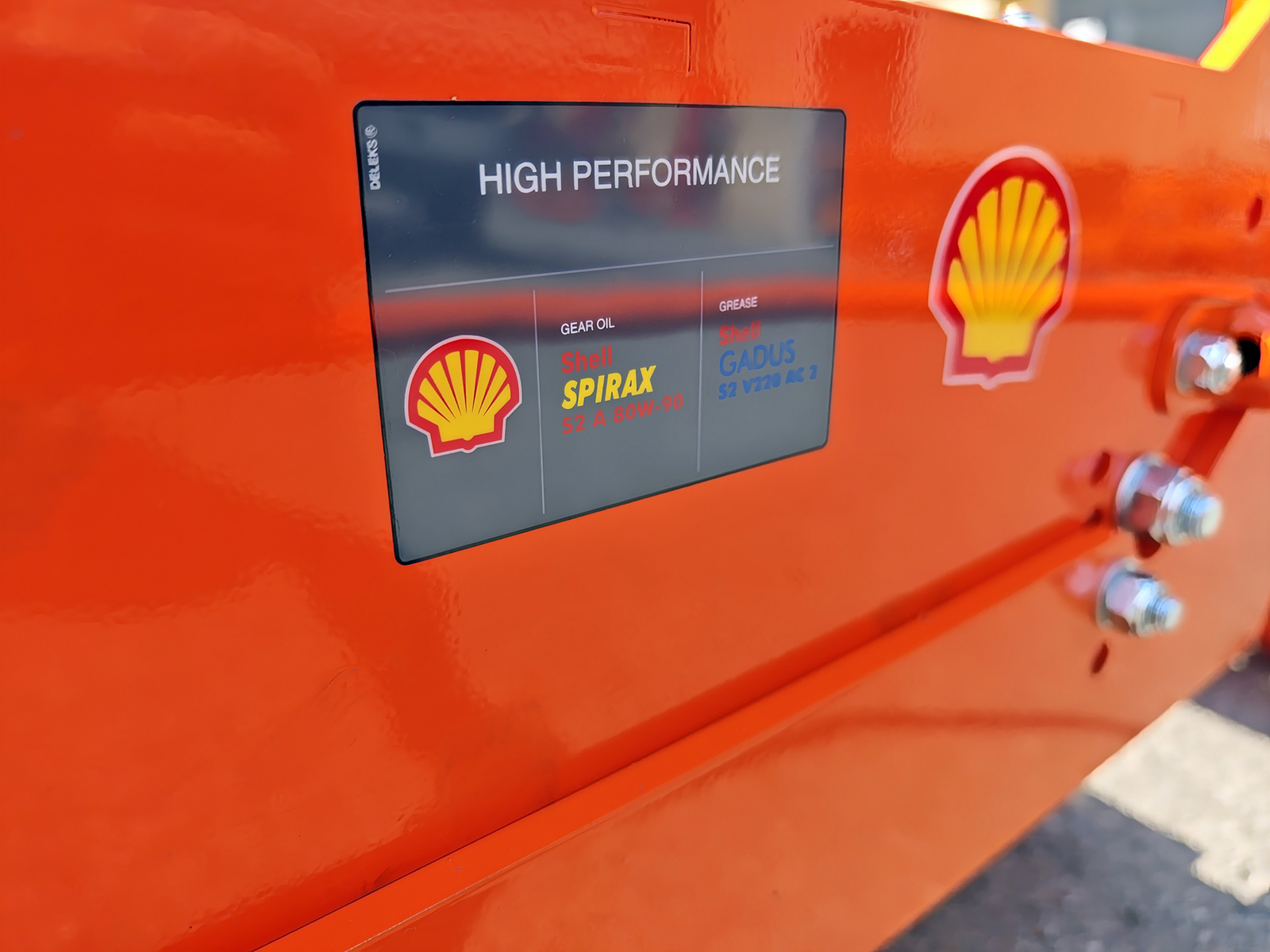

The machine is inspected before shipment, including checks of the main fasteners, the gearbox oil level and the lubrication of the required components.

To optimize space and protect the machine during transport on a pallet, the rear roller is supplied disassembled and must be installed by the customer before use.

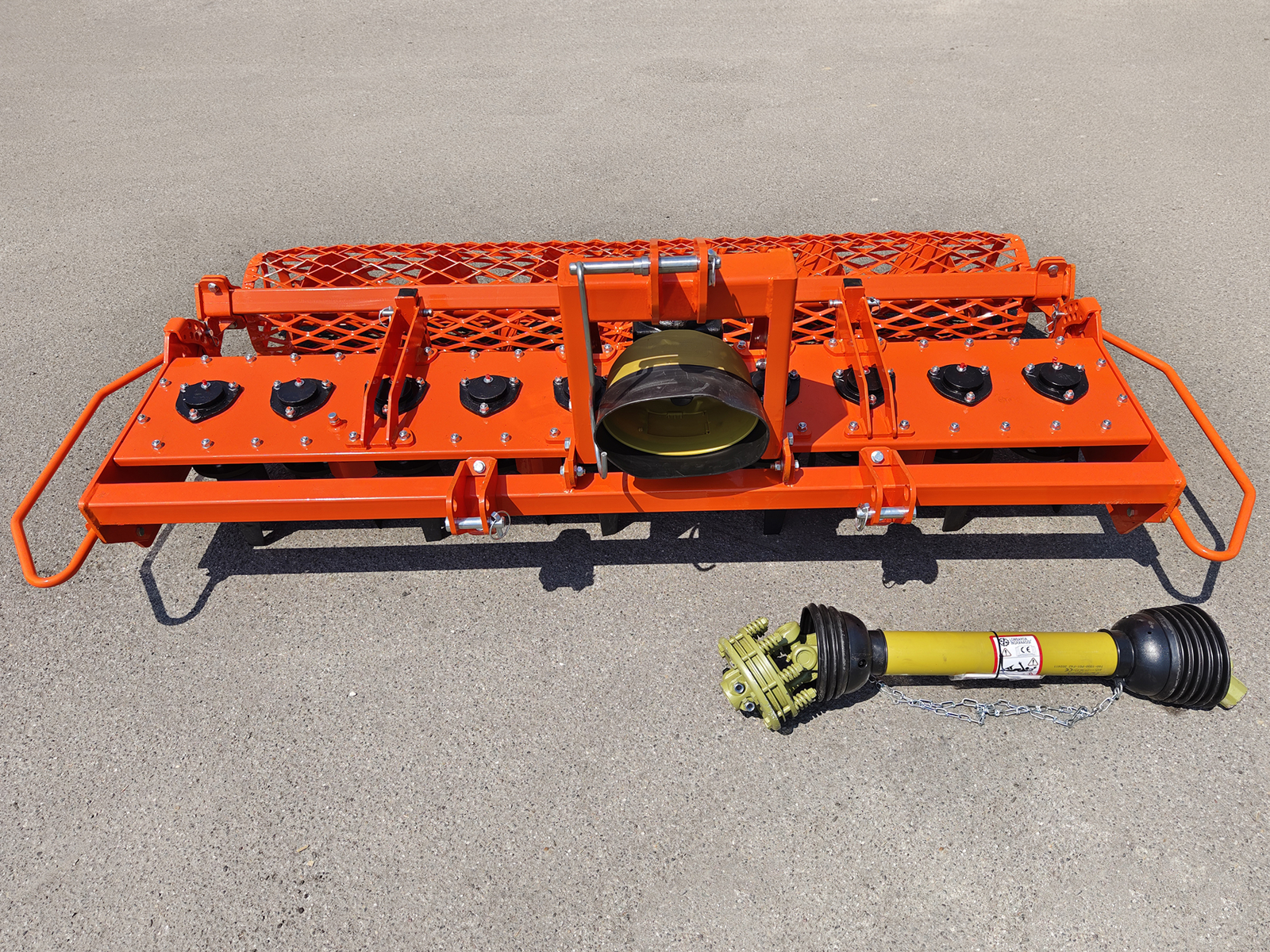

The PTO shaft is included, and the machine is supplied with protective packaging suitable for transport.

TECHNICAL SUPPORT AND SPARE PARTS

DELEKS® provides technical support and original spare parts for routine and extraordinary maintenance of the machine.

Component identification and spare parts requests are handled directly by our after-sales service, facilitating the correct identification of the required parts.

WARRANTY

The product is covered by the DELEKS® warranty according to the conditions applicable to the customer type and country of sale.

Warranty assistance is handled directly by the DELEKS® after-sales service, including technical diagnosis and supply of the required spare parts in accordance with the warranty conditions.
