TR-125MR 25hp 4WD compact tractor, 9+3 gearbox, EU road homologation, radial tyres

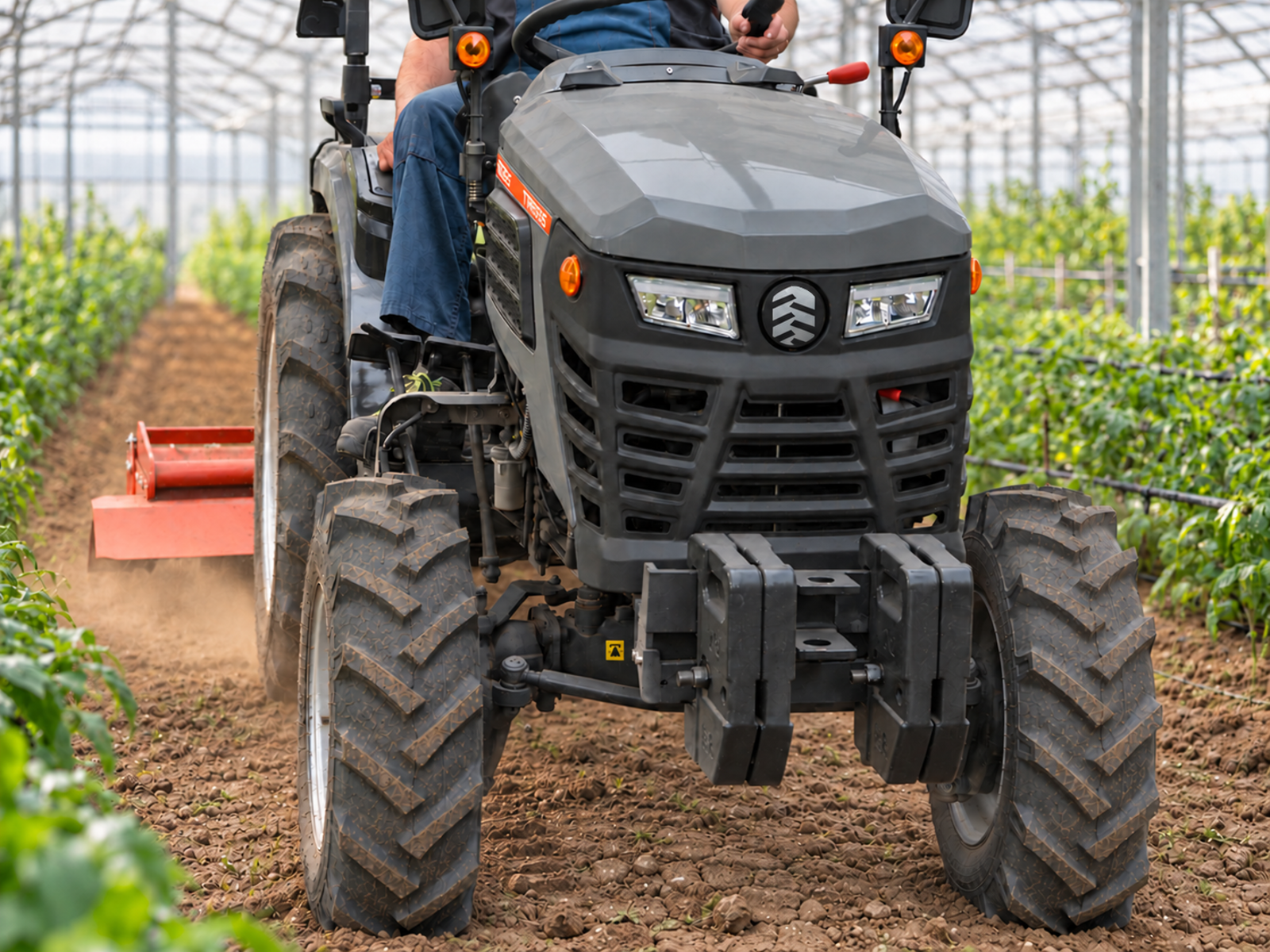

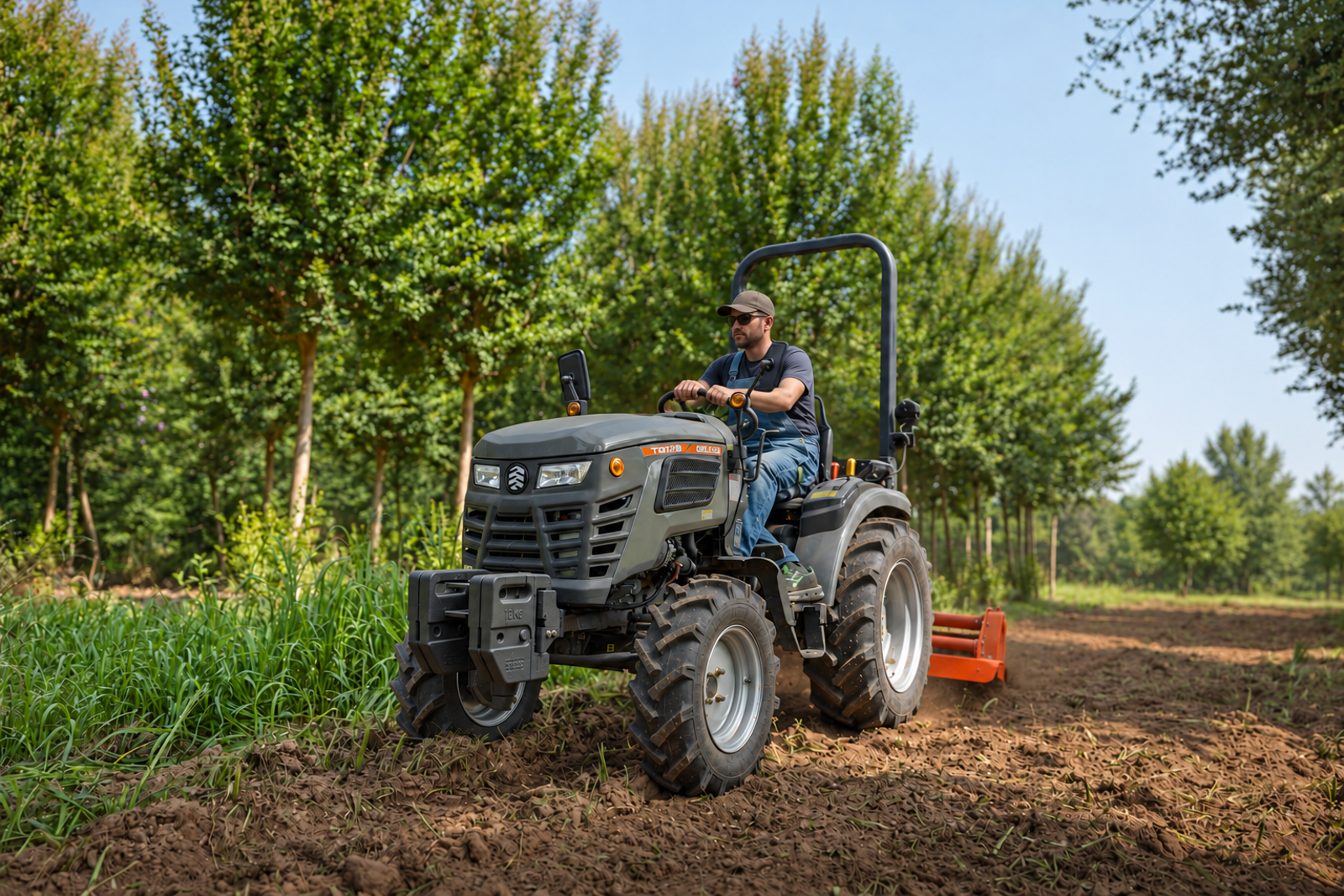

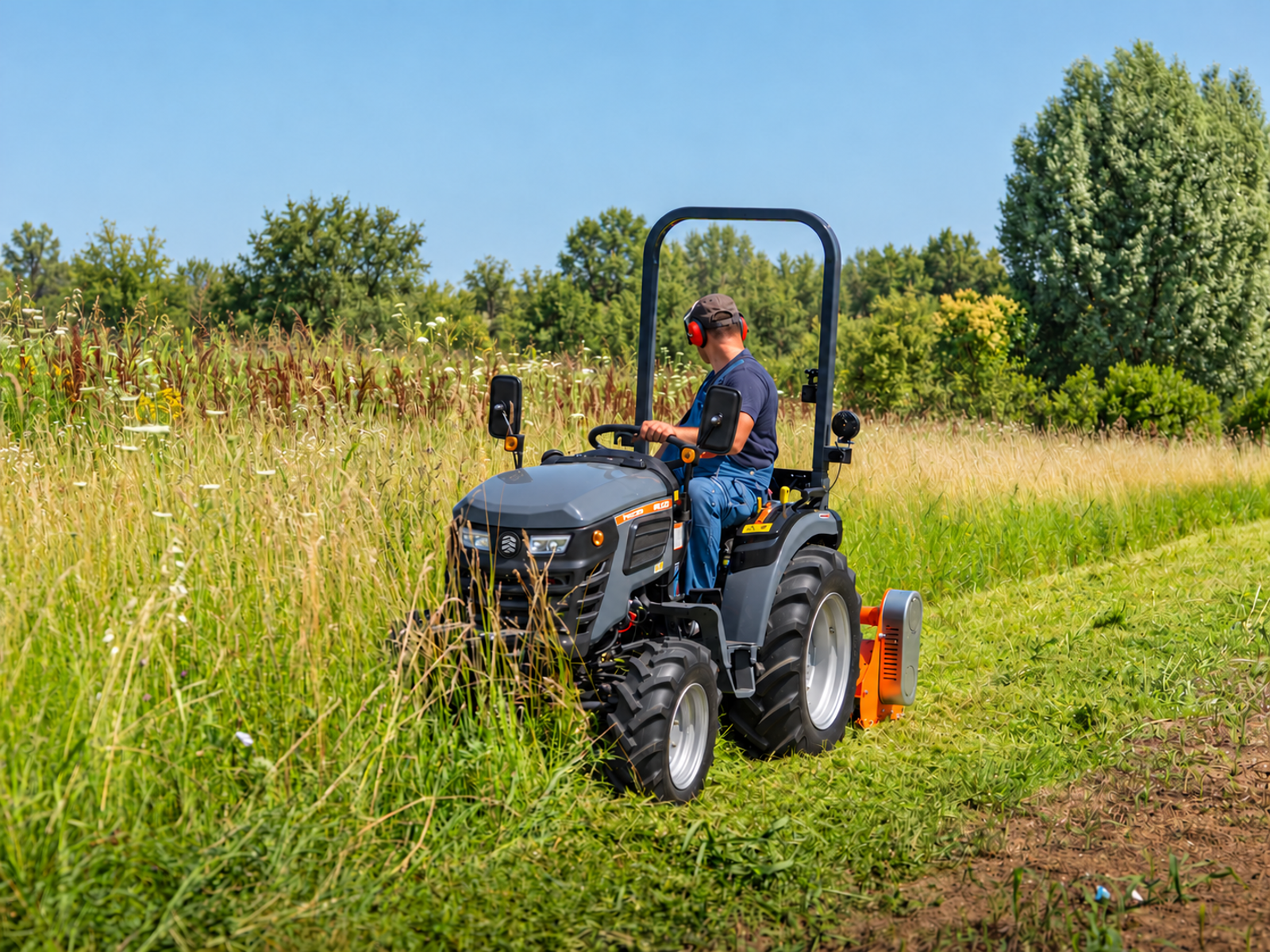

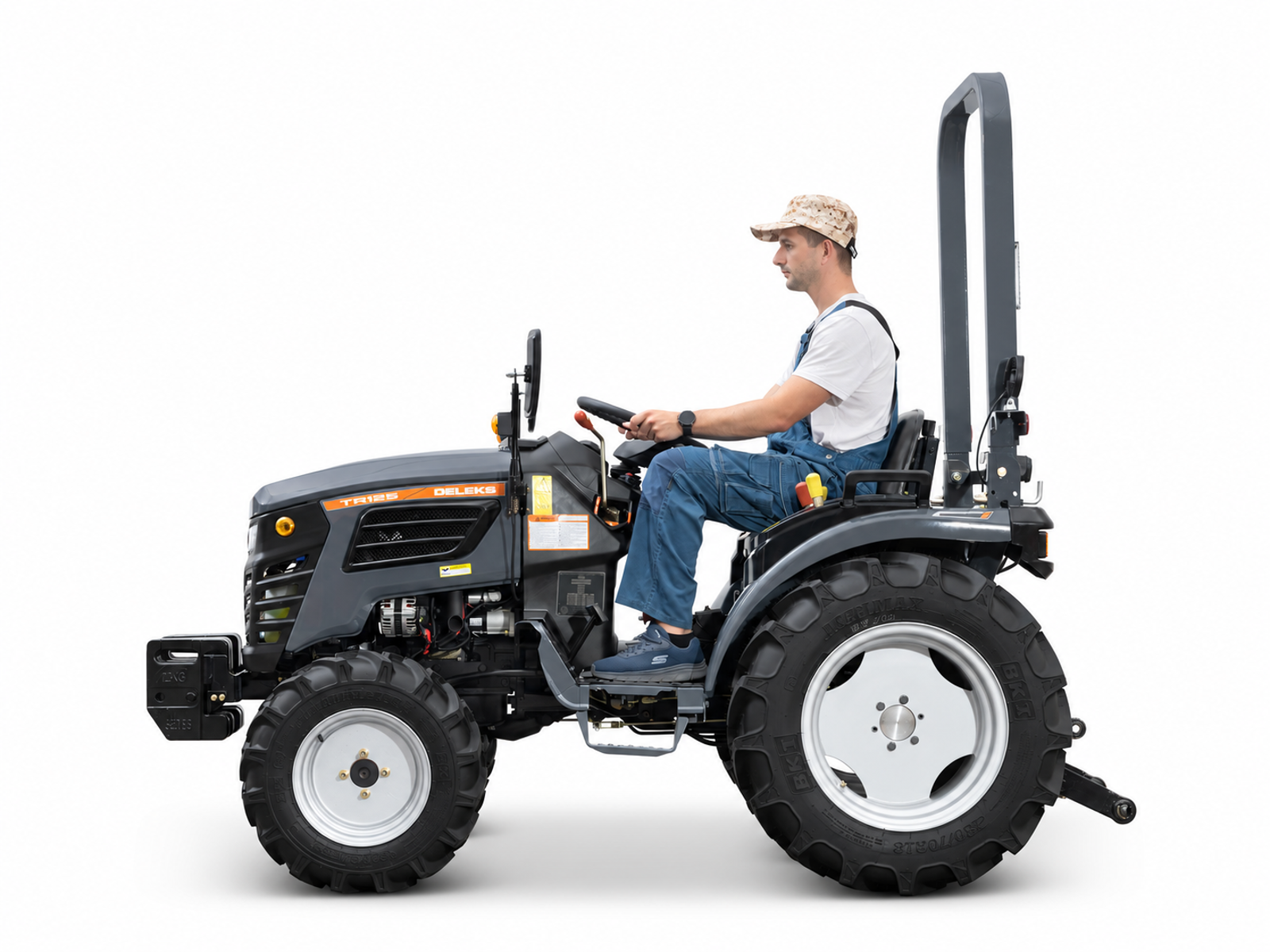

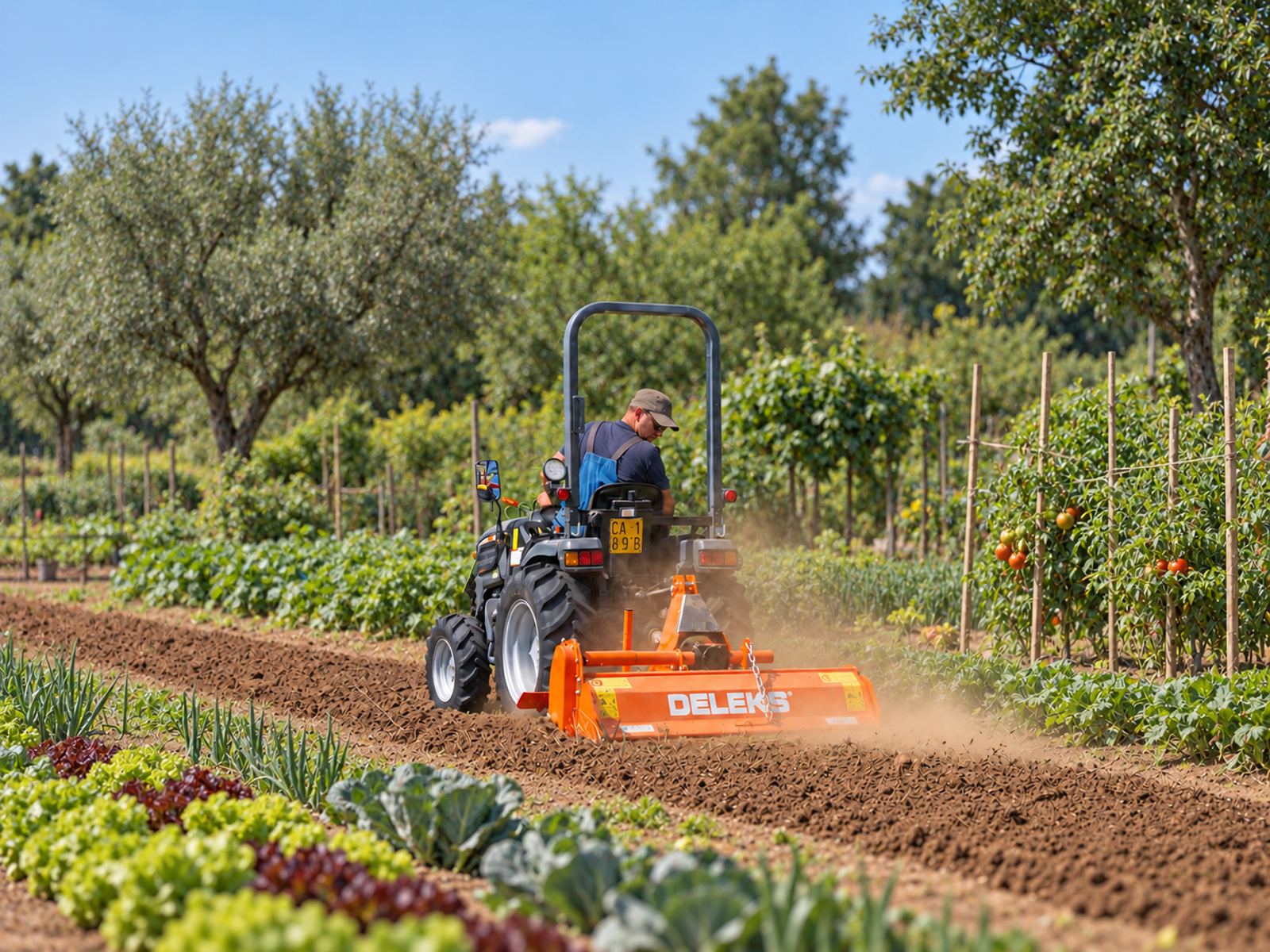

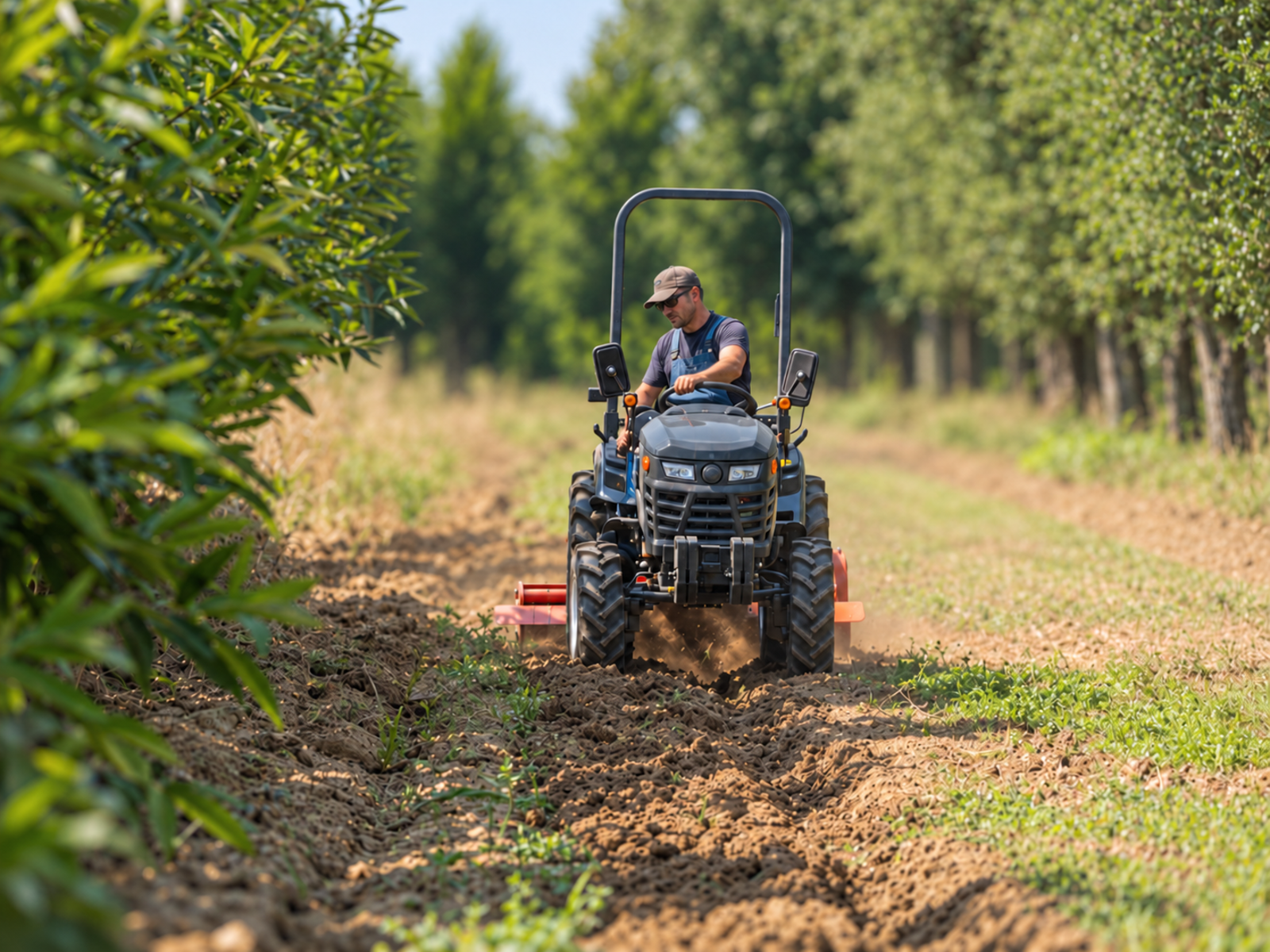

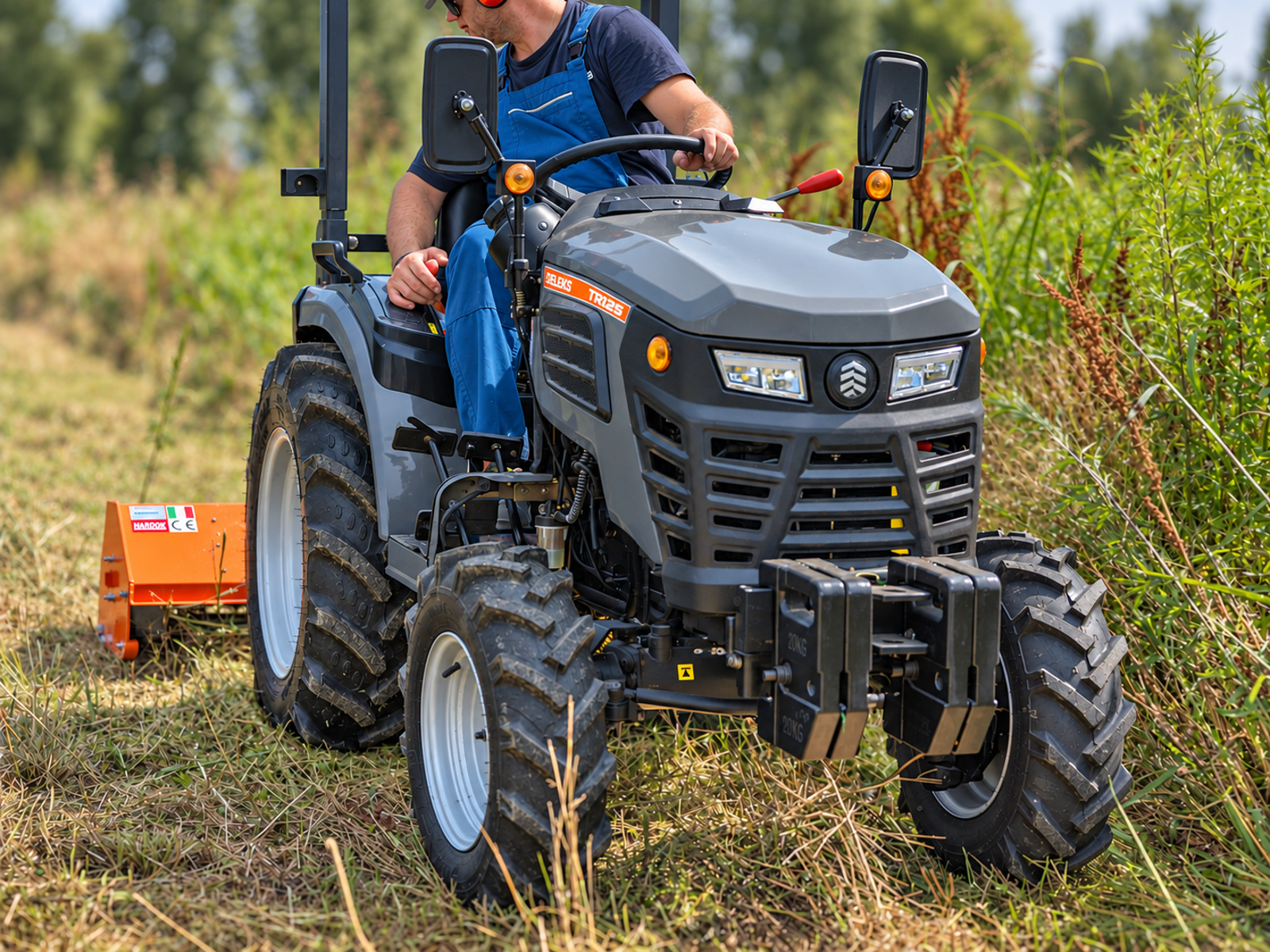

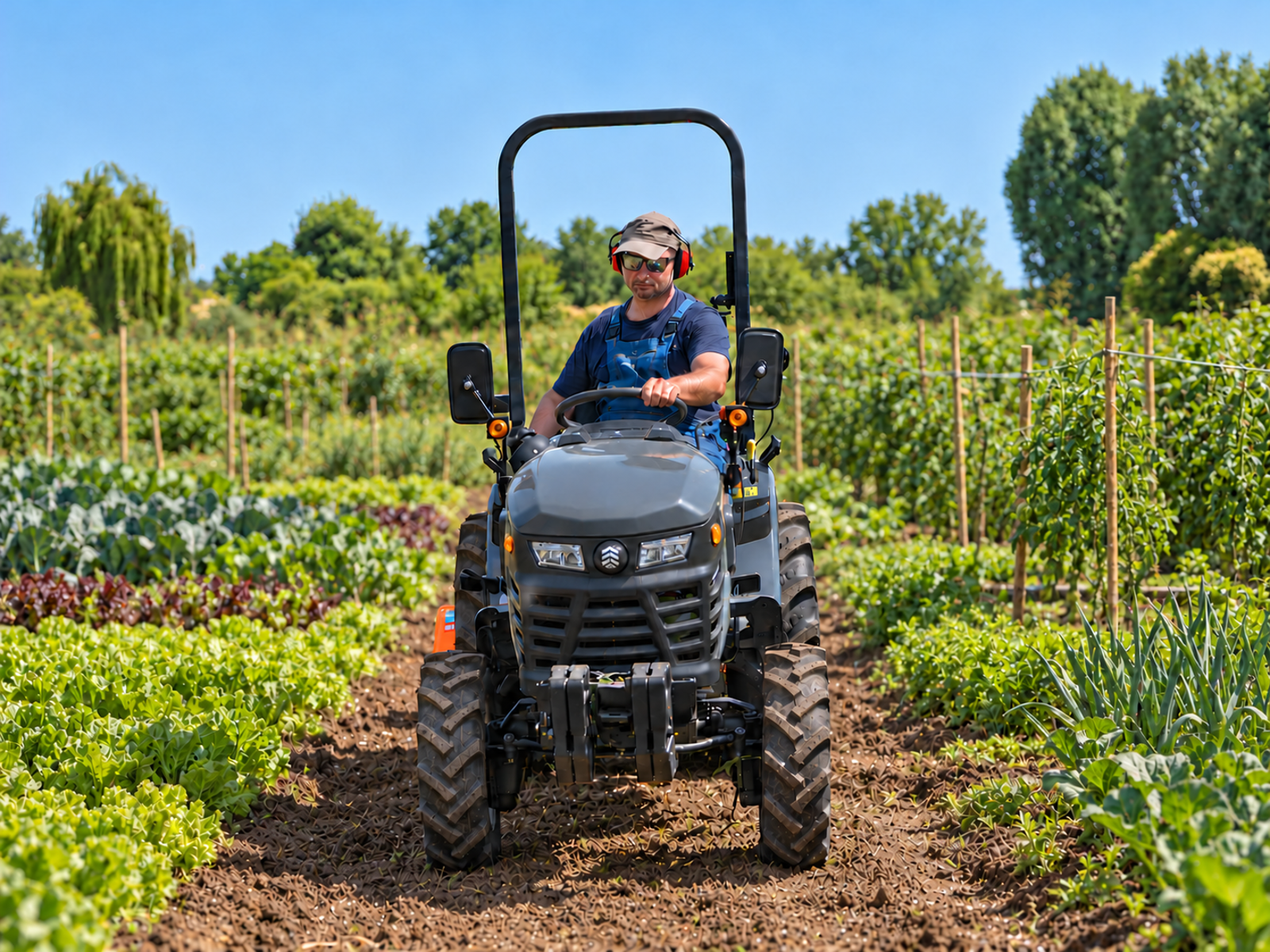

The TR-125MR is a 25hp 4WD compact tractor with a three-cylinder Stage V diesel engine, a 9 forward and 3 reverse gearbox and EU type-approval for use on the road. At just 97 cm (38 in) wide it slips between the rows of a vineyard or orchard, works in polytunnels, on the veg plot and on grounds maintenance, and takes the full range of DELEKS® implements for tillage, mowing, transport and more. The tractor comes with a 3-year warranty and the engine with a 5-year warranty.

At a glance

• EU type-approval, category T2a: registered for the road in every EU country, by private owners or businesses, with the certificate of conformity supplied by DELEKS®.
• XY377-C diesel engine, 1,132 cc, 18.5 kW (25hp), liquid-cooled, Stage V: low fuel consumption, strong torque and a 5-year warranty.
• Four-wheel drive with differential lock and hydraulic power steering.
• 9+3 gearbox in three ranges, from 0.7 to 17.7 km/h (0.4 to 11 mph).
• Automatic front-axle disengagement on turns: beyond a steering angle set by the operator, a clutch frees the front wheels and the tractor turns in a 1.2 m (4 ft) radius, keeping full traction in the field.

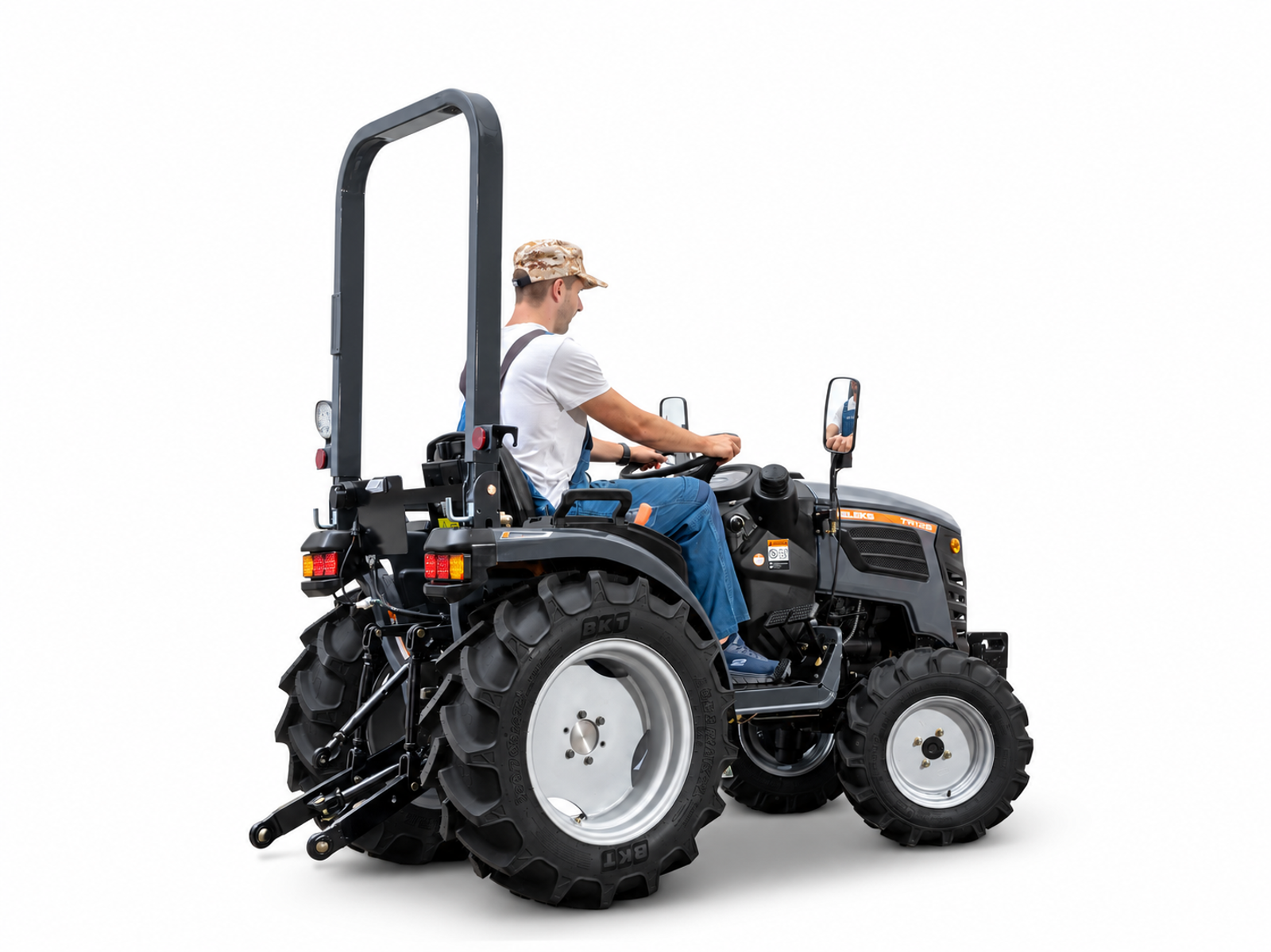

• Approved rear roll bar (ROPS) as standard.
• Hydraulic lift with category 1 three-point linkage, 540 and 1,000 rpm PTO and two rear hydraulic outlets as standard, two more available as an option.
• Radial agricultural tyres as standard, turf tyres available as an option.
• Warranty: 3 years on the tractor, 5 years on the engine.

Engine

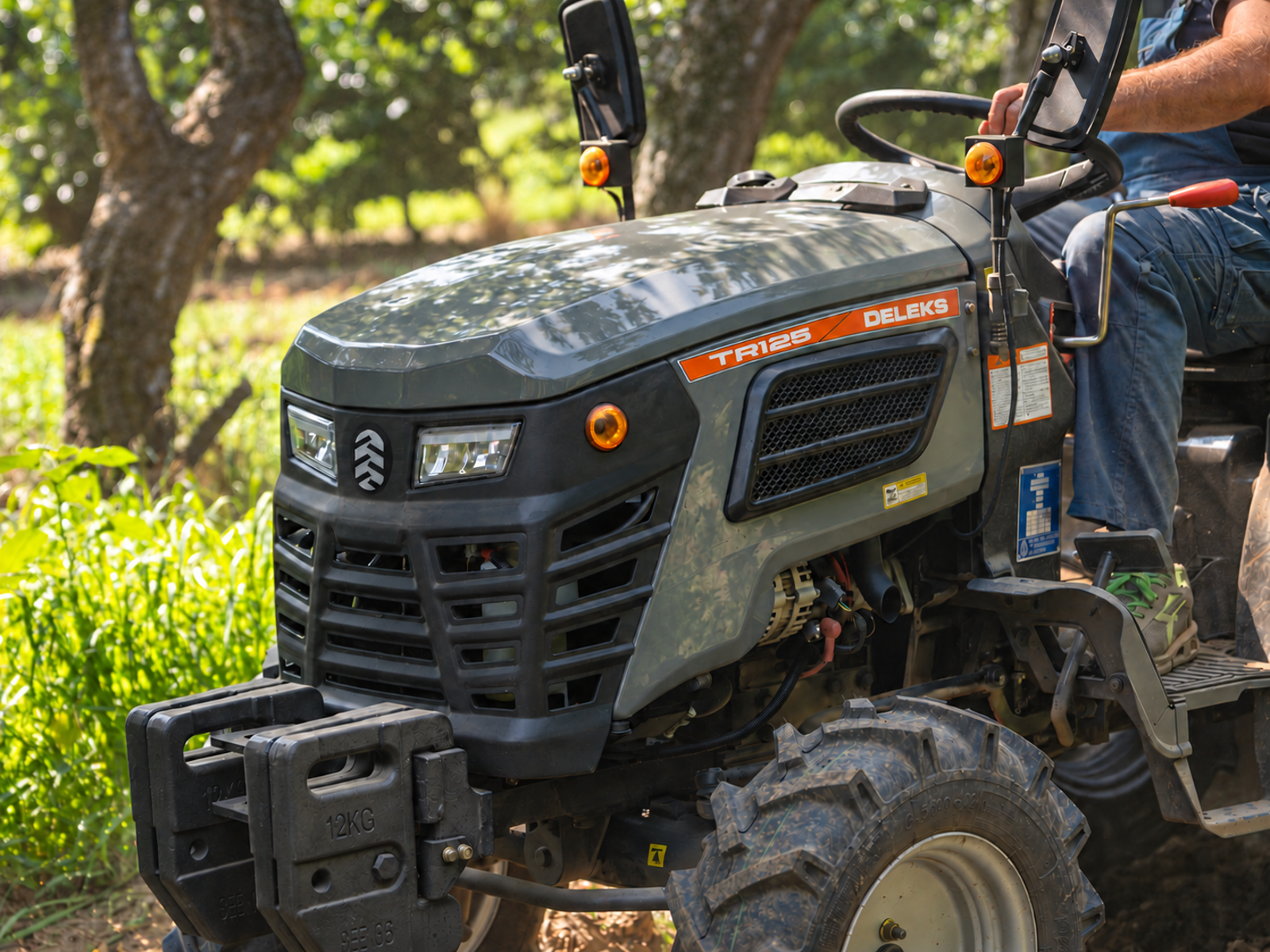

The XY377-C in-line three-cylinder delivers 18.5 kW at 3,000 rpm, liquid-cooled and Stage V approved, the latest European emissions standard. It is an engine that pulls with plenty of torque low down and keeps fuel consumption in check, and DELEKS® backs it with a 5-year warranty. The hand throttle holds a steady engine speed while you work; the pedal is for driving on the road.

Transmission and driving

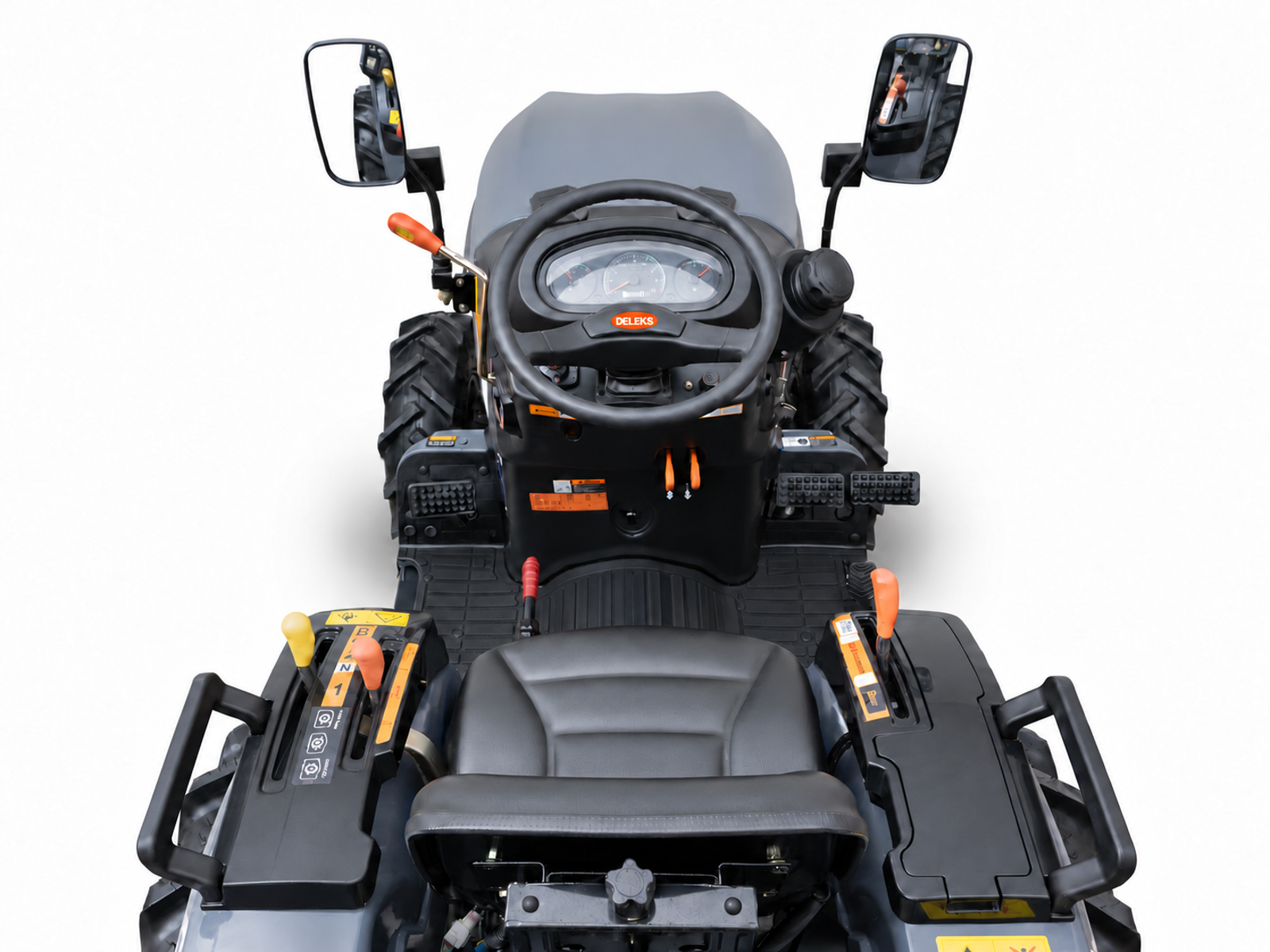

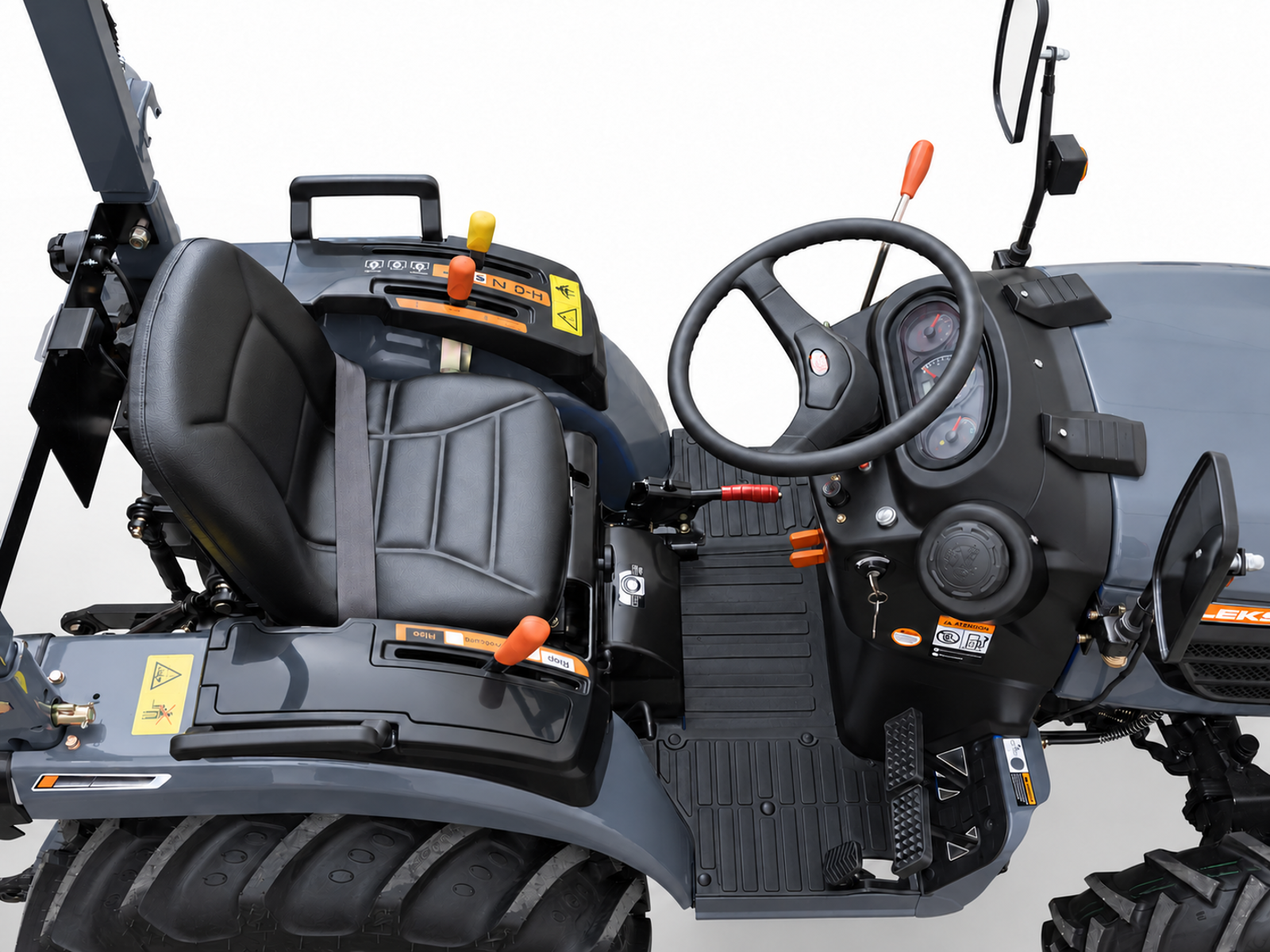

Four-wheel drive with a differential lock and hydraulic power steering make the tractor easy to drive even on loose ground and slopes. The gearbox has 3 speeds in three ranges, low, medium and high, for 9 forward and 3 reverse gears: from 0.7 km/h for rotavating to 17.7 km/h (11 mph) on the road. On turns, once you pass a steering angle you set yourself, a clutch automatically disengages the front-wheel drive: the front wheels run free, the turning radius drops from 1.7 m to 1.2 m (5.6 ft to 4 ft) and you turn at the end of the row without shunting, with full traction and performance in the field. Straighten the wheel and four-wheel drive re-engages on its own. The operator platform is roomy, with the gear levers and controls at the sides and nothing between your feet; the seat adjusts fore and aft and in height, and the dashboard has a rev counter and hour meter.

Hydraulics and implements

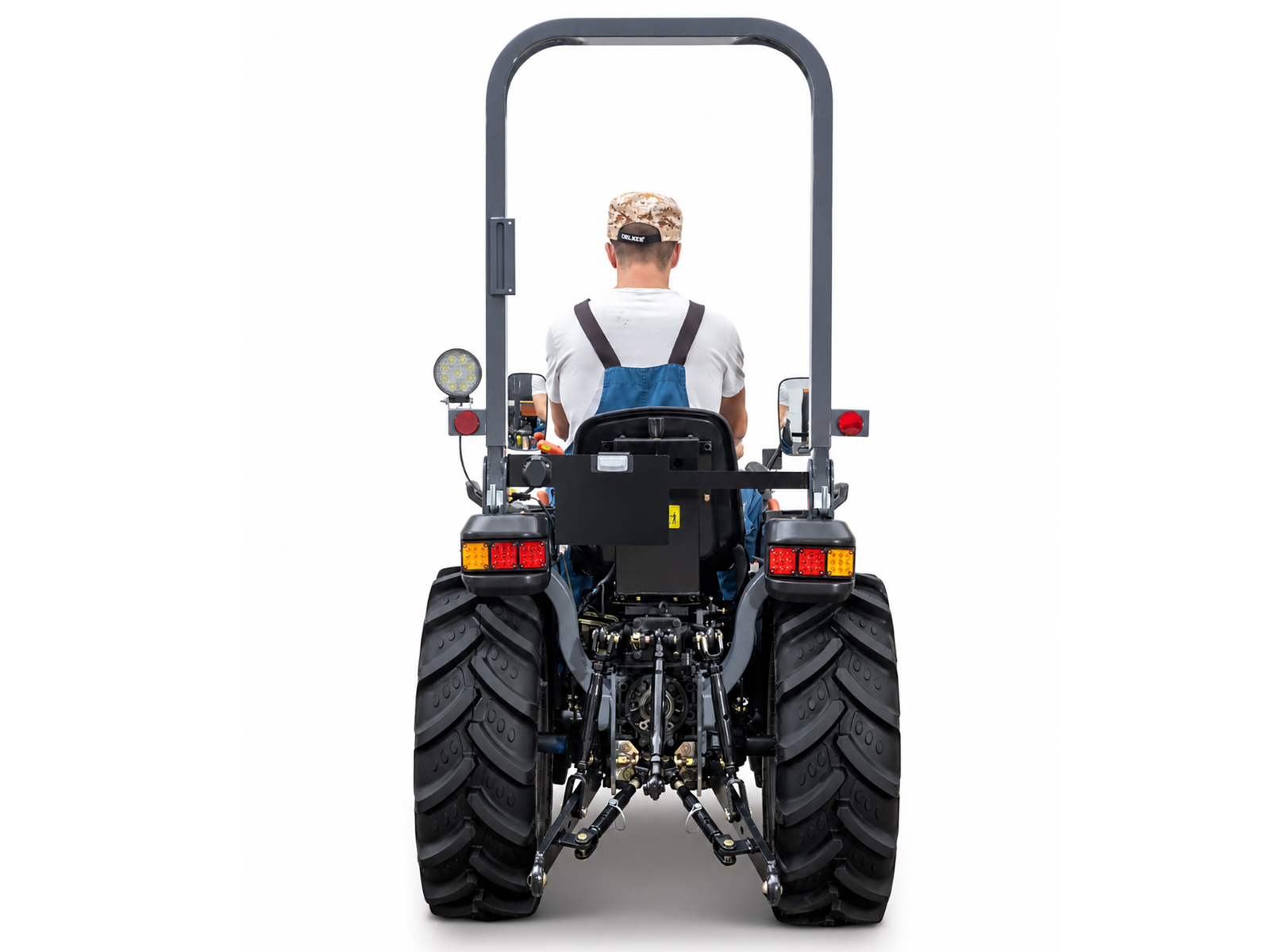

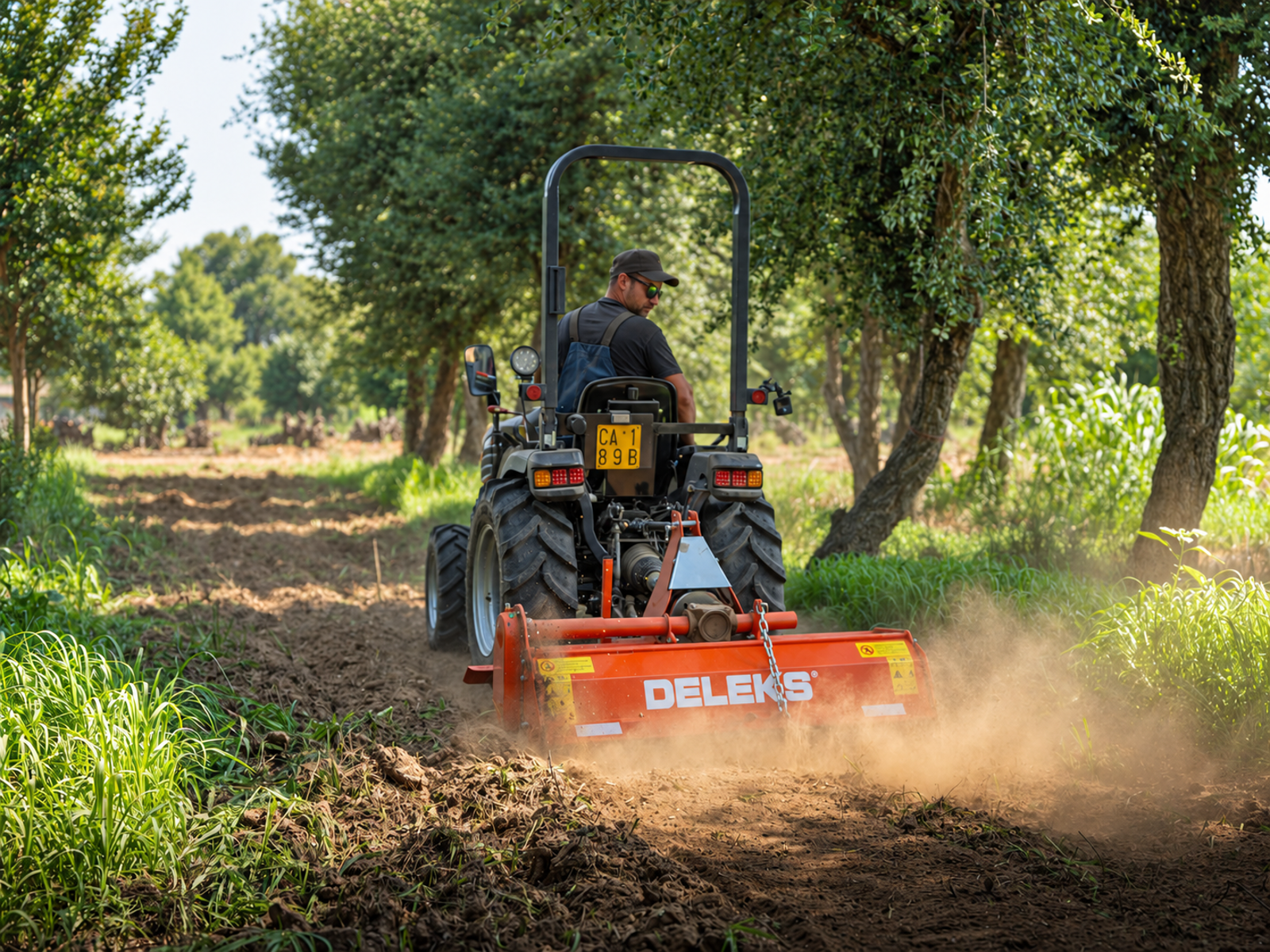

The hydraulic lift has a category 1 three-point linkage with lowering-speed control, and the rear PTO runs at 540 and 1,000 rpm. The two rear hydraulic outlets fitted as standard power backhoes, cranes and implements with hydraulic rams; for implements that need four, the extra pair is available as an option.

Compatible DELEKS® implements
DFL95–115 rotary tillers, DFU100 stone burier, KR120 power harrow, APE100–120 and LINCE100–120 flail mowers, DM120–150 finishing mowers, DP16, DP18 and DRP25 ploughs, DK1200 and DK1300 wood chippers, BUCKET100–120 rear tipping buckets, DR30 ripper, DE120/5 cultivator, DPT120 potato digger, DL110 and DL130 levelling blades, RM14T3 farm trailer, D300 and D700 pallet forks, EL200 hydraulic crane.

On the road
The EU whole-vehicle type-approval, category T2a, covers dipped headlamps, indicators, hazard lights, rear roll bar and tow hitch: the tractor can travel on the road at up to 17.7 km/h (11 mph) and tow trailers of up to 700 kg (1,540 lb) unbraked or 1,000 kg (2,200 lb) with overrun brakes. DELEKS® supplies the certificate of conformity you need to register it in your country.

Technical data

• Power: 18.5 kW (25hp) at 3,000 rpm
• Engine: XY377-C diesel, 3 cylinders in line, 1,132 cc, liquid-cooled, Stage V
• Gearbox: 9 forward + 3 reverse, three ranges
• Top speed: 17.7 km/h (11 mph)
• Drive: 4WD with differential lock
• Steering: hydraulic power steering; automatic front-drive disengagement on turns, adjustable angle
• Rear PTO: 540/1,000 rpm, 16.3 kW at the PTO
• Lift: category 1 three-point linkage
• Rear hydraulic outlets: 2 as standard, 4 as an option
• Weight in running order: 700 kg (1,540 lb)
• Maximum permissible mass: 824 kg (1,815 lb)
• Towing: 700 kg (1,540 lb) unbraked, 1,000 kg (2,200 lb) with overrun brakes
• Dimensions: 2,550 × 970 × 1,807 mm (100 × 38 × 71 in)
• Wheelbase: 1,320 mm (52 in); ground clearance: 285 mm (11 in)
• Track: 770 mm (30 in), adjustable from 960 to 1,200 mm (38 to 47 in)
• Turning radius: 1.7 m (5.6 ft); 1.2 m (4 ft) with front drive disengaged
• Radial tyres: 5-12 front, 8-16 rear
• Fuel tank: 13 litres (2.9 gal)
• Approved rear roll bar
• Type-approval: EU 167/2013, category T2a

Delivery
Transport is included in the price.

Frequently asked questions
What is the difference between EU and national type-approval?
EU whole-vehicle type-approval is valid in every EU country: with the certificate of conformity the tractor is registered without further testing.

Will it work in a vineyard with narrow rows?
Yes: it is 97 cm (38 in) wide on the standard track, and with the front drive disengaged on turns it turns in a 1.2 m (4 ft) radius.

Which implements can it drive?
Mounted implements on a category 1 linkage with a 540 or 1,000 rpm PTO, up to 16.3 kW, plus hydraulic implements on the rear outlets.

How do you transport it?
It weighs 700 kg (1,540 lb) and is 2.55 m (8.4 ft) long: it fits on a car trailer or in a van with ramps, and it can also drive itself on the road.

How long is the warranty?
3 years on the tractor, 5 years on the engine alone.
