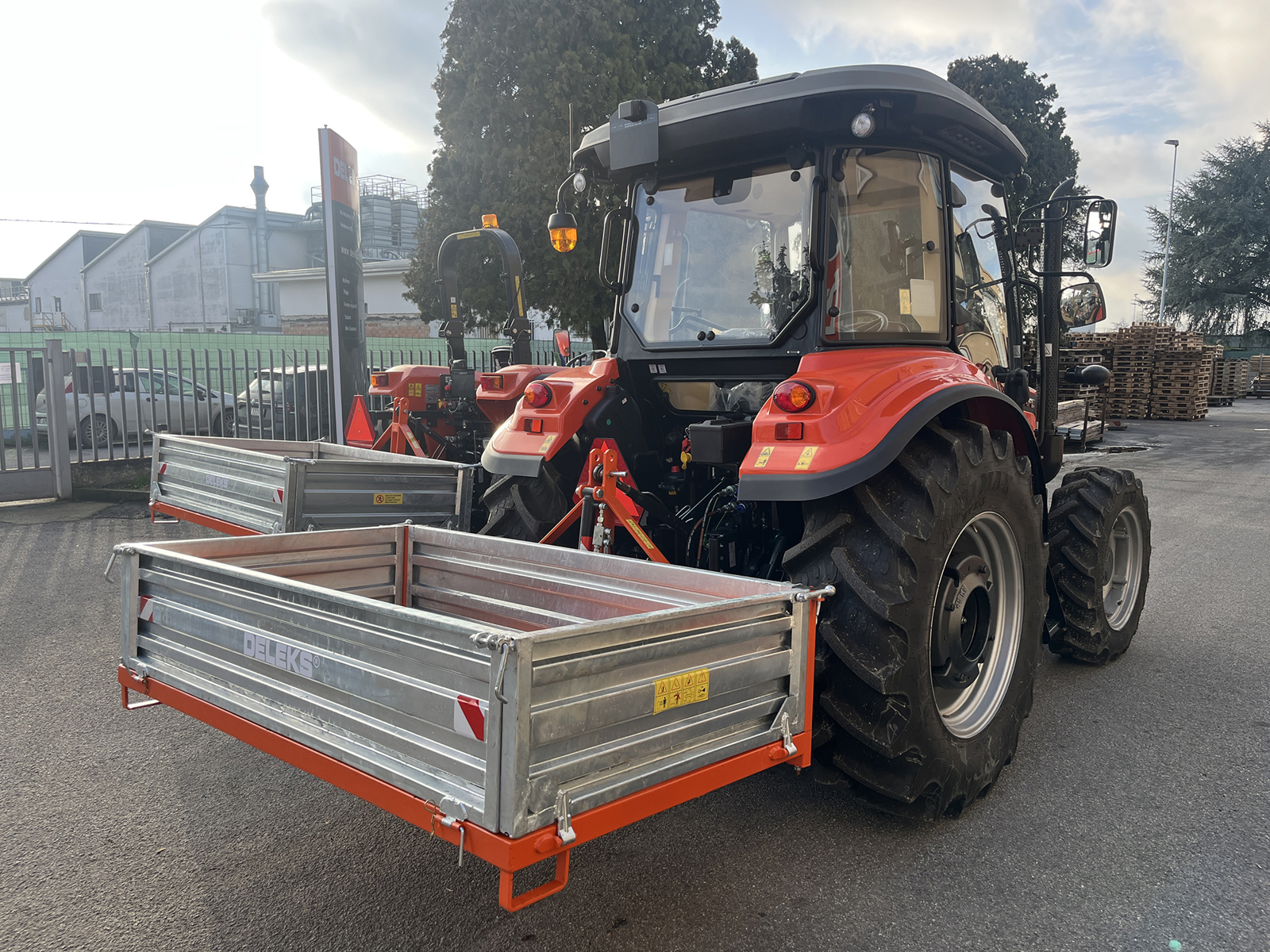

Hydraulic Transport Box for tractor, T-1600-H
DETAILS
Hydraulic Transport Box for tractor - DELEKS® - Max load 700kg - 160 x 110cm. Ideal for transporting fruits, wood/debris, tools, manure, etc..
OVERVIEW

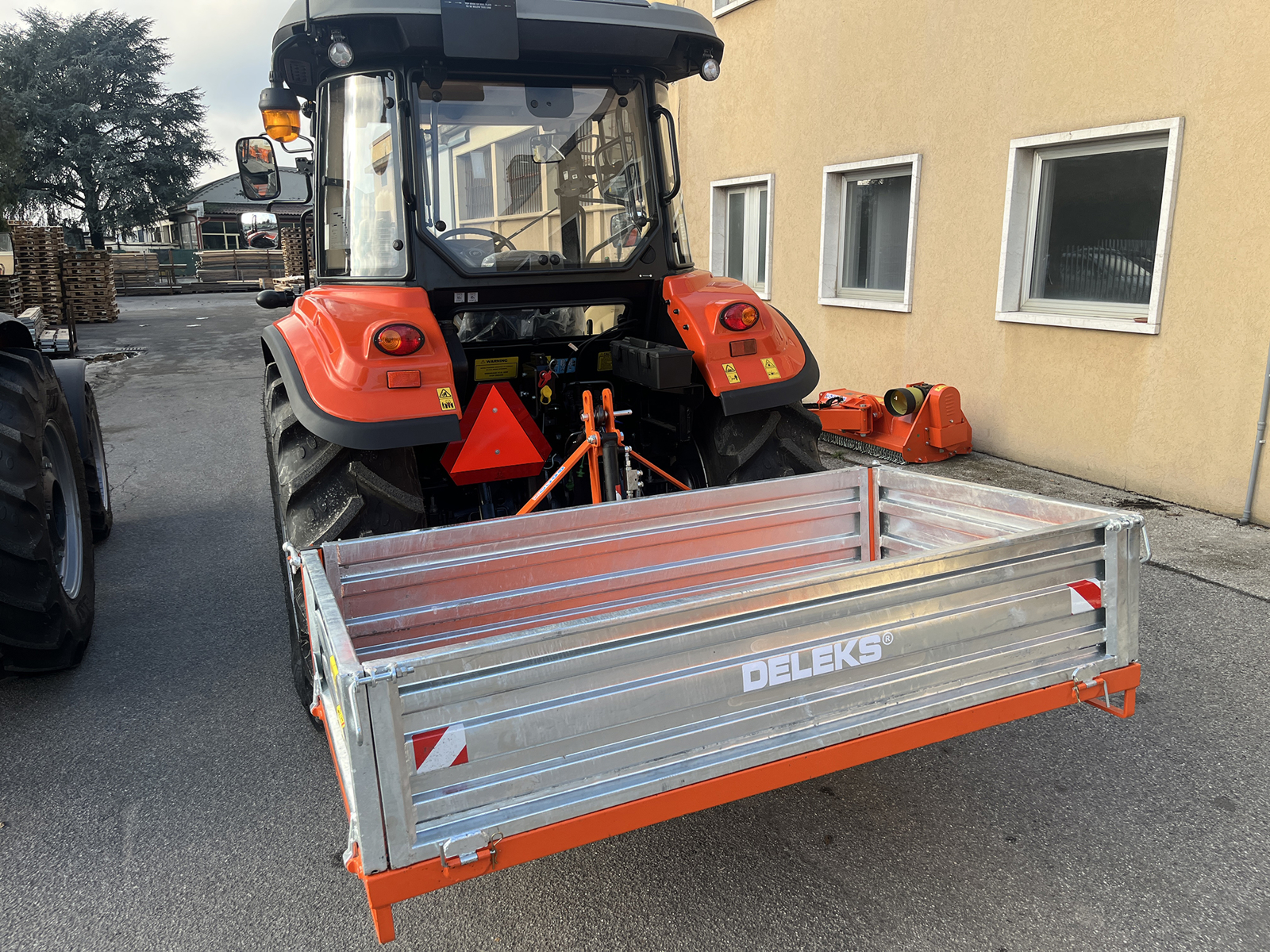

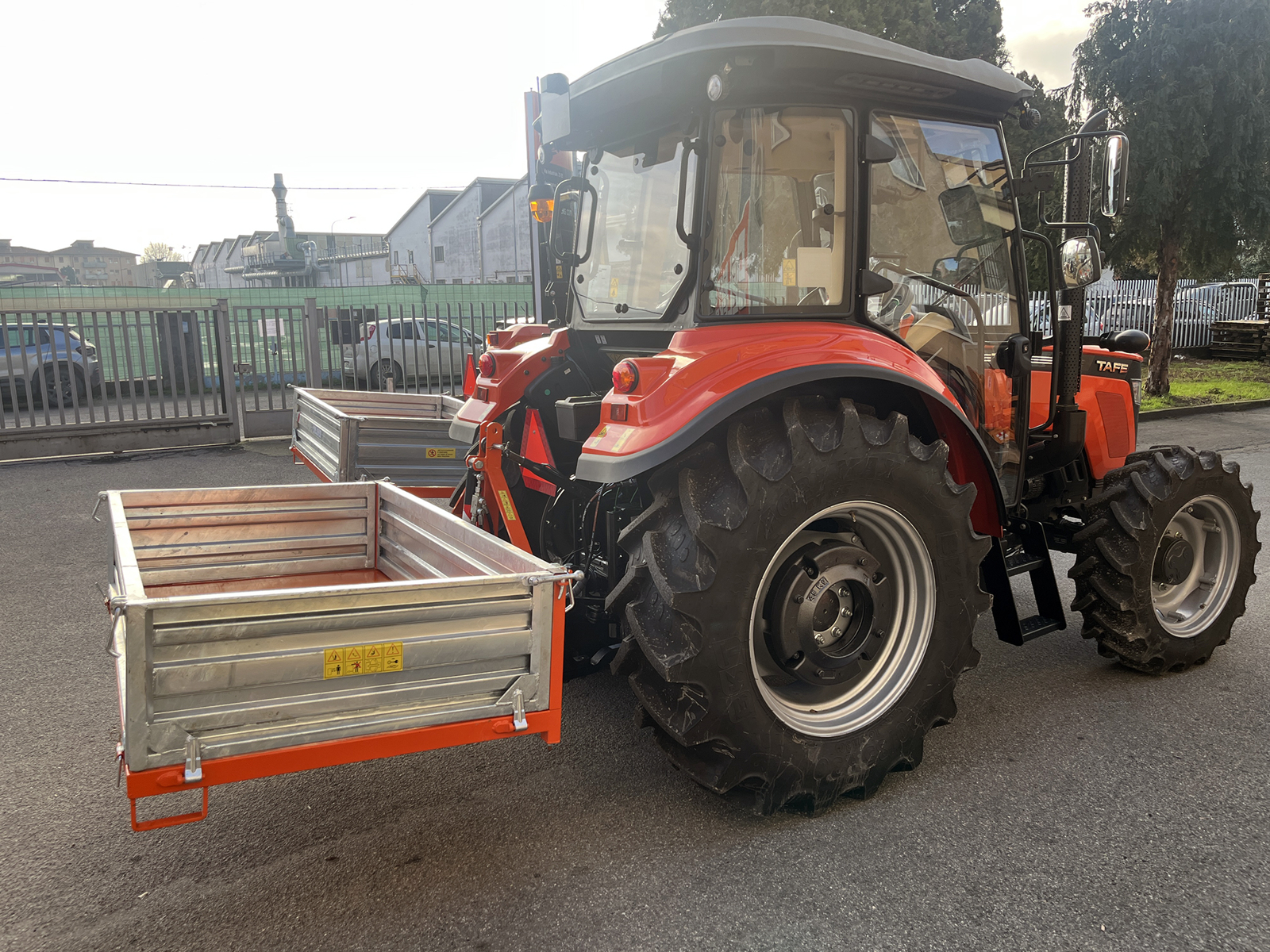

Unlike the PRM/PRI series these boxes cannot be used to scoop up material, however the 'T' series have a higher loading capacity. The T-1600-H is attached to the tractor using universal 3 point linkage Cat. 1-2 and fits all 20-90hp tractors e.g Ford, FIAT, New Holland T4, T5, John Deere 4-5 Series, Kubota L-M, McCormick, Goldoni, CASE, Deutz-Fahr, Lamborghini Ego 55, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

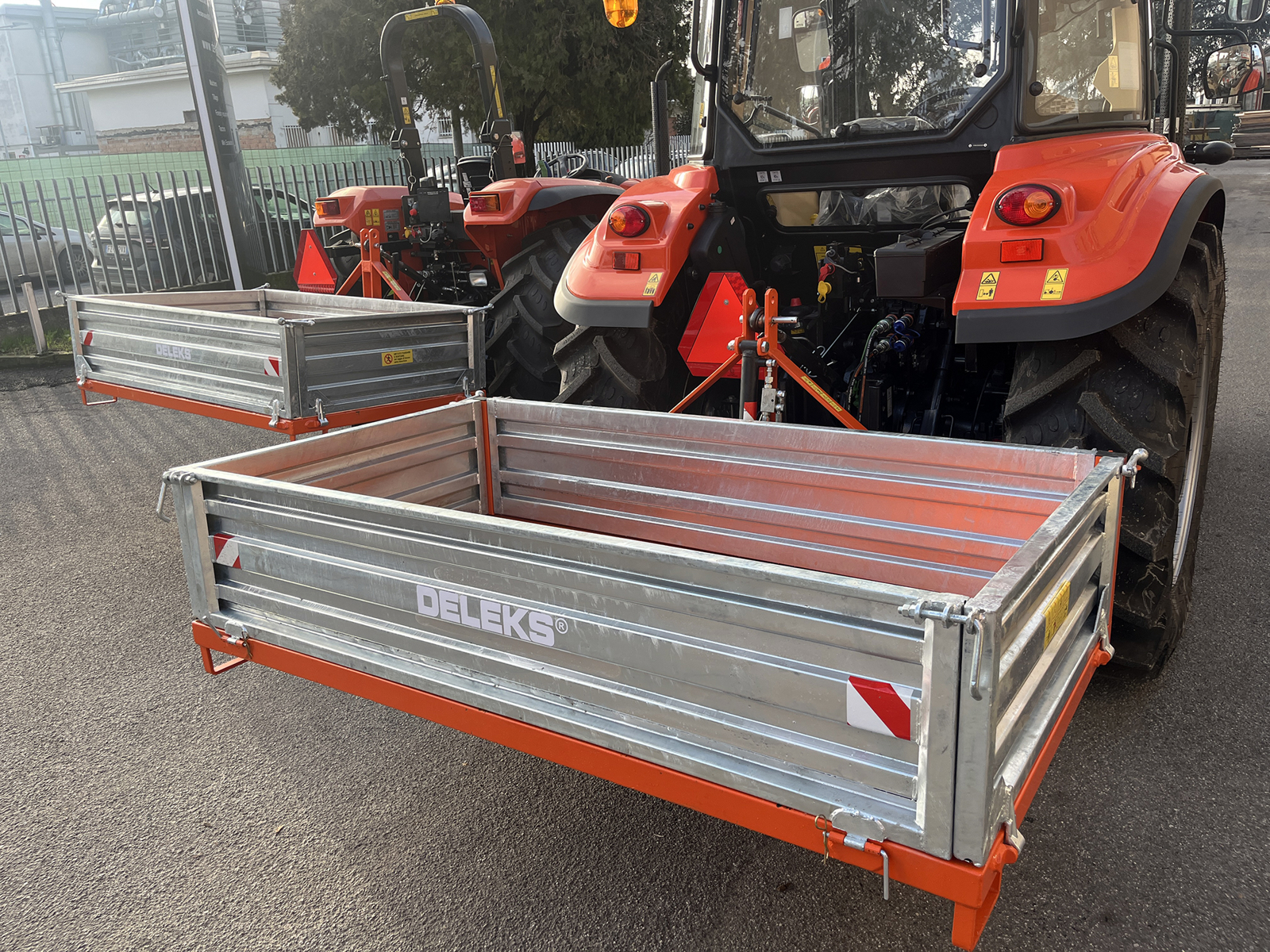

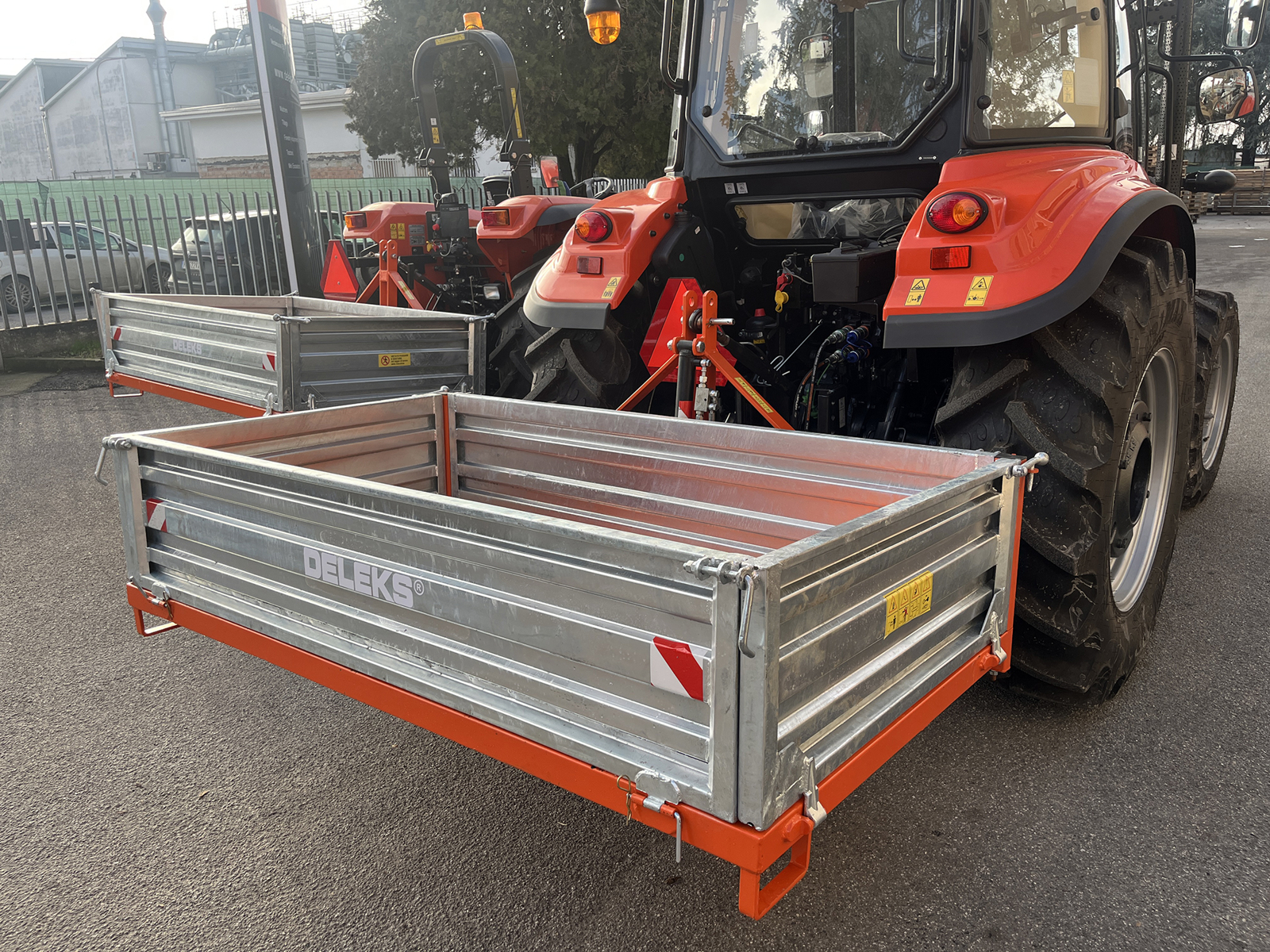

Three removable side doors for easy loading.
As it is 110cm long, it is large enough to carry pallets, however it can also be used with isodiametric tractors.

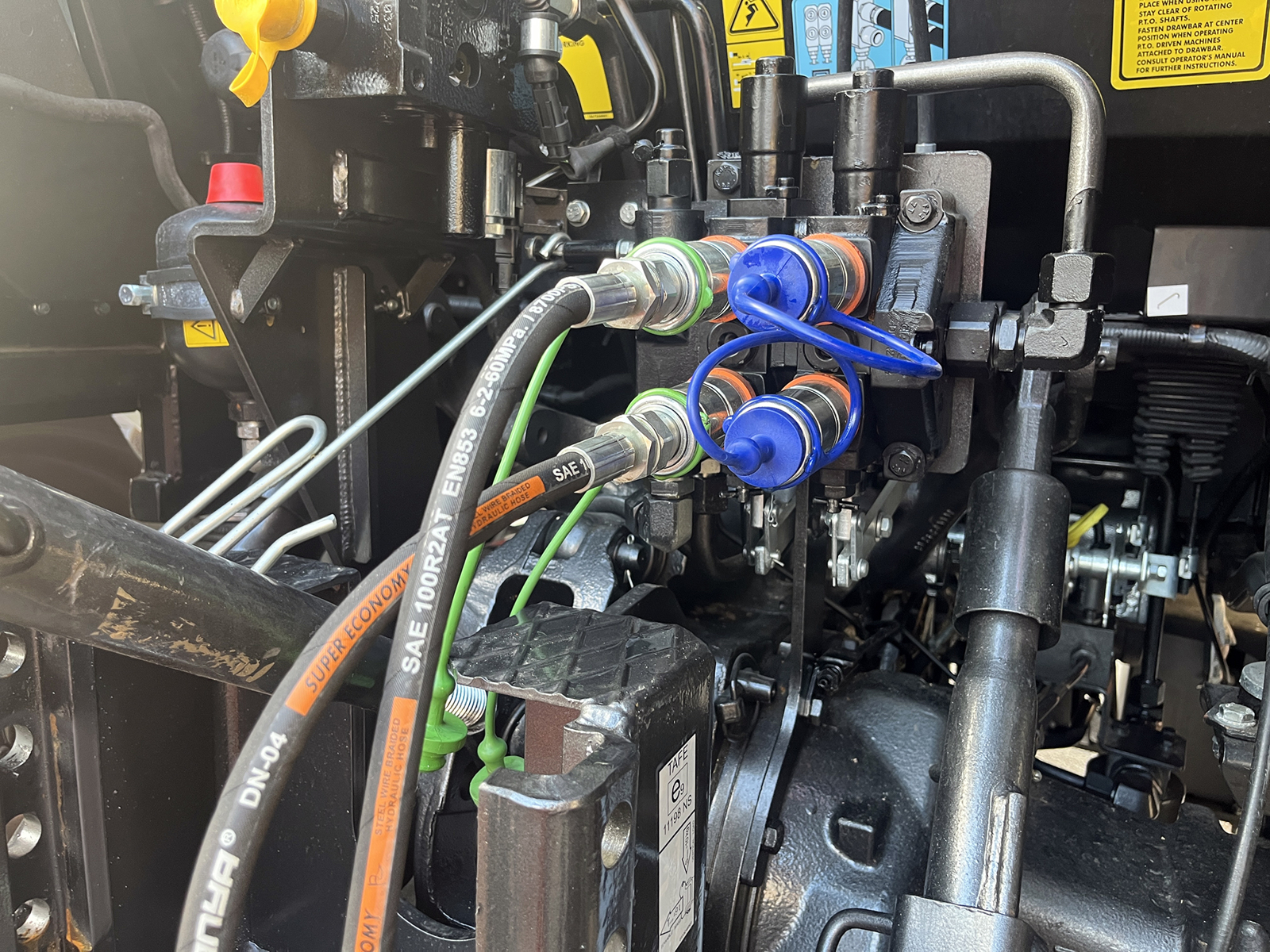

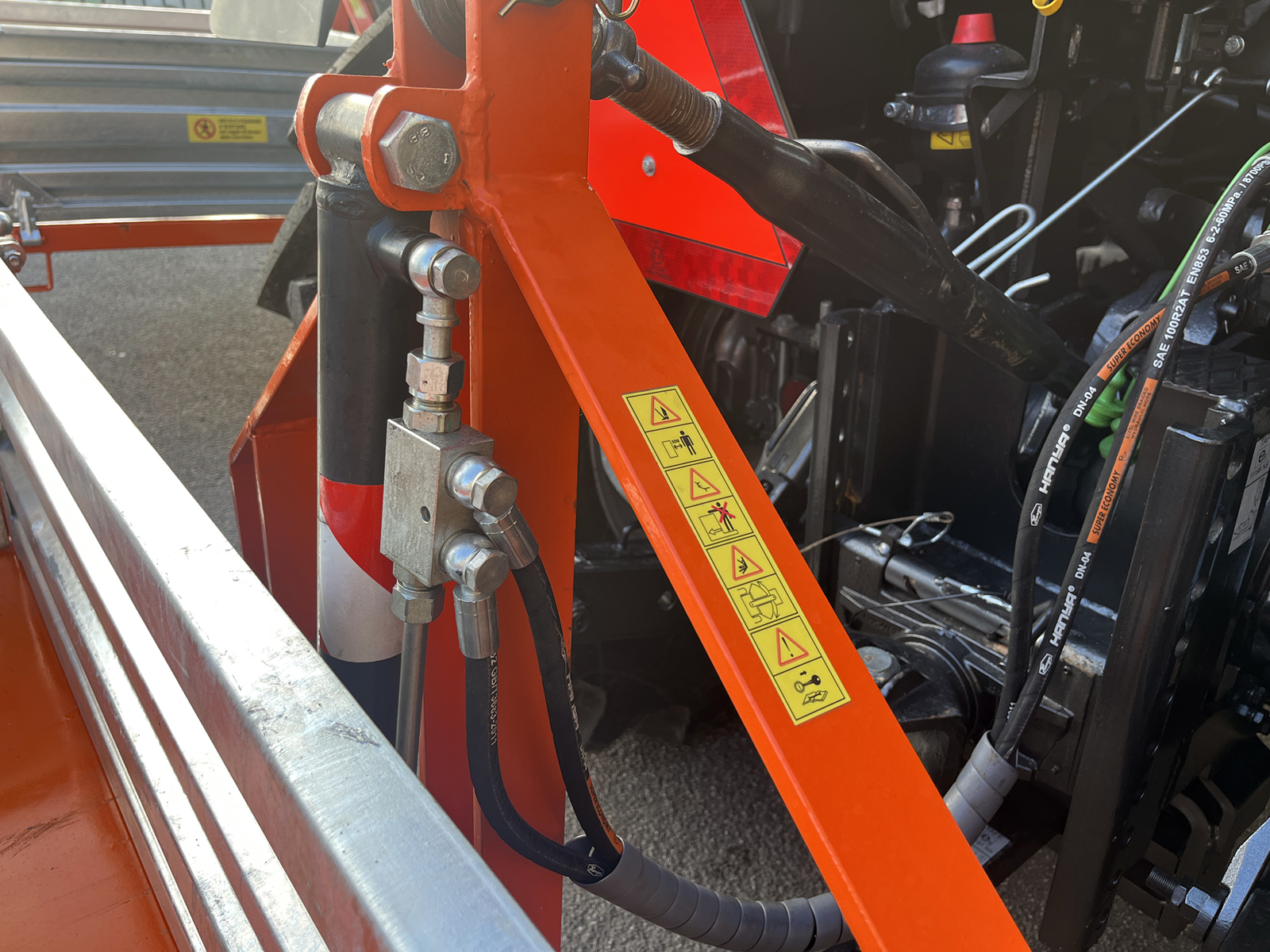

Standard hydraulic cylinder + 2 hydraulic pipes 1,30m with connections 1/2”.

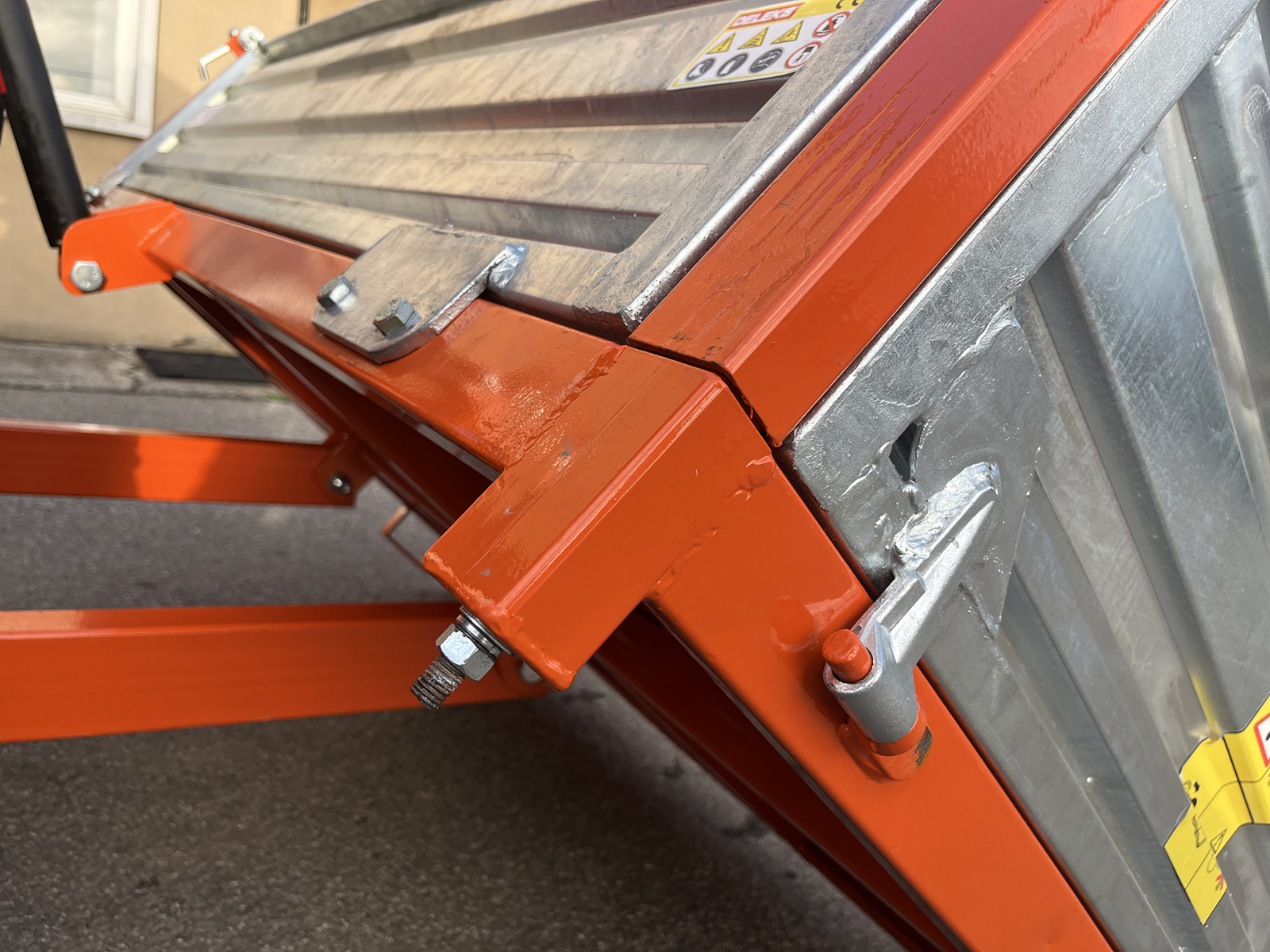

Reinforced at all stress points.

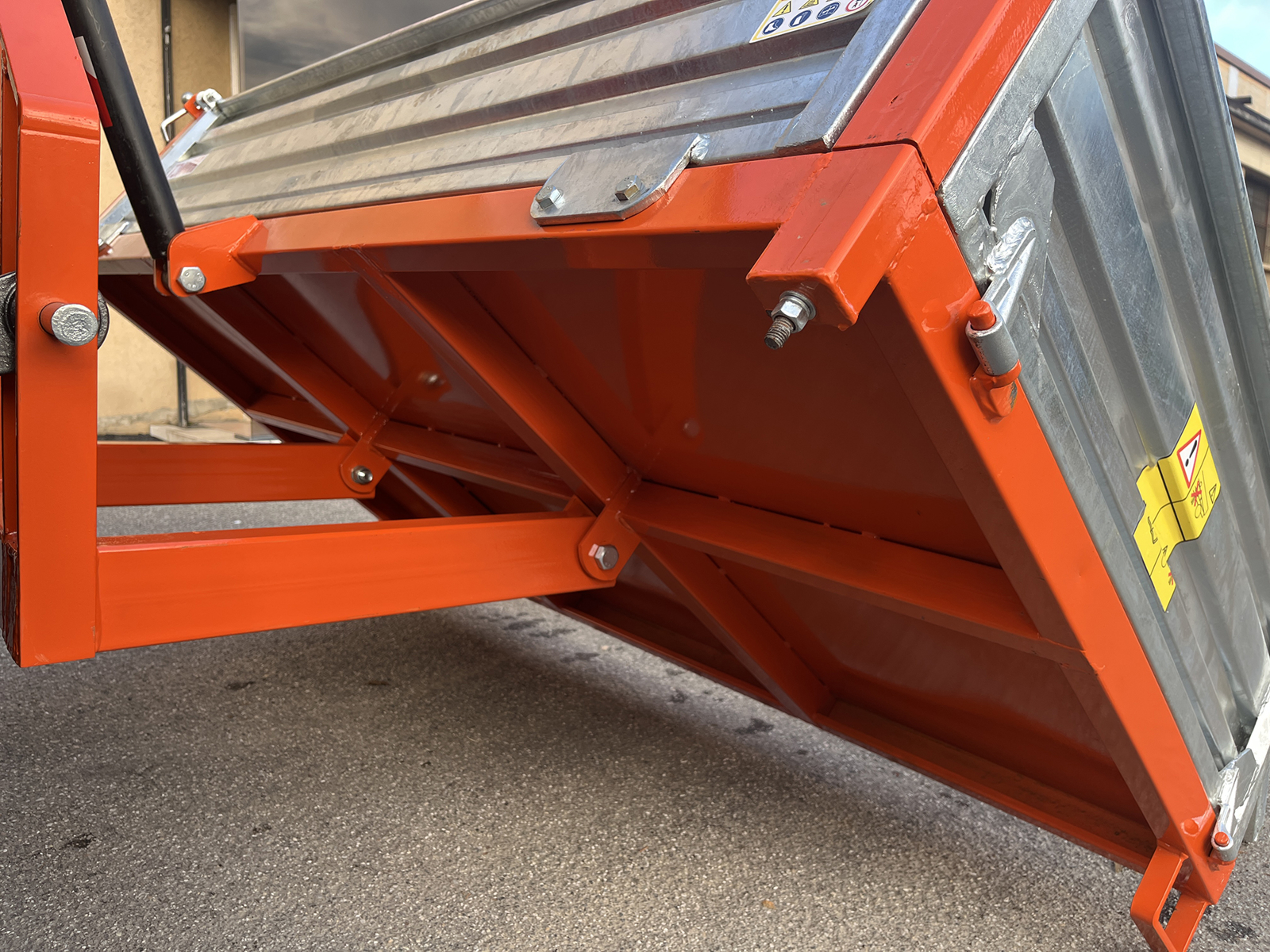

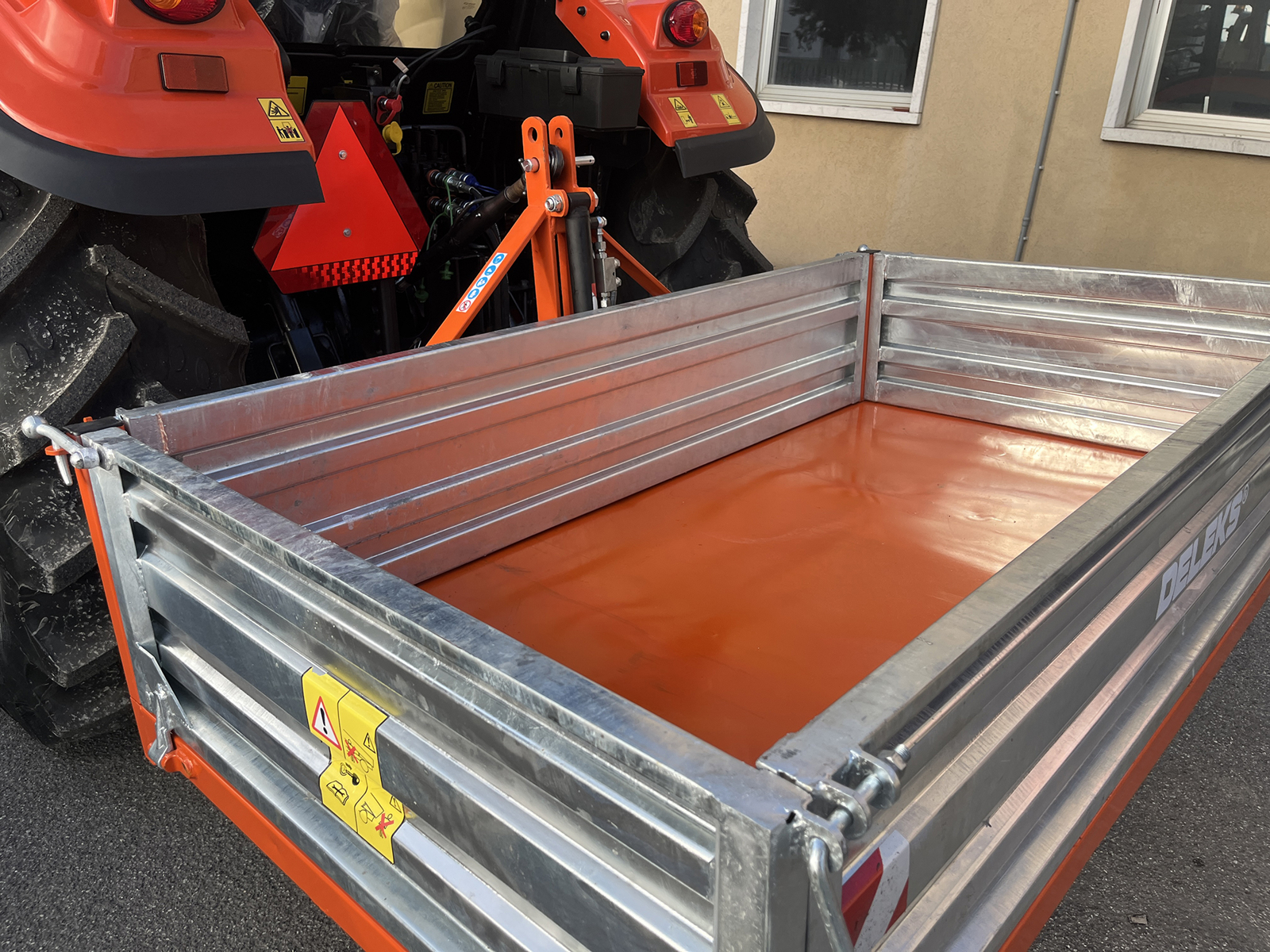

Reinforced floor for wear resistance and strength.
Cat I or II lower and top links.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Width | 1600.0 mm |
| Weight | 180.0 kg |
| Tractor Power Range | 20 - 90 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Load capacity | 700.0 kg |
| Rated bucket Capacity | 0.62 m3 |
| 3 point linkage Thickness | 11.0 mm |
| Spacing between the 2 lower points | 500.0 - 765.0 mm |
| External sizes of the box | 1600.0*1120.0*460.0 mm |

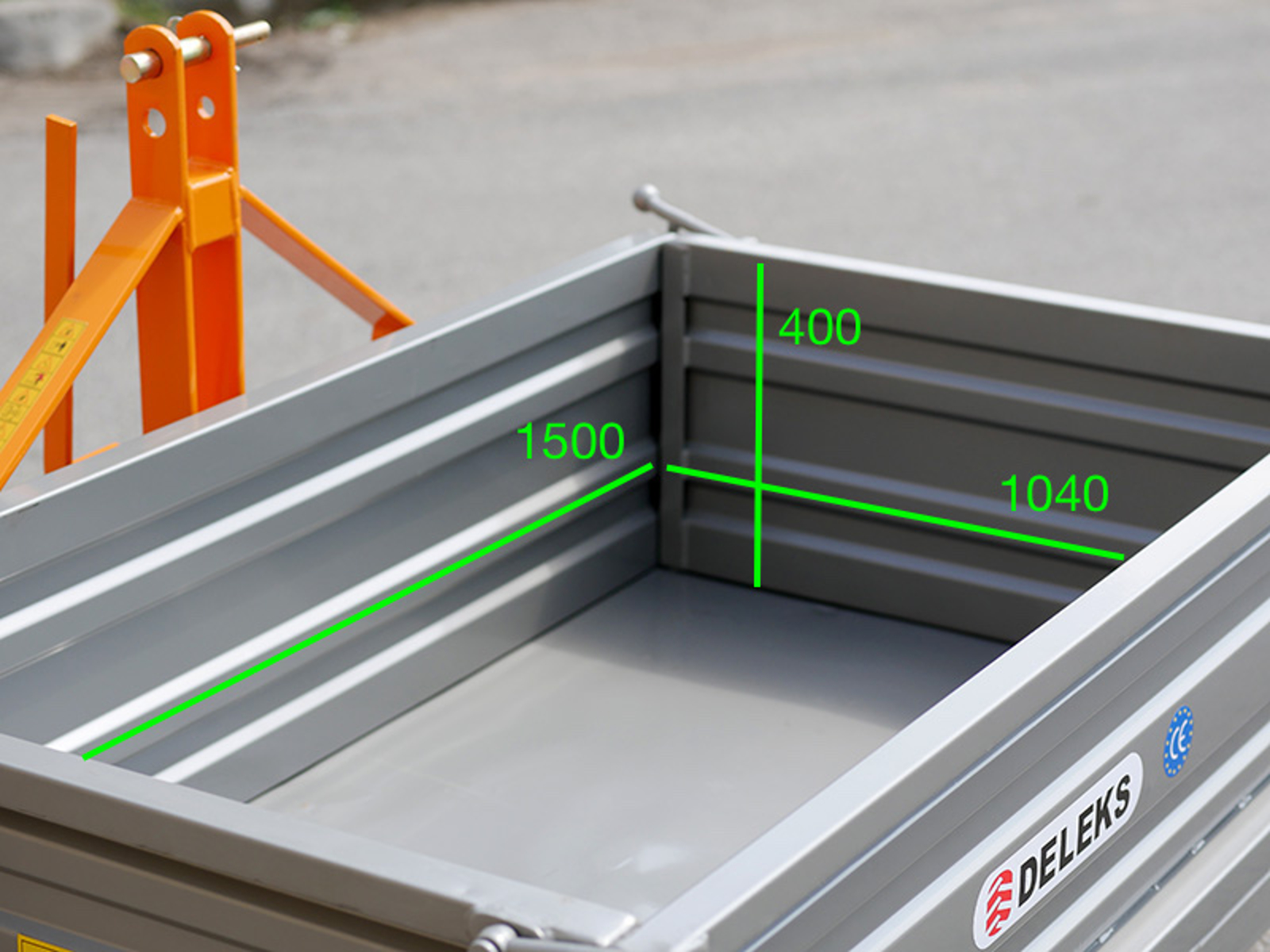

| Internal sizes of the box | 1500.0*1020.0*400.0 mm |
| Overall sizes | 1700.0*1230.0*940.0 mm |
| Sheet thickness | 2.0 mm |
| Dumping | Hydraulic |

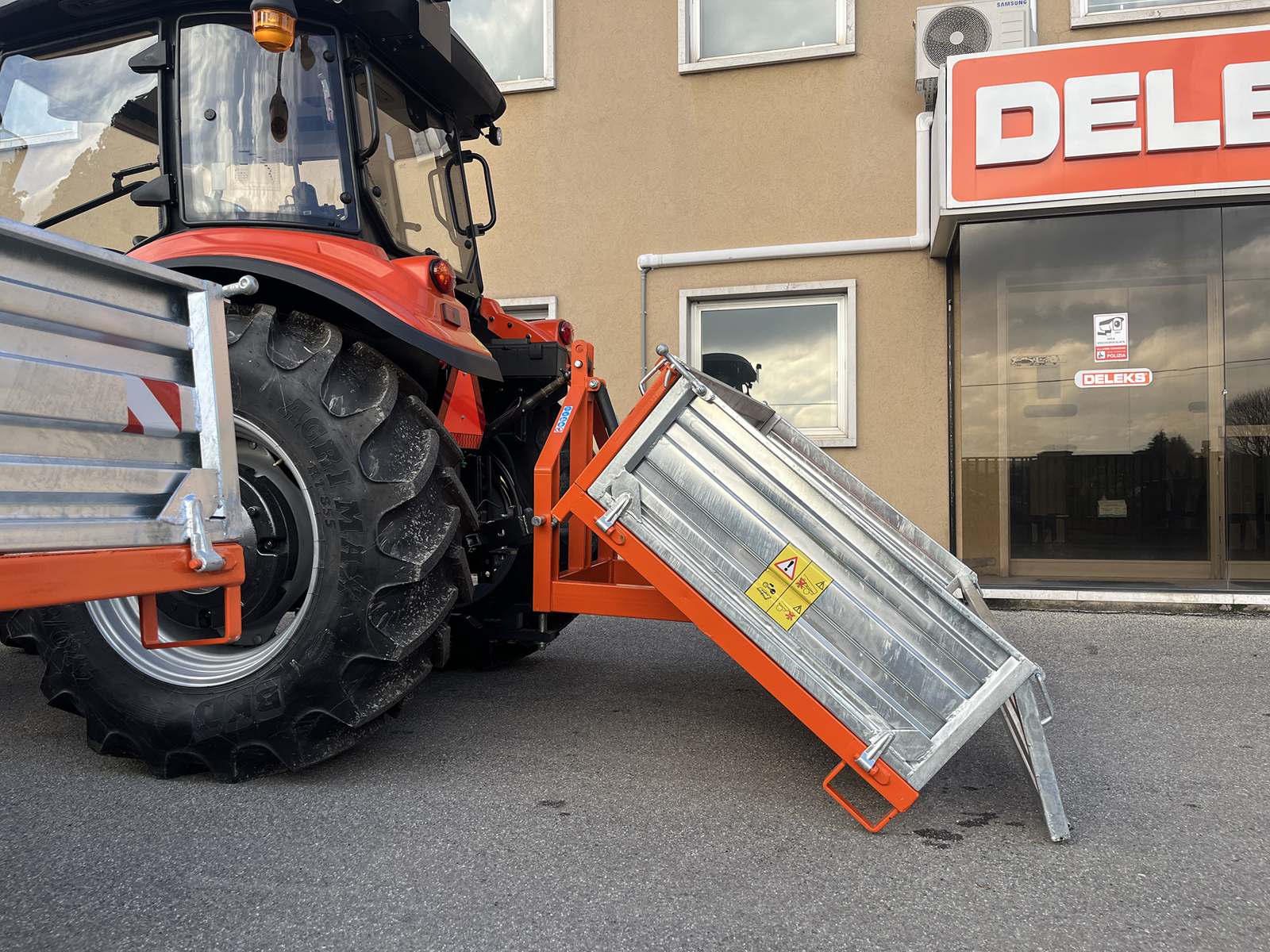

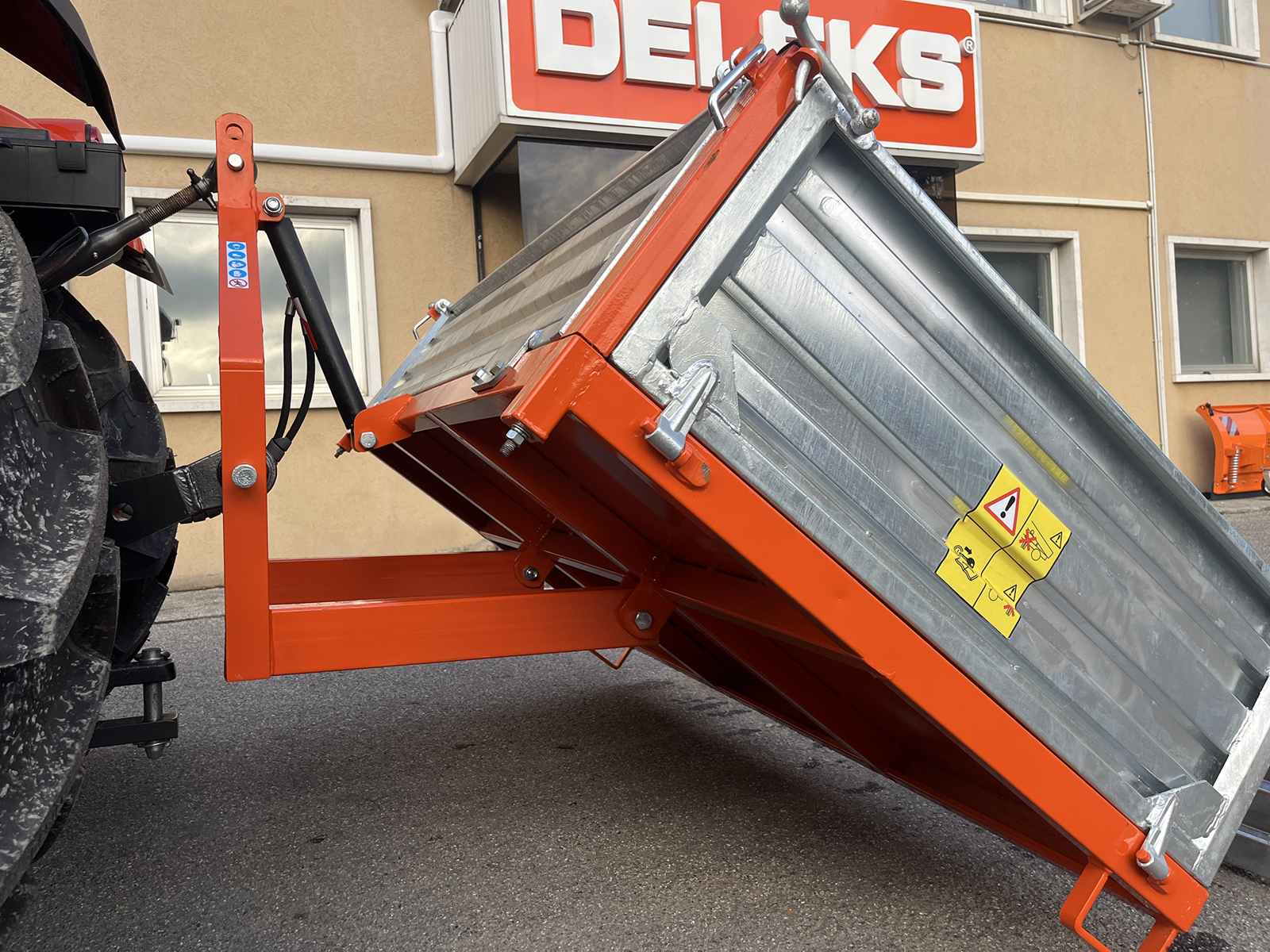

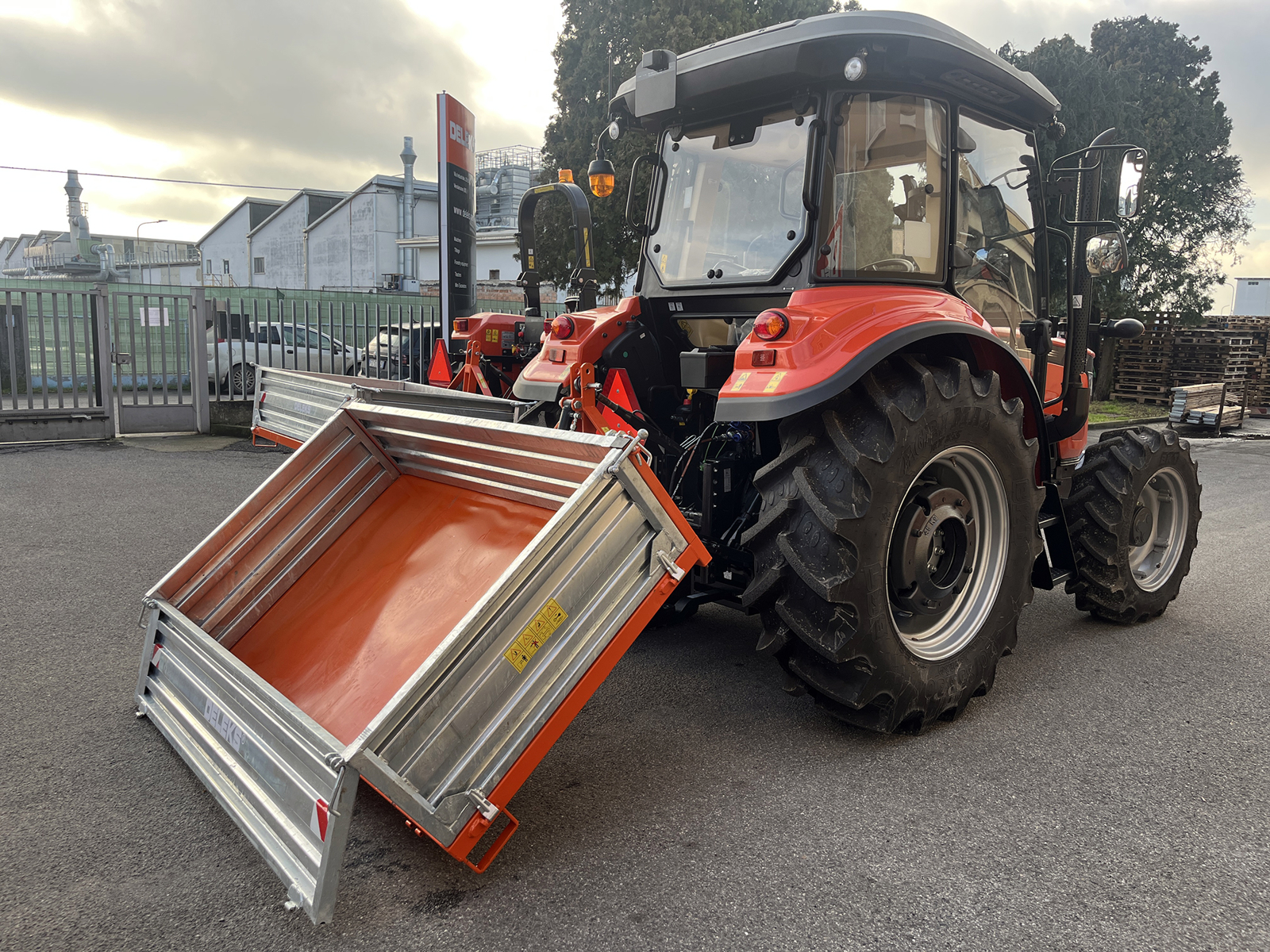

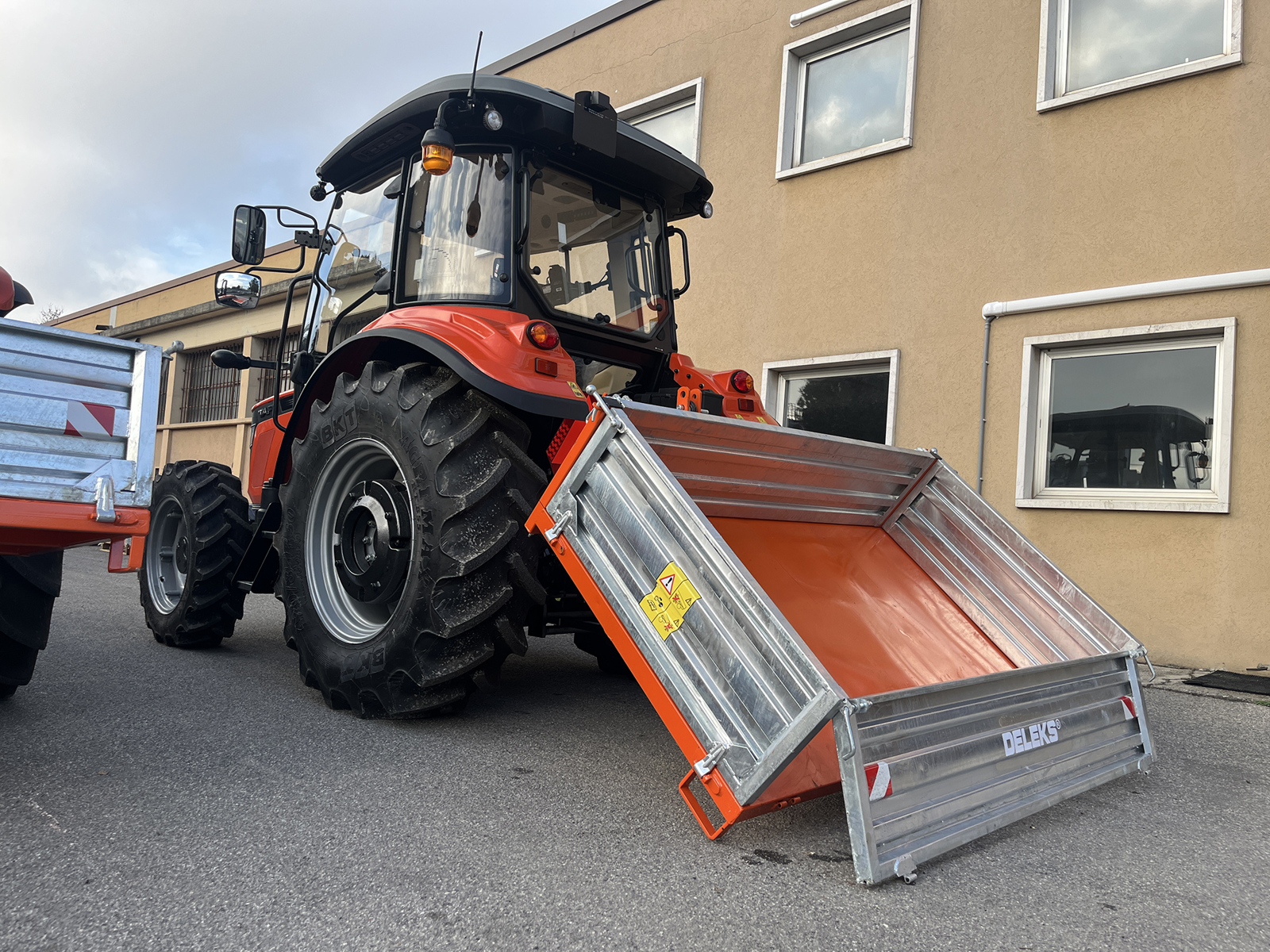

| Tipping degrees | 80° |
| Openable doors | 3 |
| Packing sizes | 1700.0*1120.0*700.0 mm |
