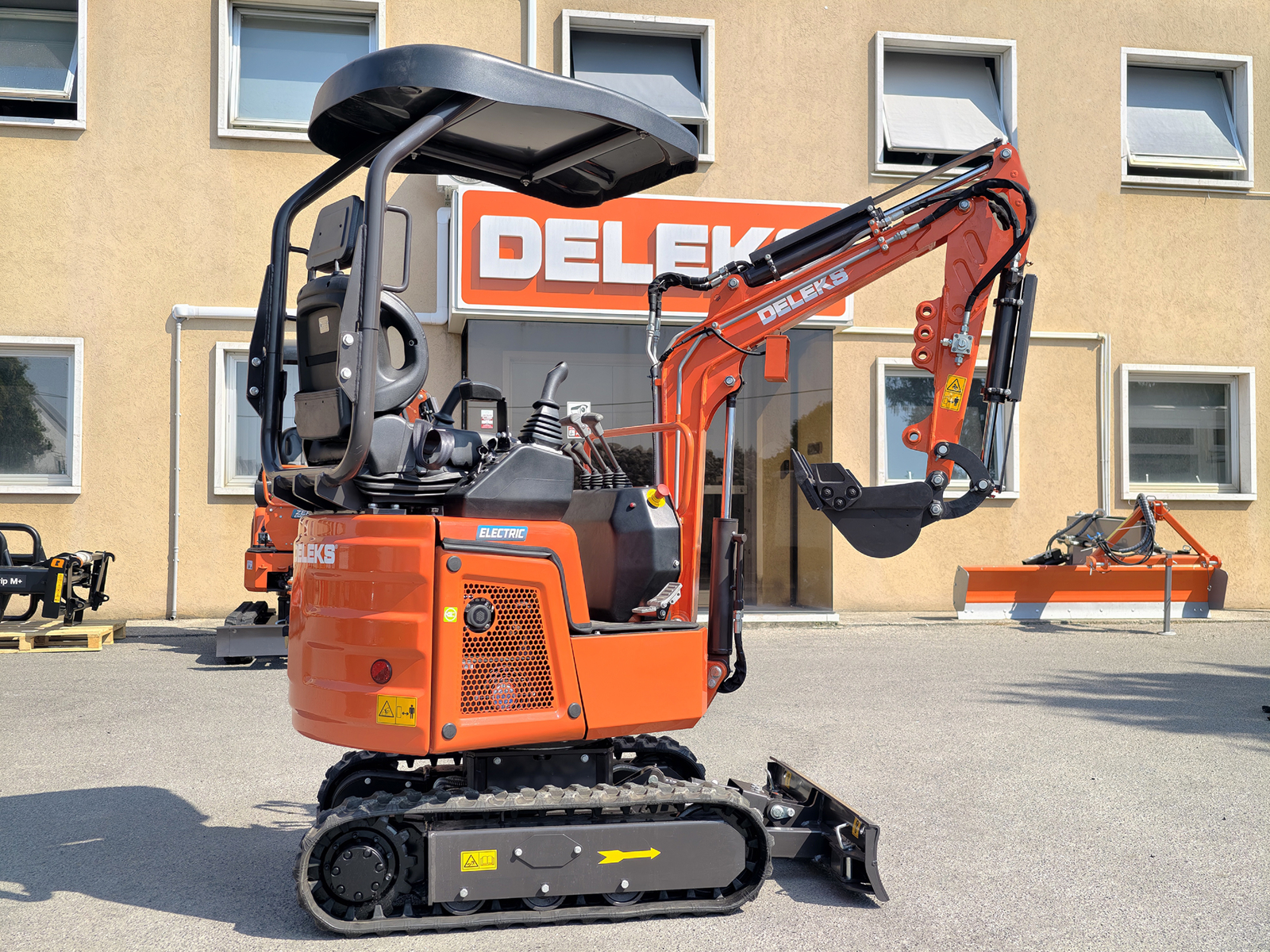

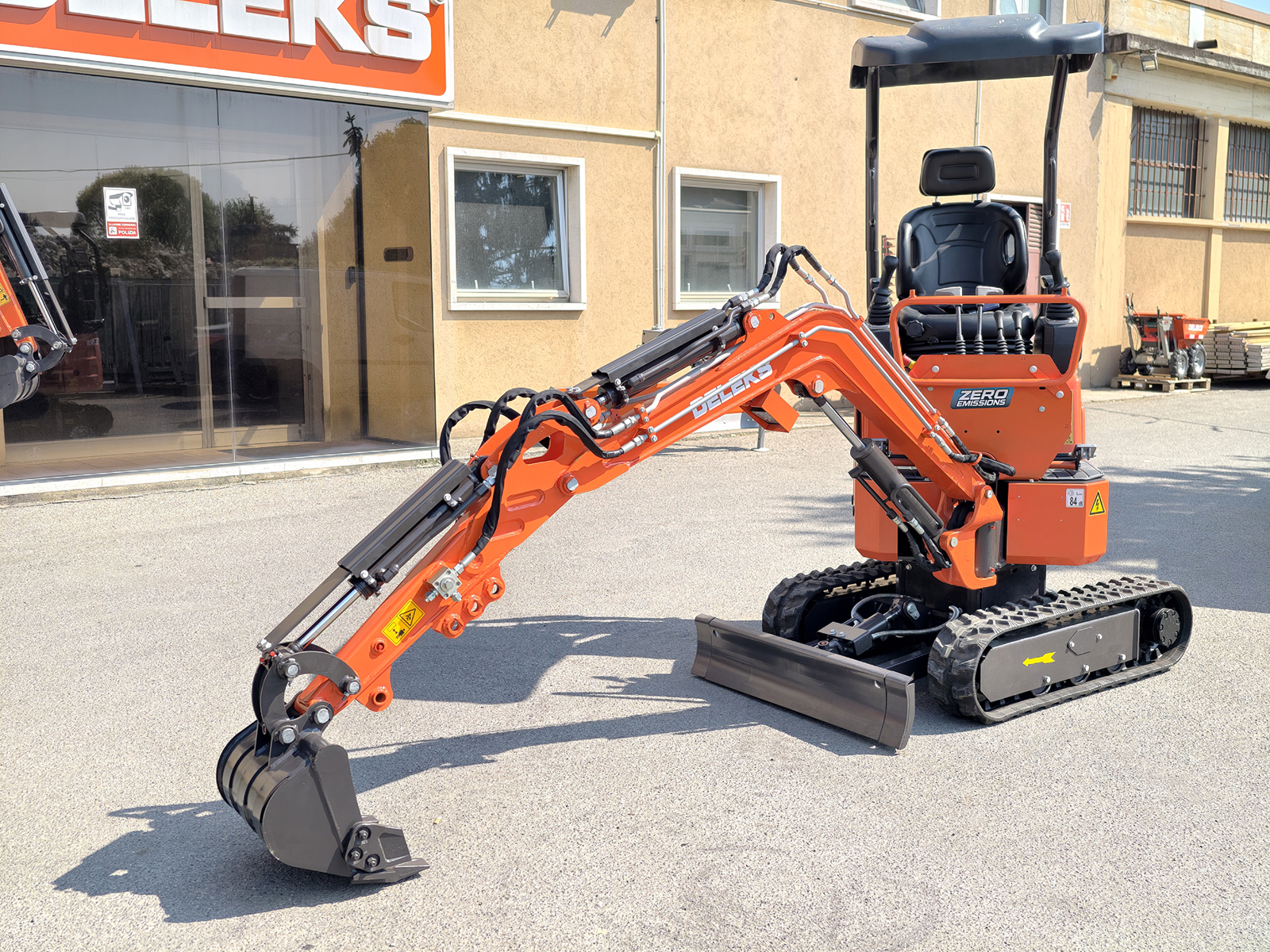

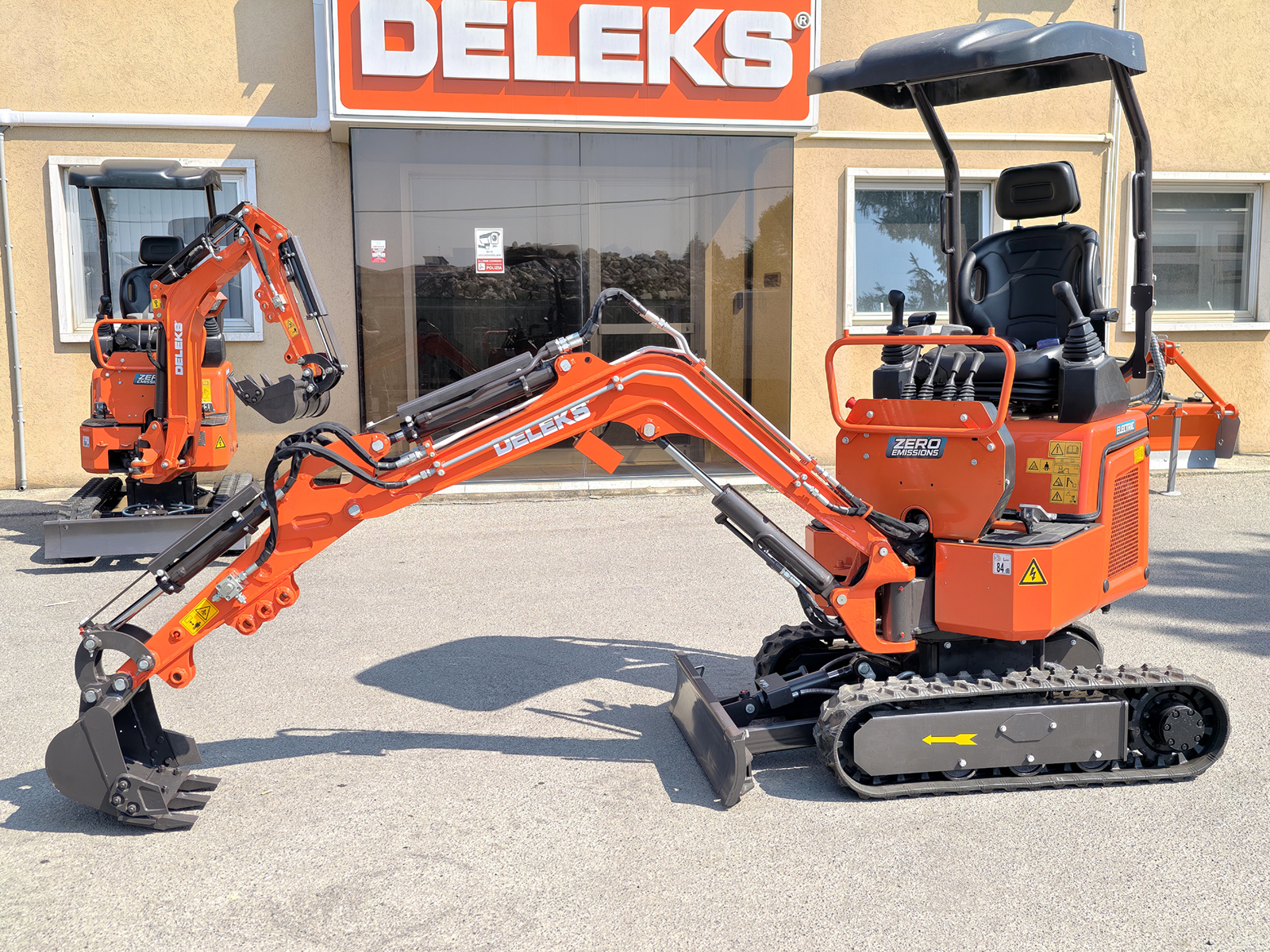

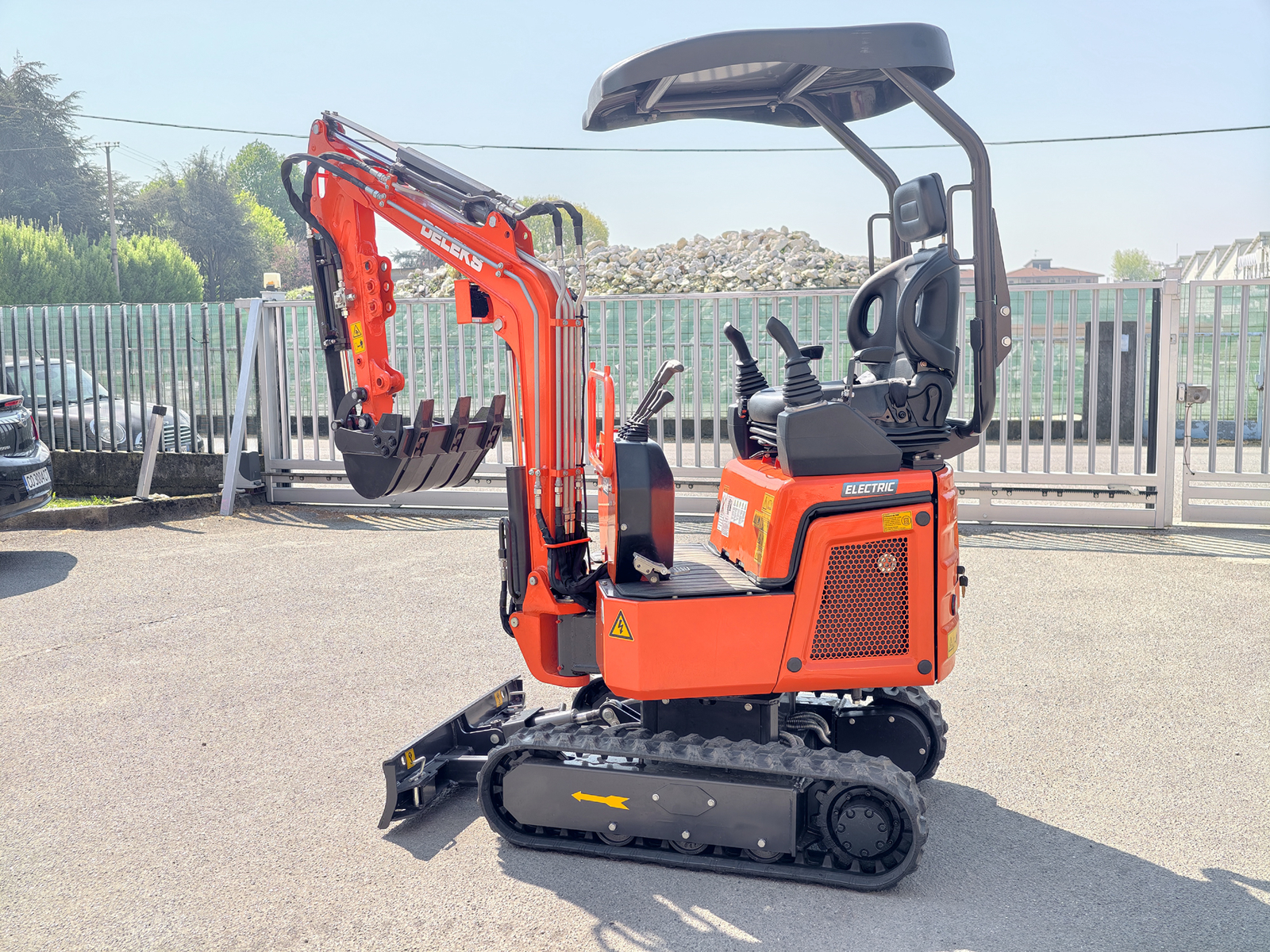

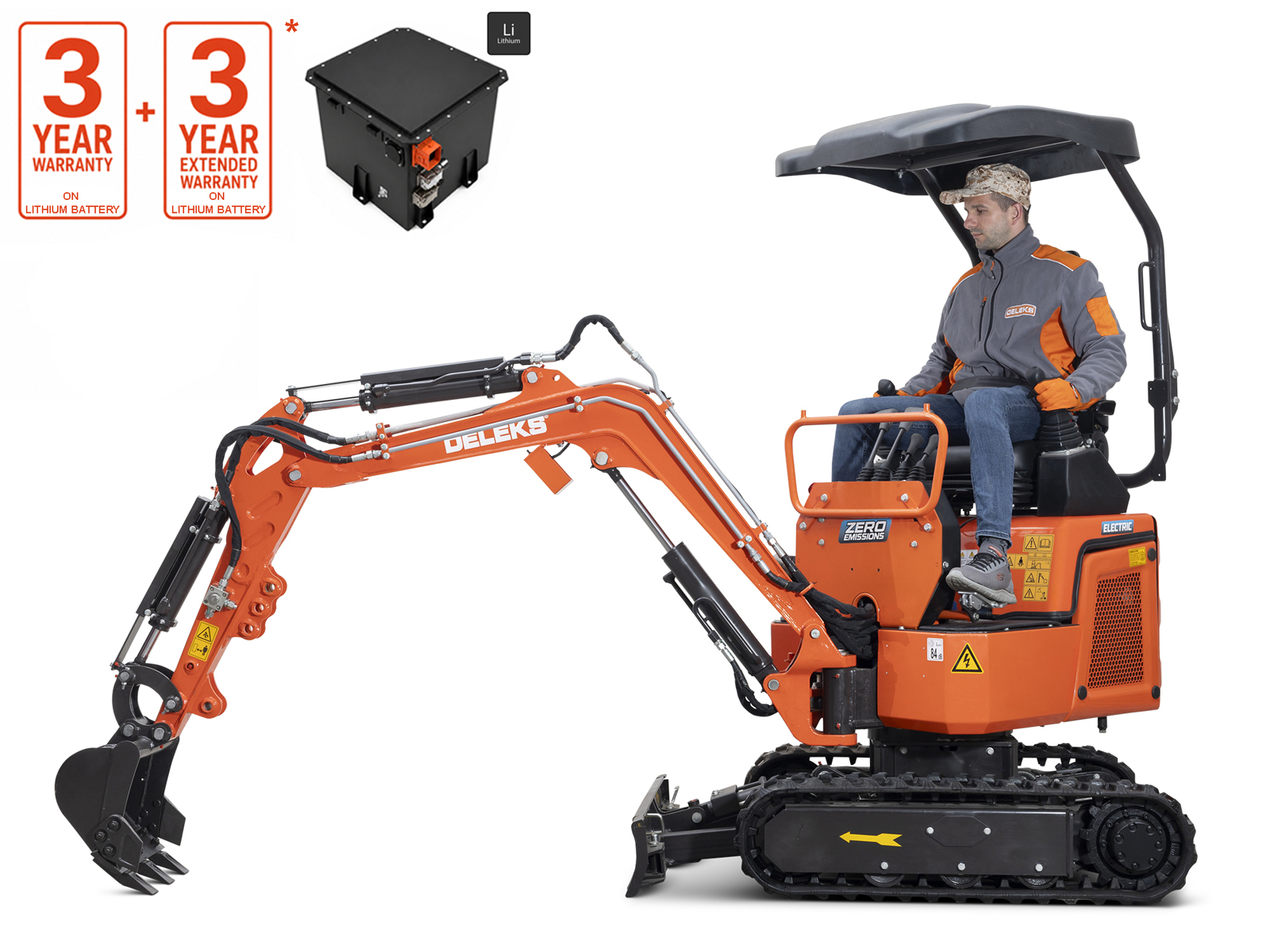

Compact Electric Mini Excavator 1.1 ton – 4000W

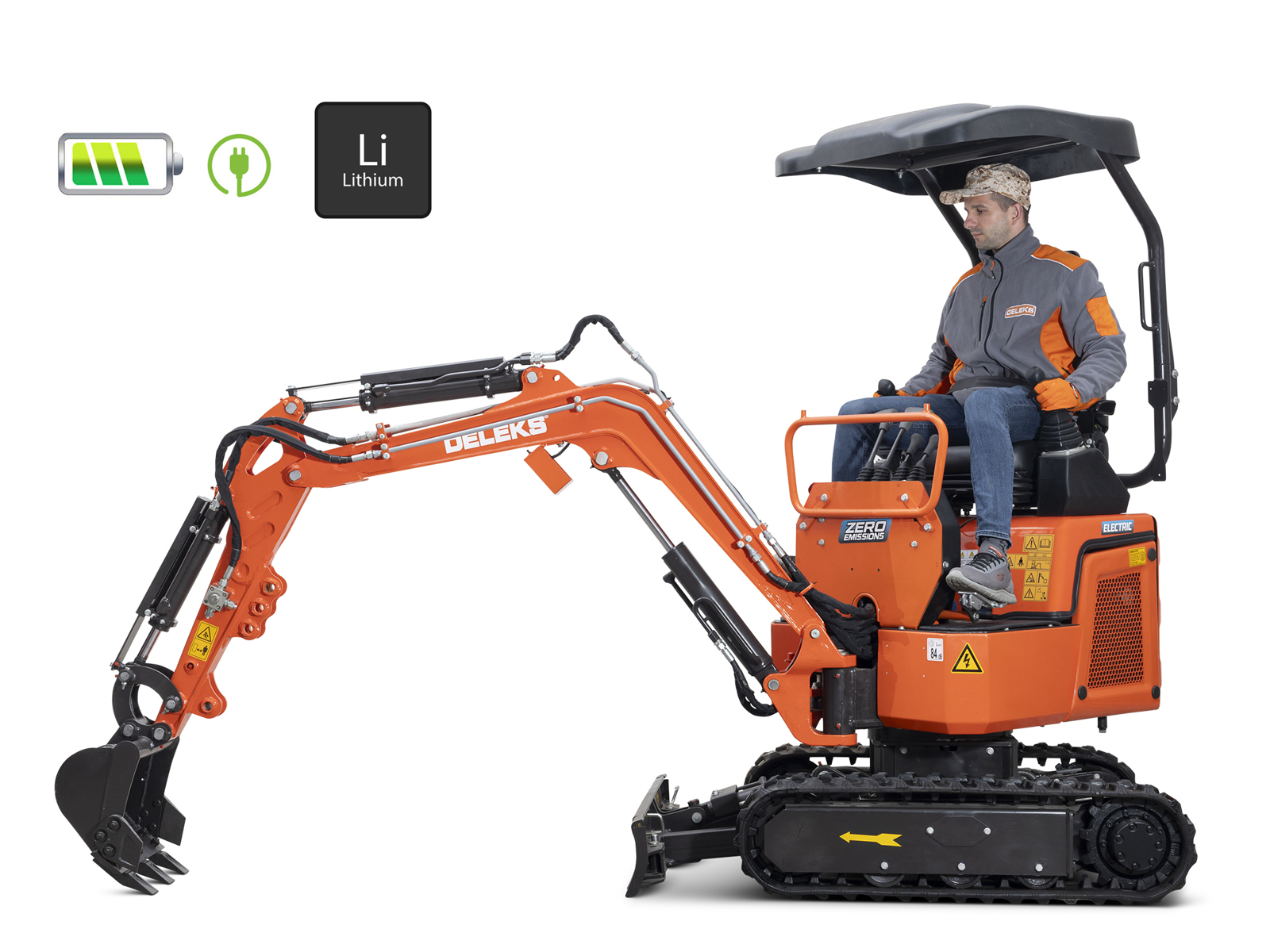

100% electric DELEKS® E110 mini excavator (1.1 ton), lithium battery powered with full-day operating autonomy, compact, silent and zero-emission.

MAIN APPLICATIONS

urban job sites and areas with limited access
indoor demolition and renovation works
gardening, parks and residential areas
excavation for utilities, irrigation and piping
greenhouse works

PERFORMANCE EQUIVALENT TO DIESEL

The E110 is equipped with a 4.0 kW electric motor. In terms of performance and maneuverability, it is equivalent to diesel machines in the same class, with the added advantage of operating in environments with restrictions on noise, emissions and working hours.

The instant torque of the electric motor ensures smooth, responsive and consistent movements, even under load.

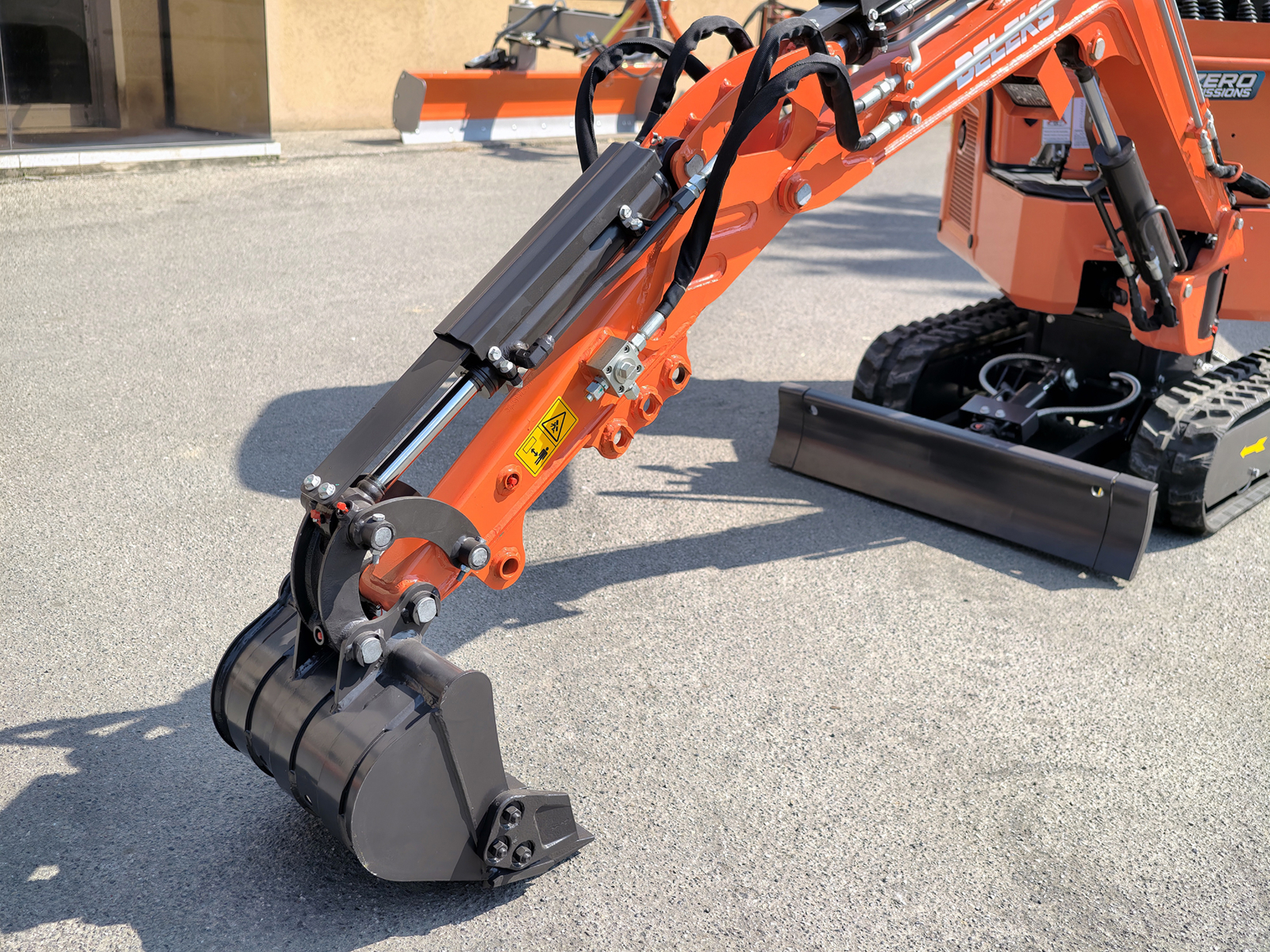

Bucket breakout force: 12.41 kN
Arm breakout force: 8.12 kN

FULL-DAY OPERATING AUTONOMY

The E110 is designed to cover a full working day:

Autonomy: approx. 8 hours, considering normal working breaks
High-capacity lithium battery (230Ah / 16.56 kWh)

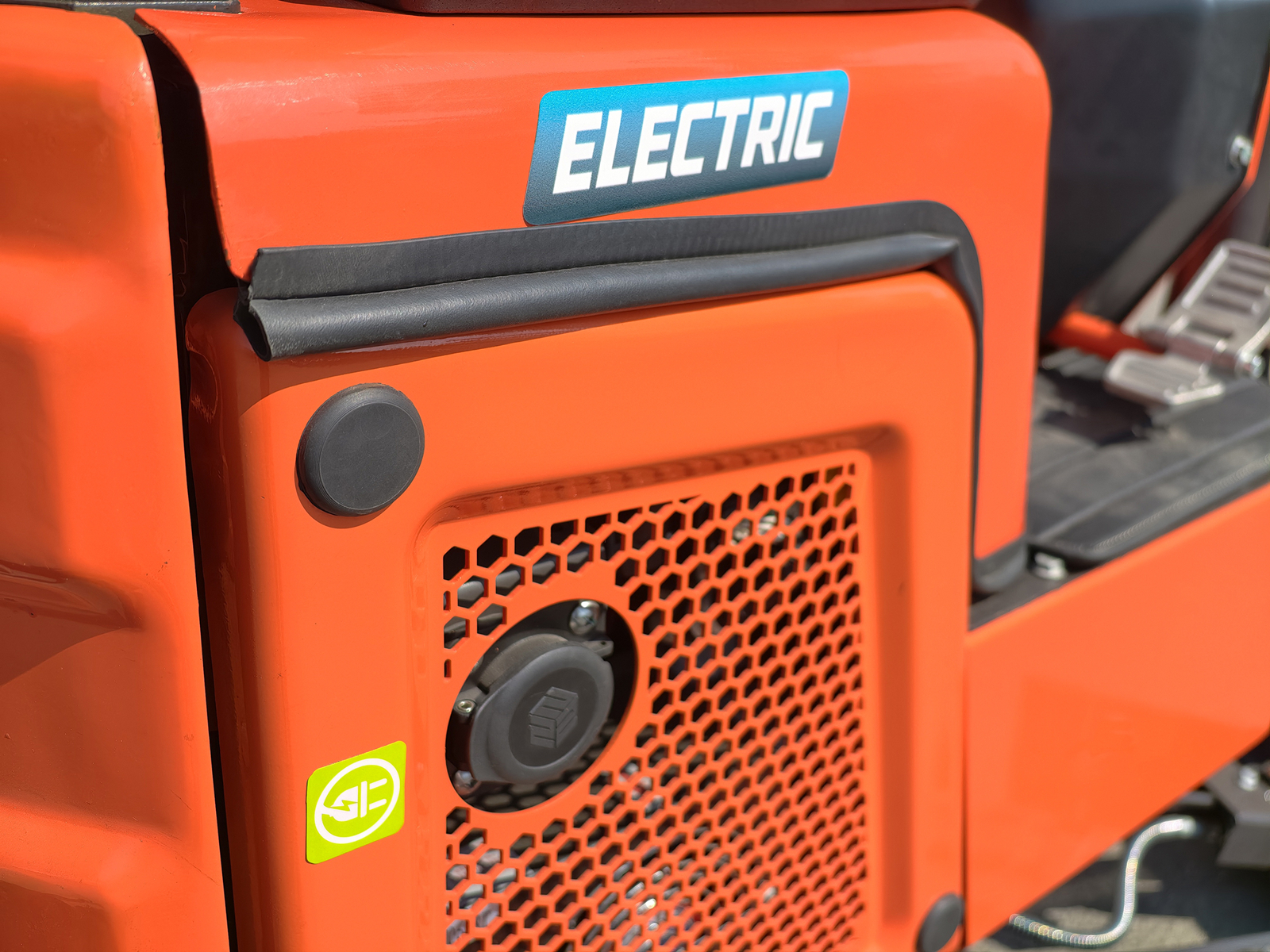

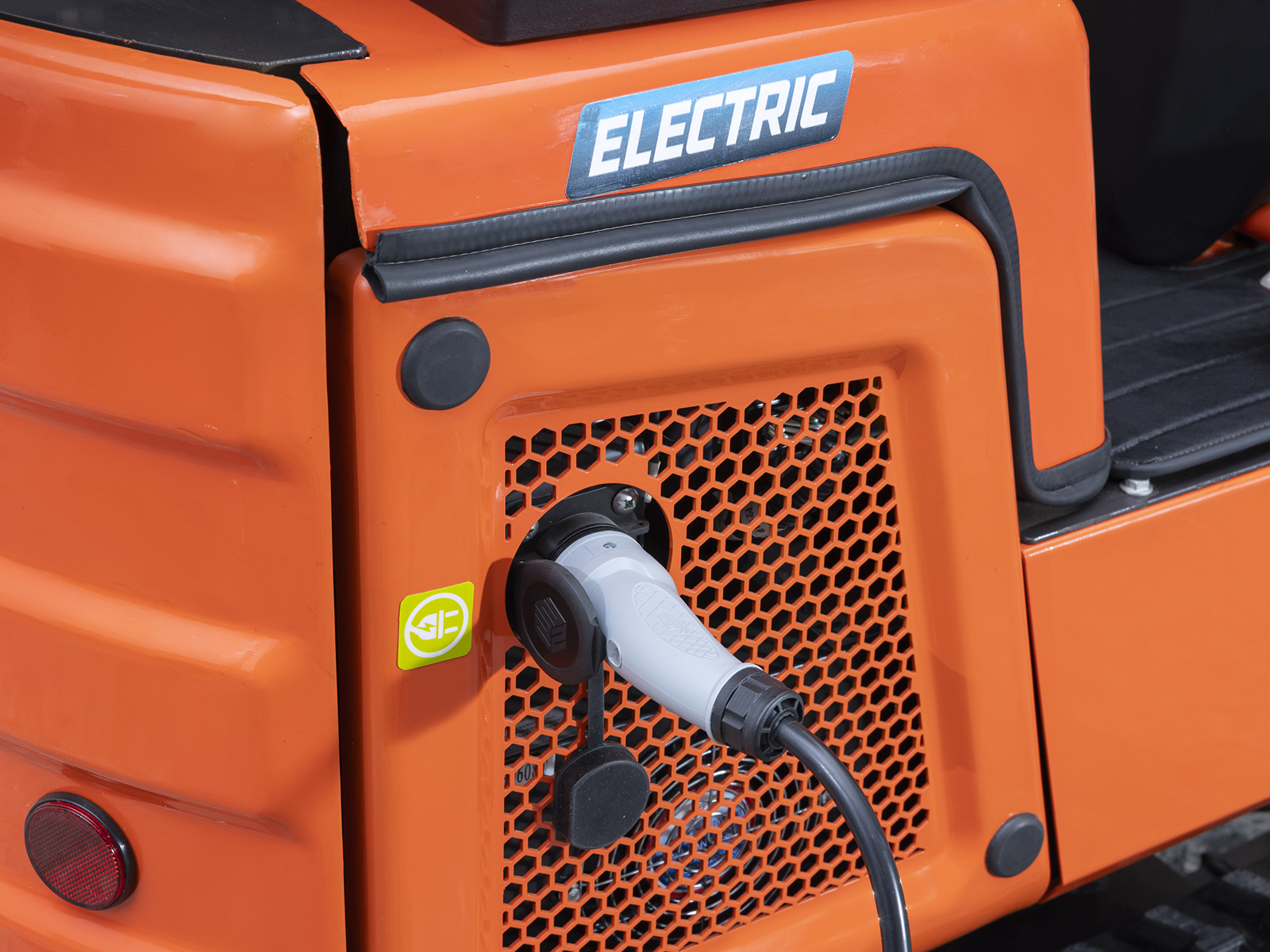

Full charge (Schuko 220V): 6 hours

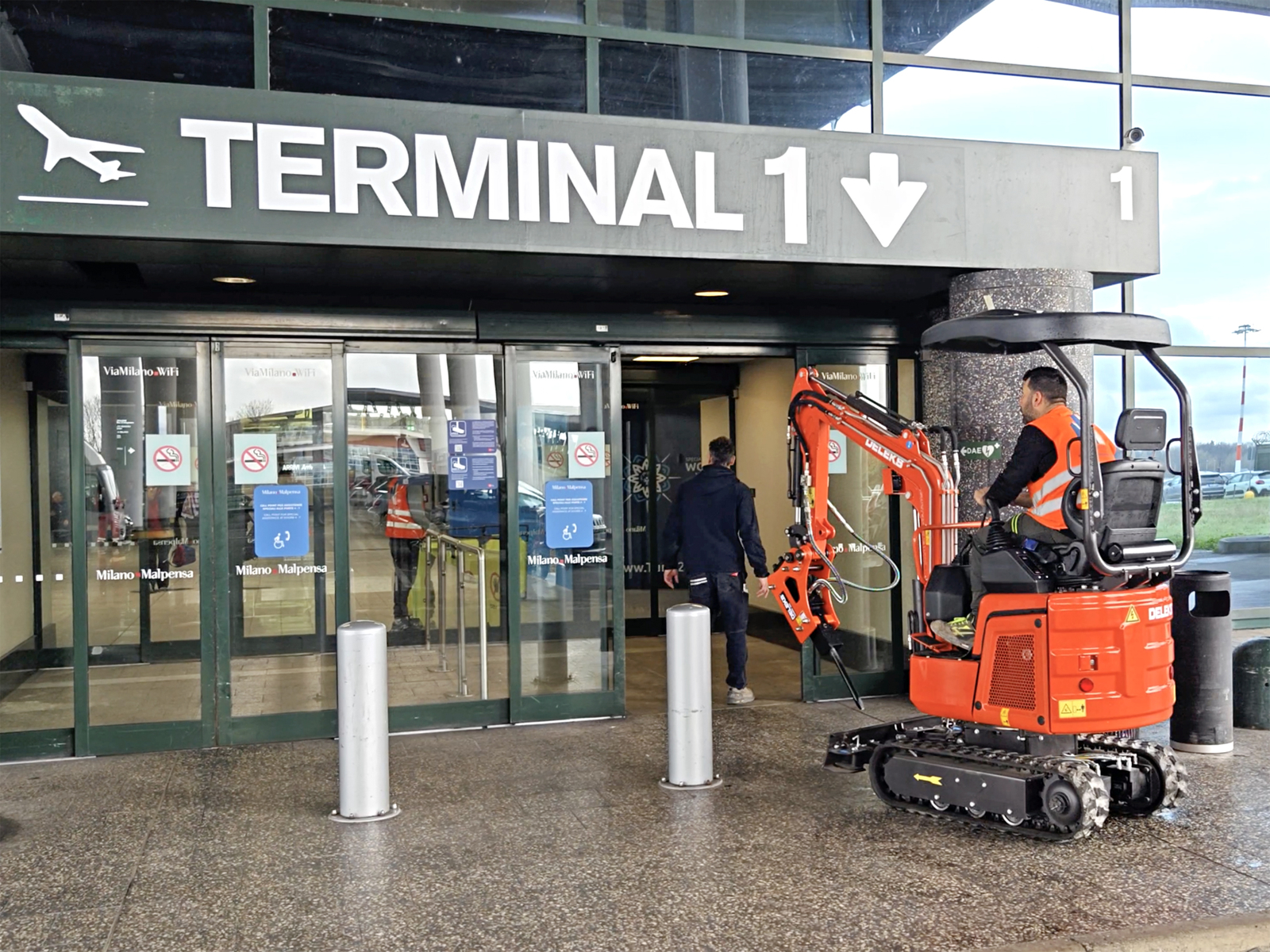

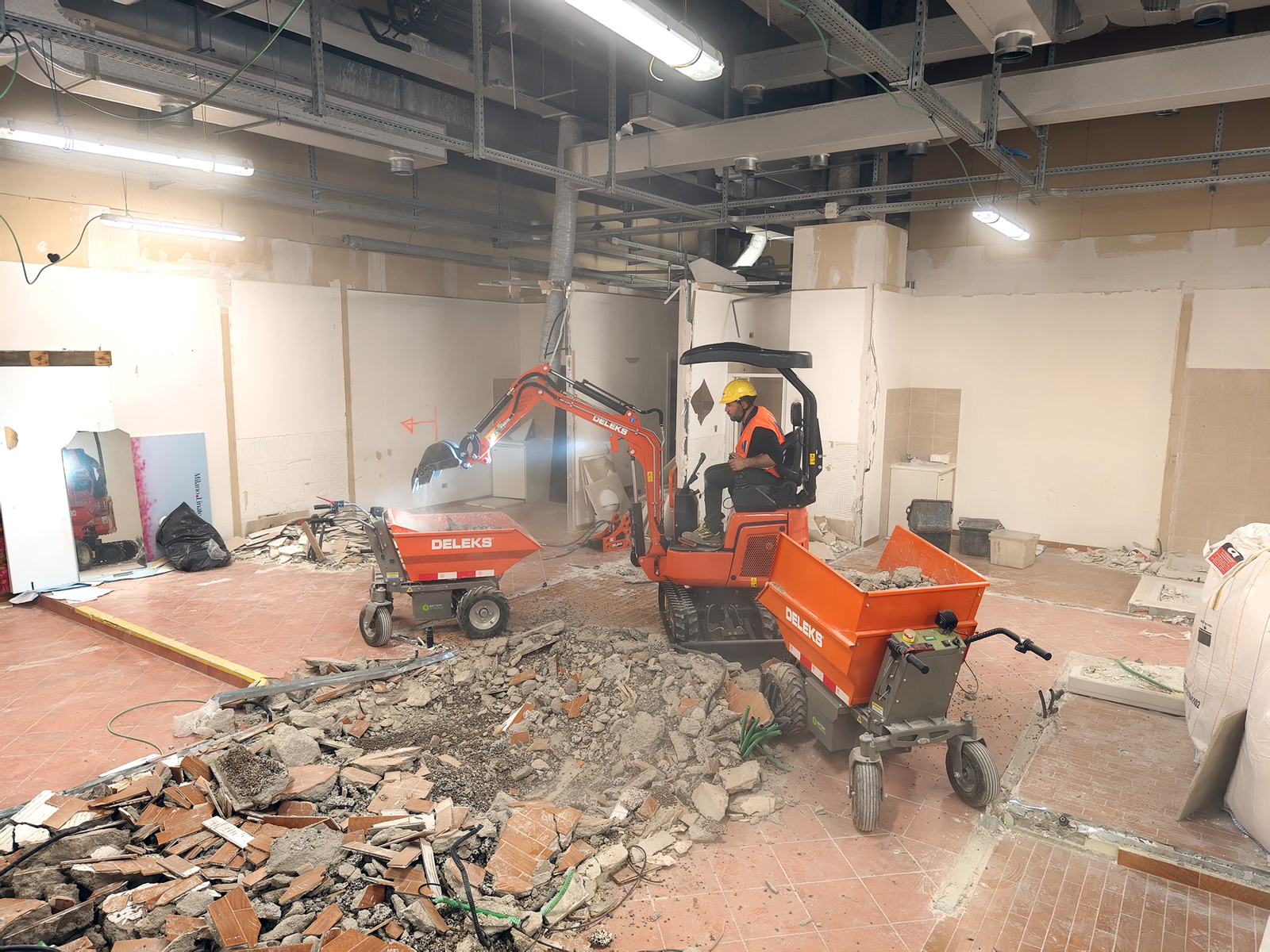

CASE STUDY – MILAN MALPENSA AIRPORT (MXP)

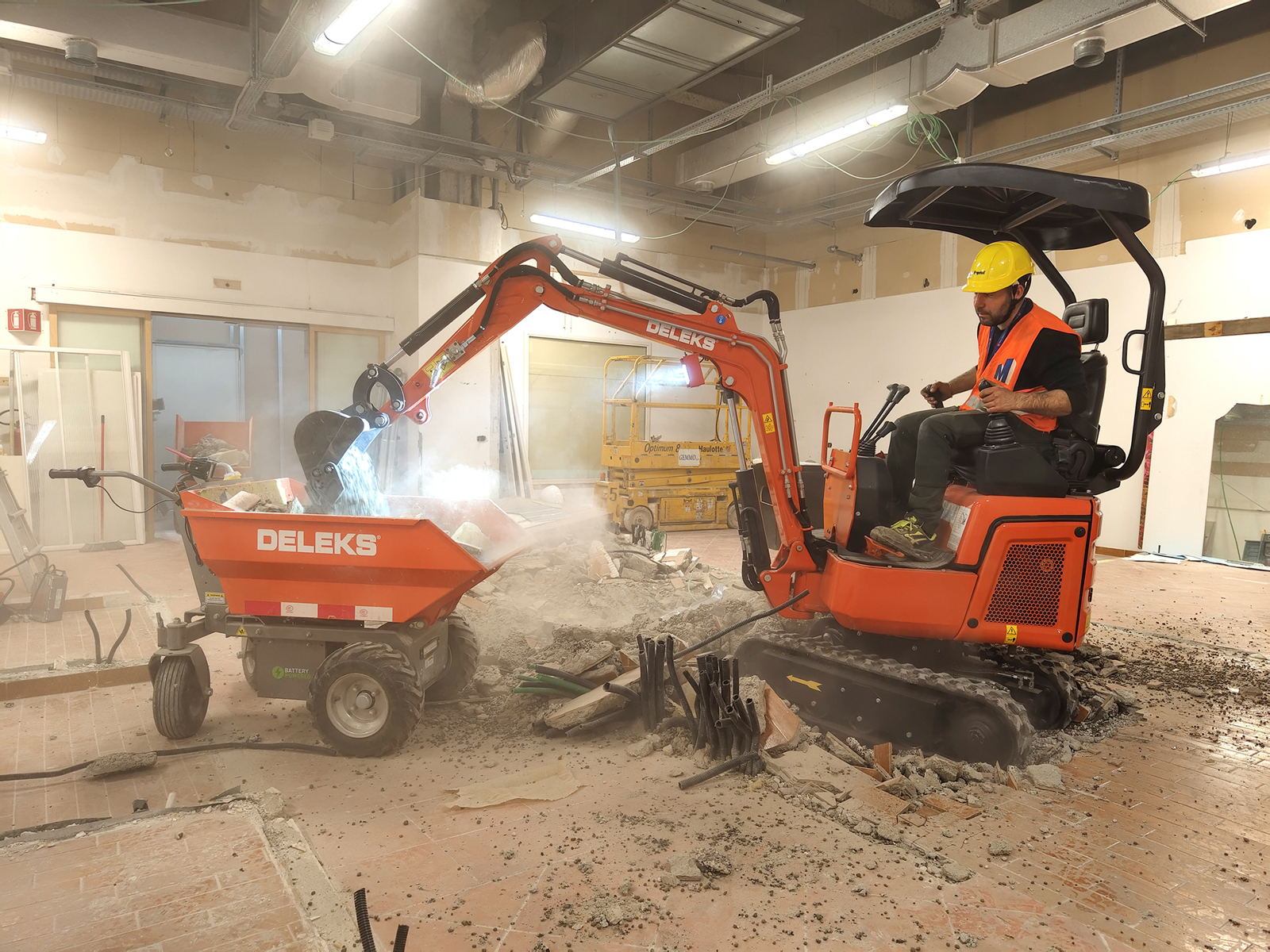

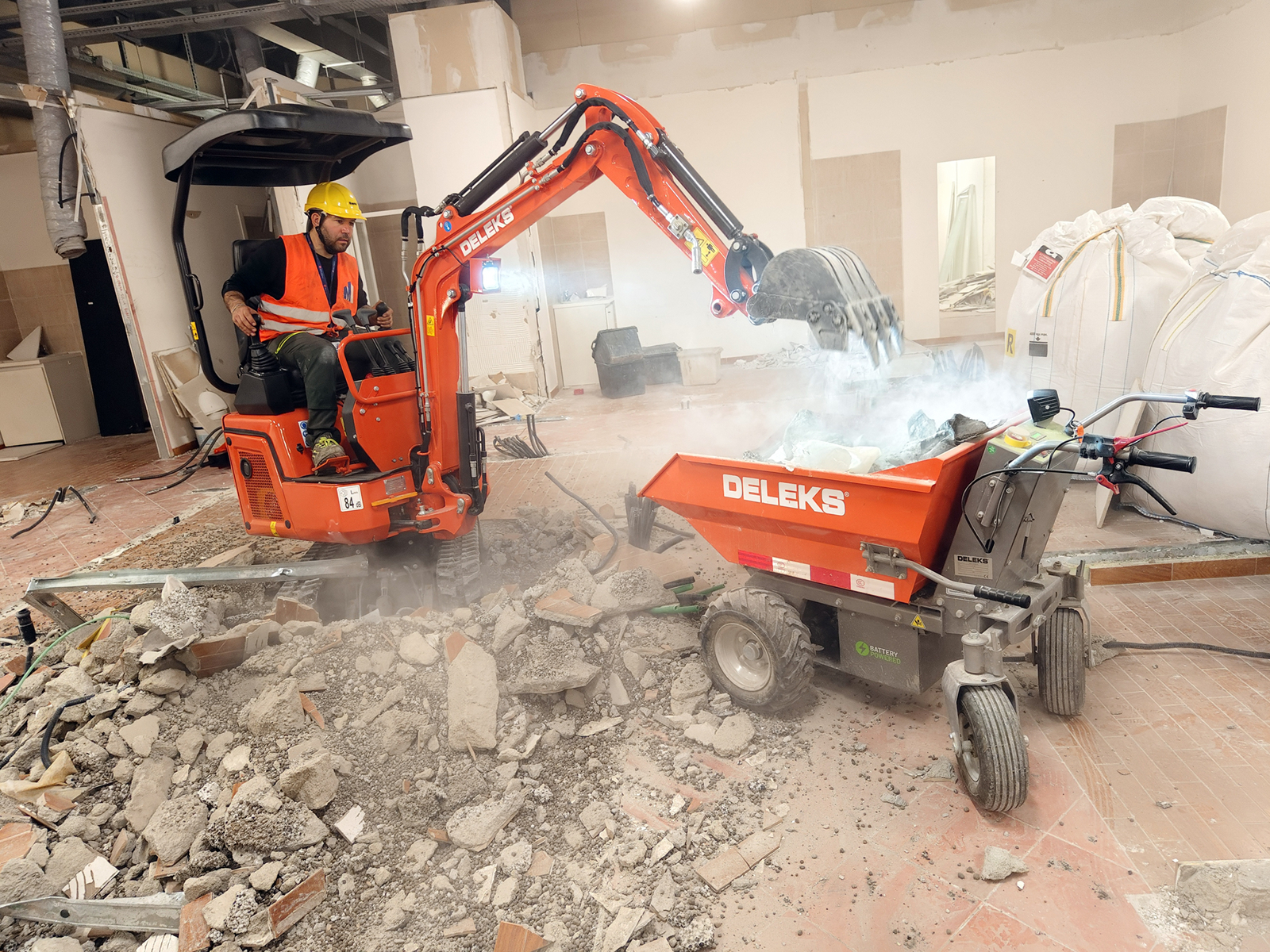

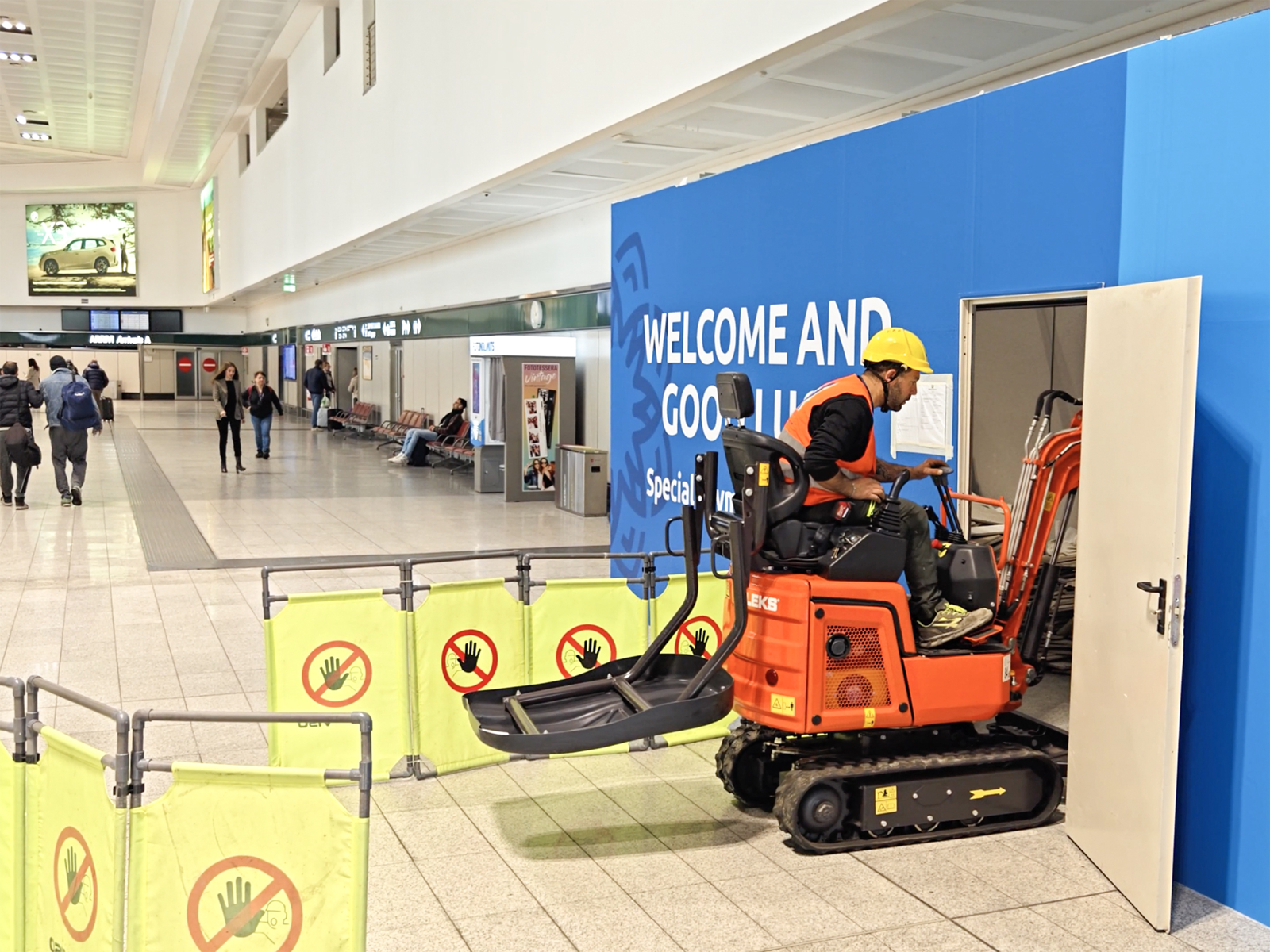

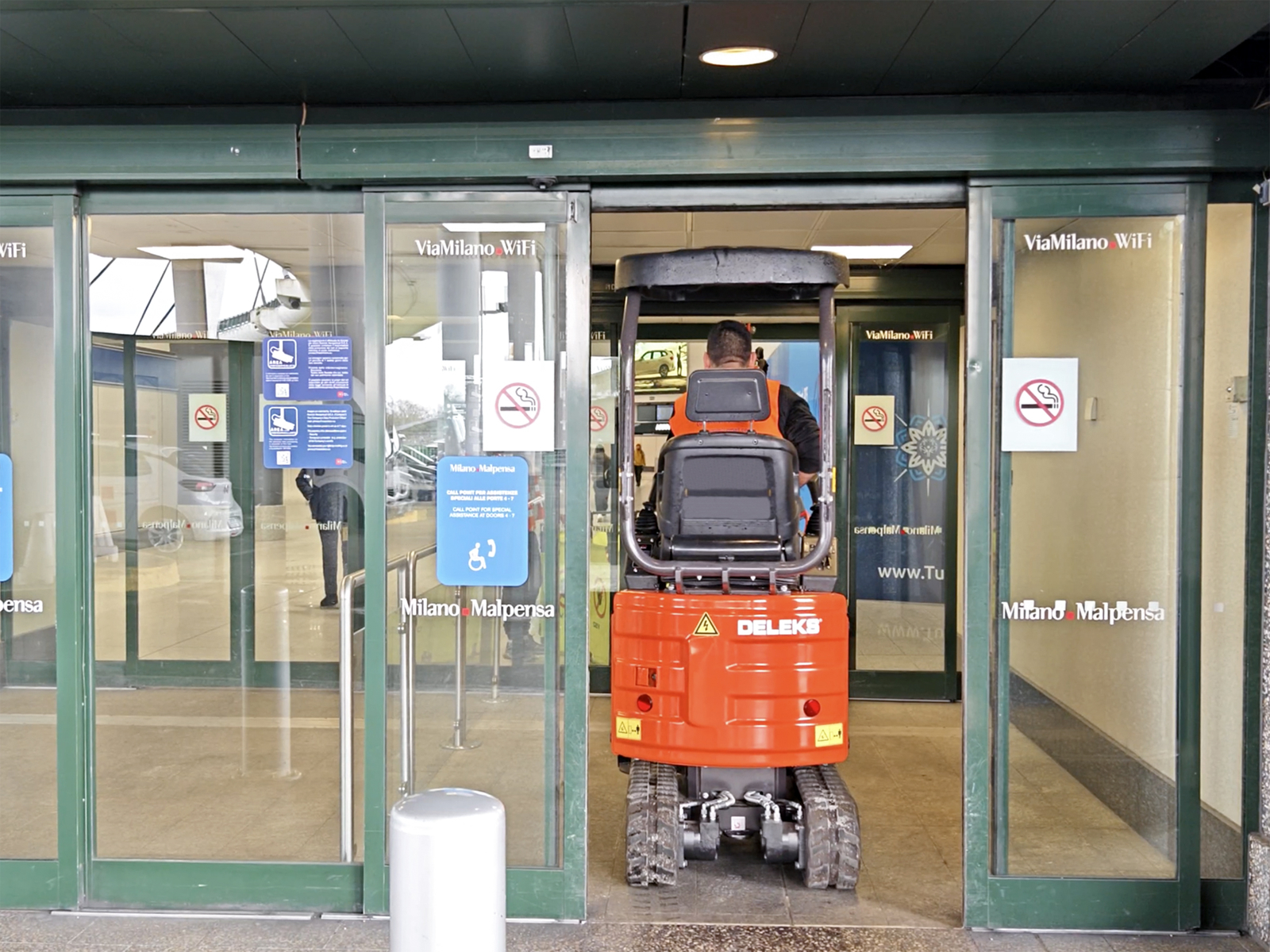

The DELEKS® E110 electric mini excavator was used for the complete renovation of internal restrooms at Milan Malpensa International Airport (MXP).

The project involved full demolition and removal of flooring in an environment where combustion-engine machinery was not allowed.

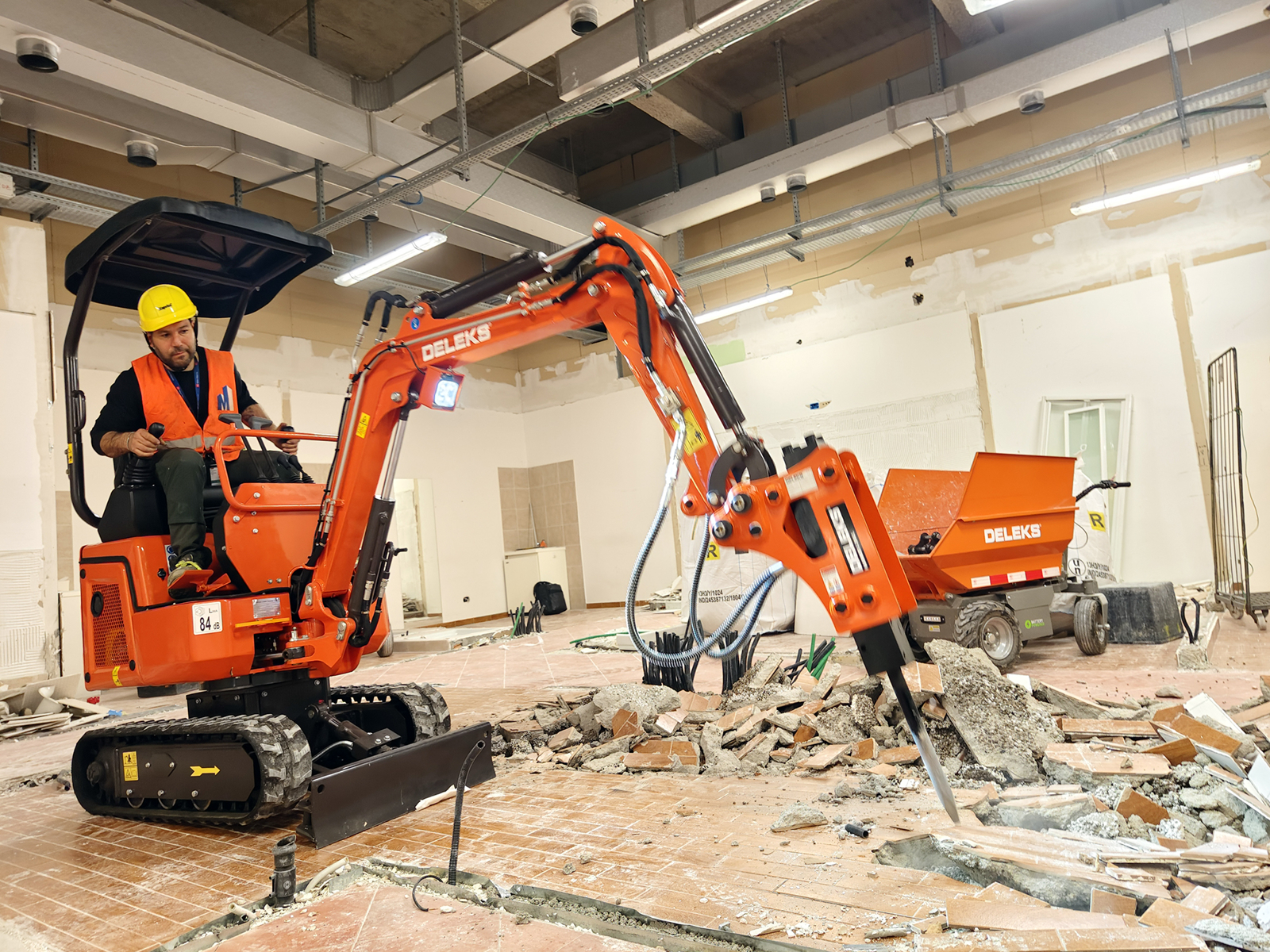

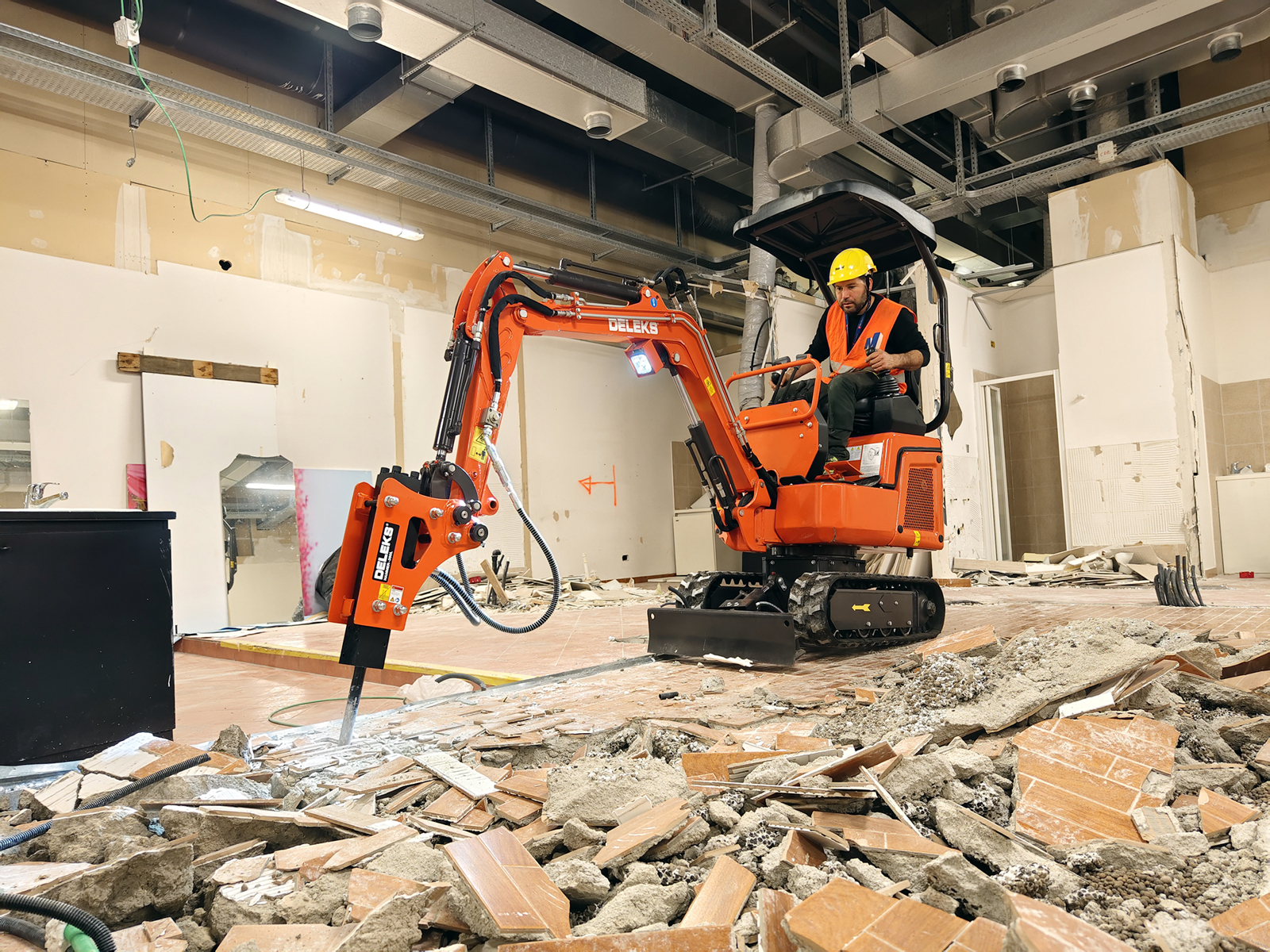

The DELEKS® E110, equipped with DELEKS 350L hydraulic breaker and standard bucket, and supported by DELEKS 100% electric wheelbarrows, enabled safe demolition and material handling, with zero emissions and reduced noise levels.

(Full video available on this page)

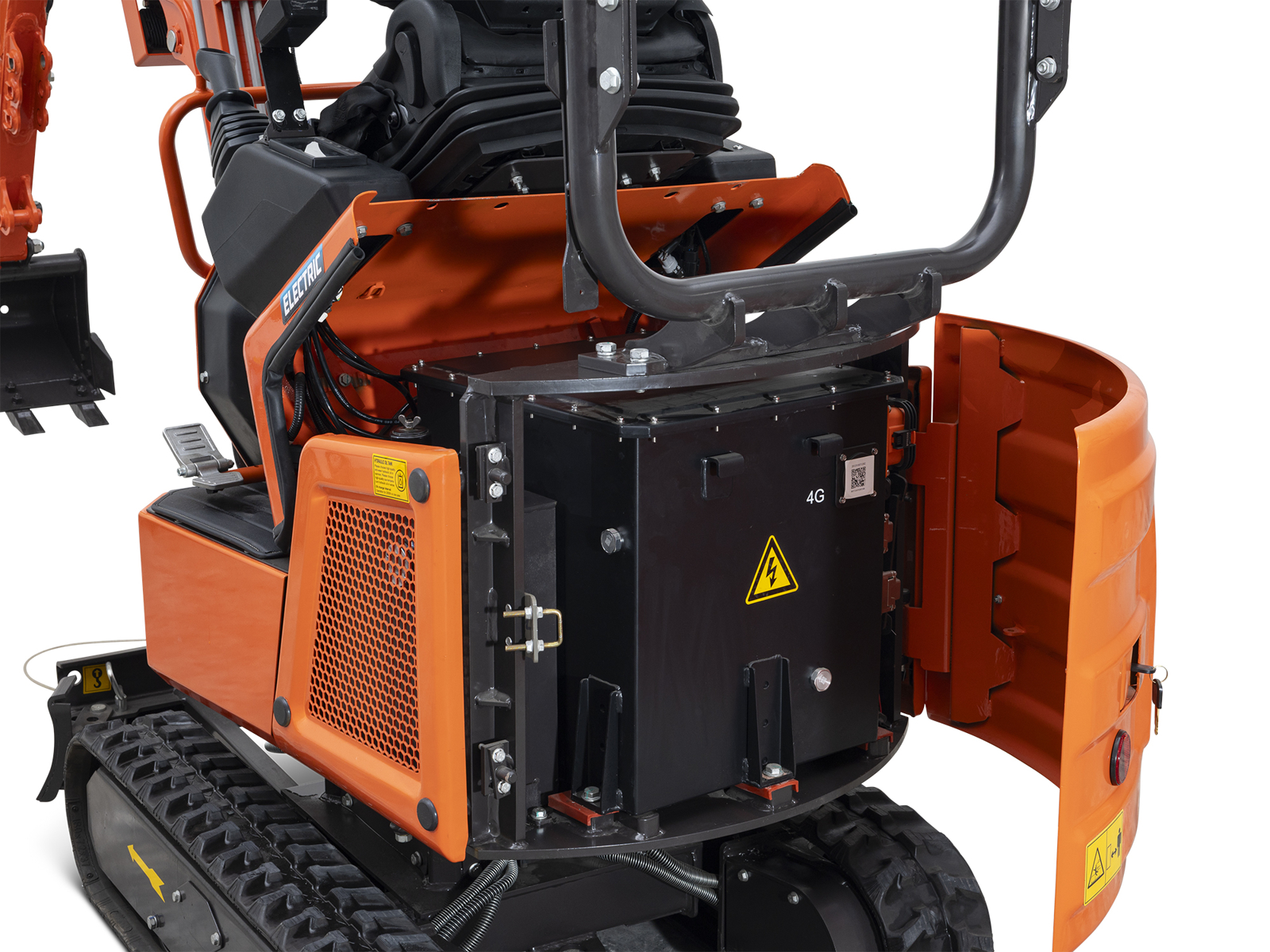

POWER AND ELECTRIC SYSTEM

Battery: Lithium 72V
Capacity: 16.56 kWh

Electric motor:
Rated power: 4000W
Rated torque: 18.2 Nm (instant)

UNDERCARRIAGE AND STRUCTURE

Operating weight: 1,120 kg

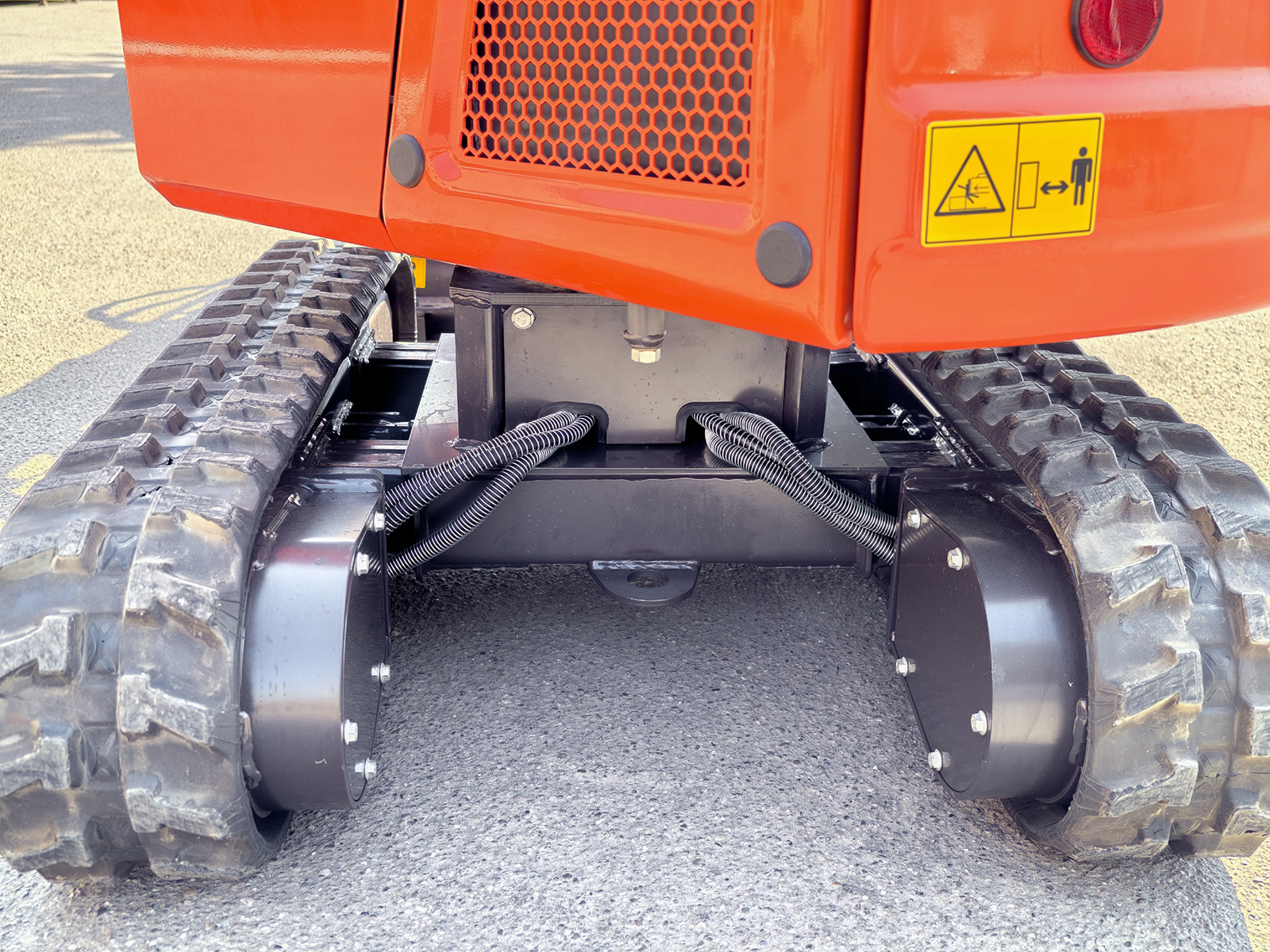

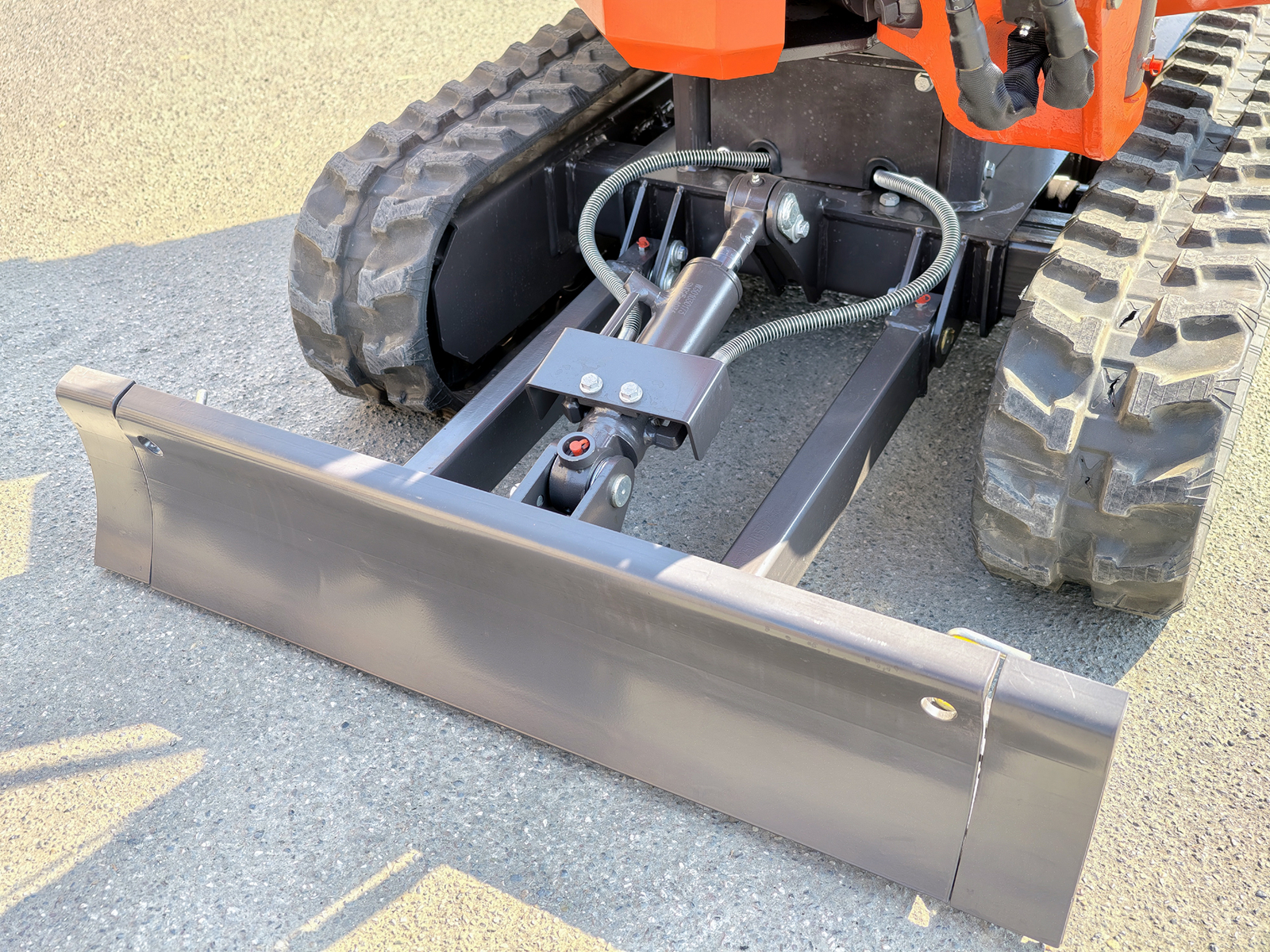

Extendable tracked undercarriage:

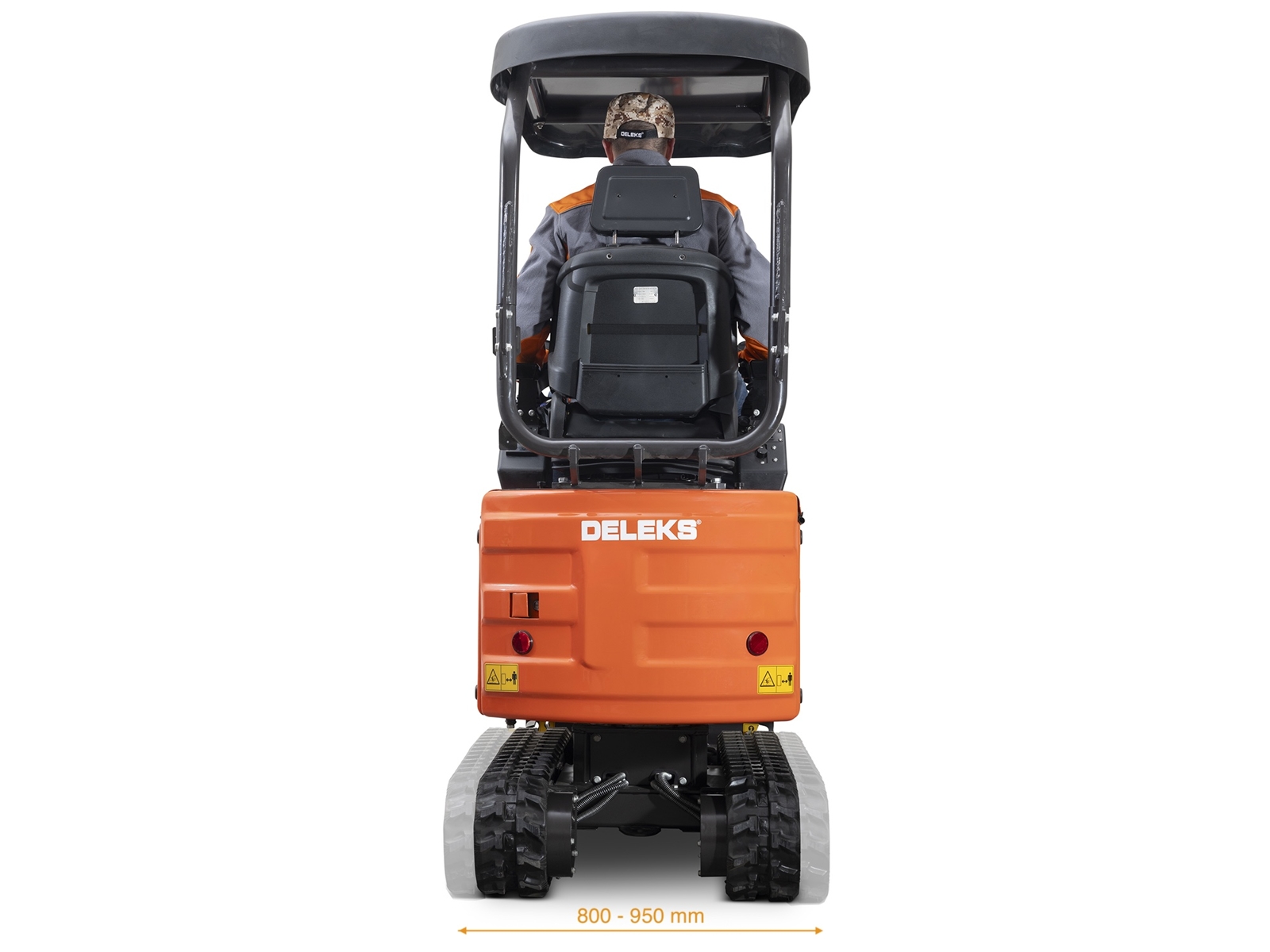

Min/max width: 800 – 950 mm

Allows access through narrow passages while ensuring greater stability during operation.

Easy transport on trailers up to 3.5 t

WORKING RANGE AND CAPACITY

Digging depth: 1,610 mm
Max dumping height: 1,880 mm
Standard bucket capacity: 0.02 m³

Additional specifications: see technical datasheet (PDF)

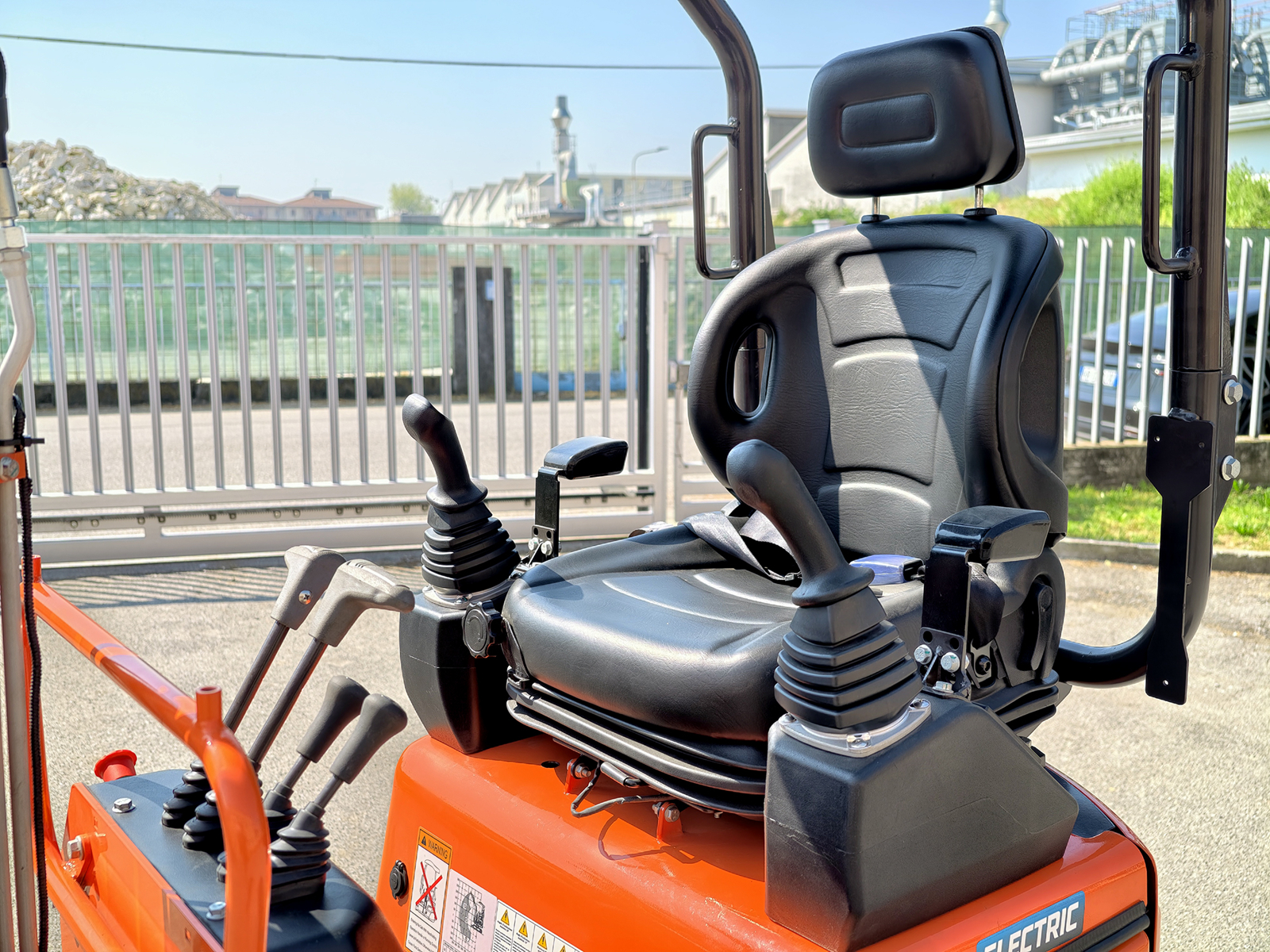

OPERATOR STATION

Side control levers for precise operation
Height-adjustable armrests

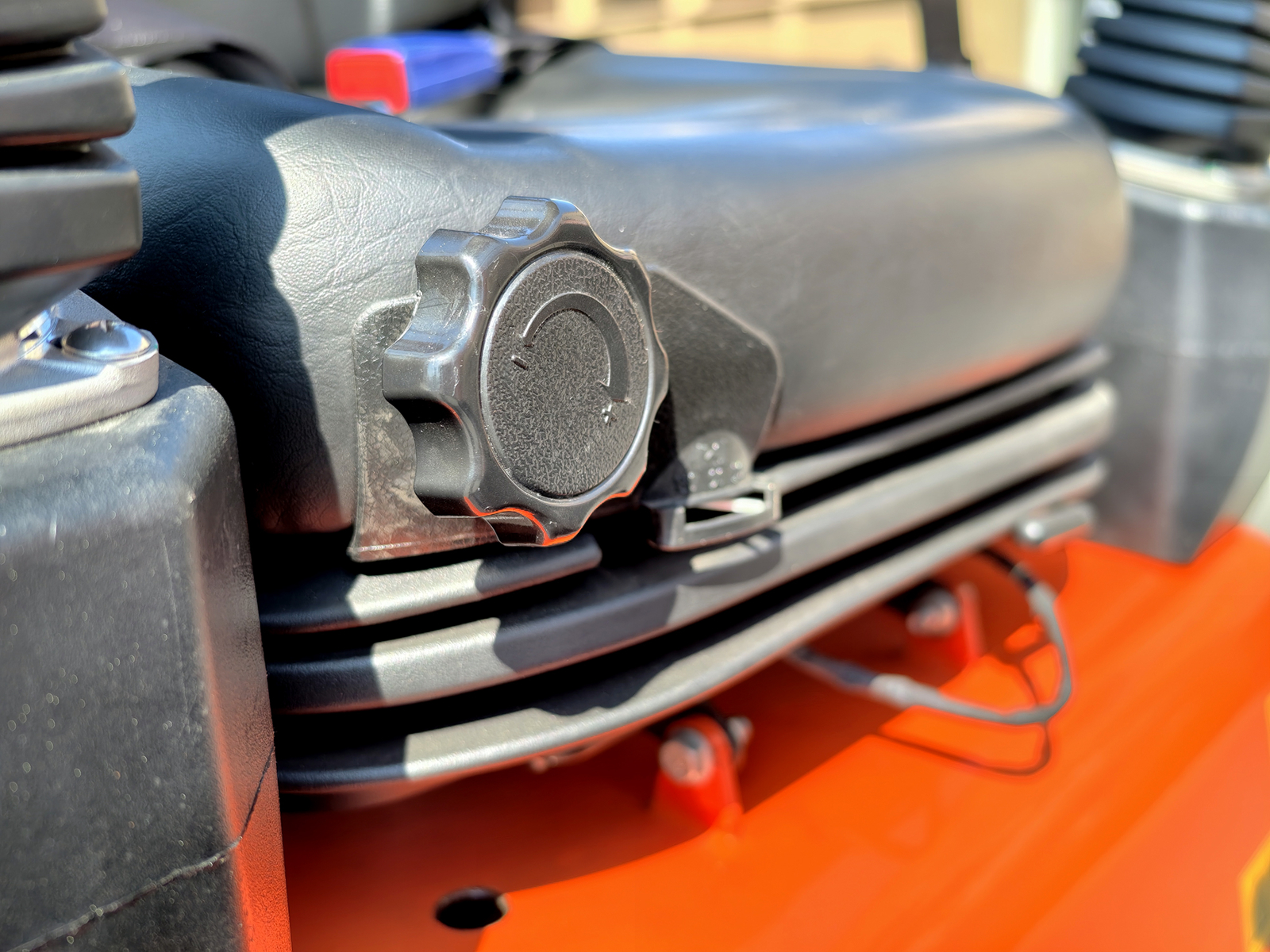

Adjustable mechanical suspension seat
Ergonomic working position for prolonged use

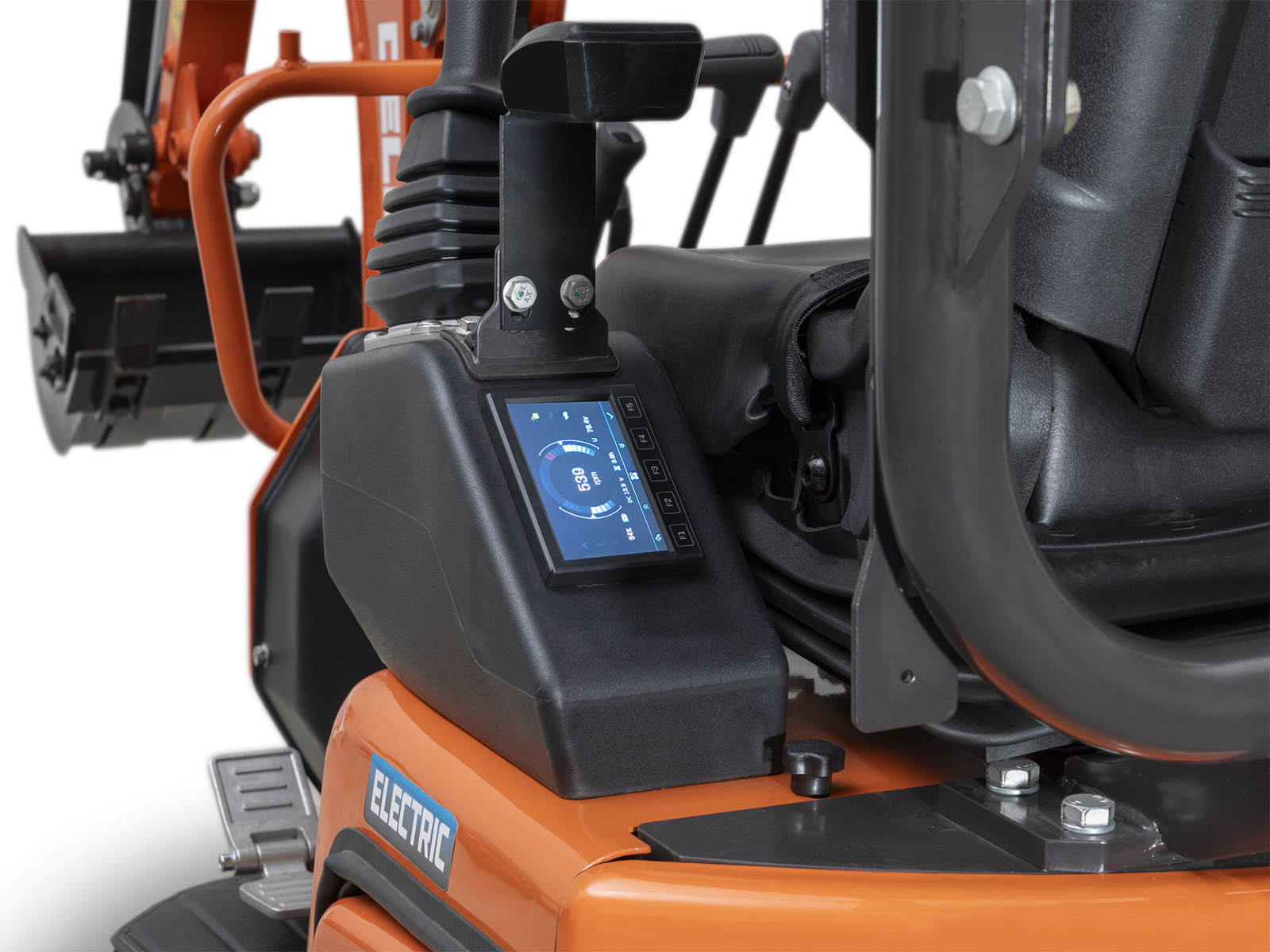

On-board display for real-time monitoring of machine and battery status, including speed, charge level and temperature indicators, as well as integrated warning systems.

Low vibration and noise levels improve operator comfort and safety.

LONG-TERM RELIABILITY

The DELEKS® E110 has been tested in demanding environments, including rainy conditions, ensuring full operability comparable to traditional excavators.

The robust structure, protected electrical components and lithium battery ensure durability and long service life.

Maintenance and operating costs are significantly reduced, with no engine oil or filters required.

CERTIFICATIONS AND DIRECTIVES

Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/EU
Noise Directive 2000/14/EC – 2005/88/EC

Protective structures:

FOPS Level I – ISO 3449:2008
TOPS – EN 13531:2001+A1:2008

SERVICE AND SPARE PARTS

Original DELEKS® spare parts ensure full compatibility and long-term reliability.
The DELEKS service network coordinates technical support and spare parts availability.

Transport notes:

Delivery location must be accessible to a semi-trailer truck.
Preparation and delivery times may exceed those indicated on the “Shipping” page – please contact our sales office before confirming your order.
