DETAILS
The DELEKS® forks for the V3000 and V3000H minidumpers are designed for handling pallets and compact loads up to 120 kg. The accessory replaces the standard bucket through bolted fastening, without requiring structural modifications to the machine.
The useful fork length of 834 mm allows correct handling of standard EUR pallets (120 × 80 cm), ensuring stability and precision during lifting and transport.
Technical specifications
• Compatibility: DELEKS® V3000 / V3000H
• Maximum capacity: 120 kg
• Useful fork length: 834 mm (compatible with EUR pallet 120×80 cm)
• Type: pallet forks for compact loads
• Installation: bolted fastening replacing the standard bucket
• Material: high-strength steel
• Applications: pallet handling, boxes, bags, containers, light construction materials
Operational advantages
• Increased versatility of the minidumper
• Precision in pallet handling
• Quick installation with stable fastening
• Robust structure suitable for professional use

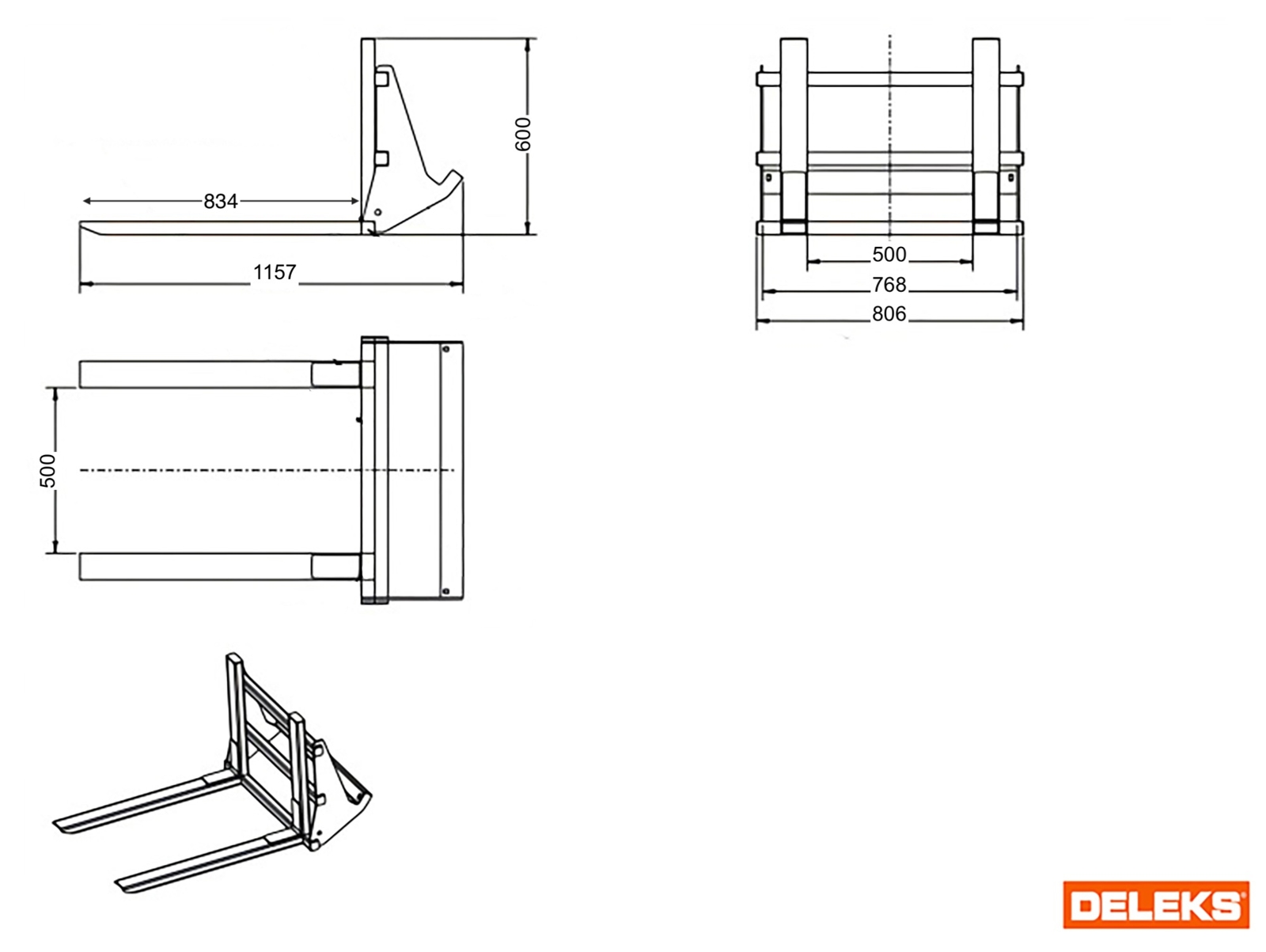

Dimensions
See attached images.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 48.0 kg |
| Overall height | 600.0 mm |
| Load capacity | 120.0 kg |
| Usable Fork Tine Length | 850.0 mm |
| Fork Tine Height | 45.0 mm |
| Fork Tine Width (single tine) | 80.0 mm |
| Packing sizes | 900*600*400 mm |
DETAILS
CLOSEThe DELEKS® forks for the V3000 and V3000H minidumpers are designed for handling pallets and compact loads up to 120 kg. The accessory replaces the standard bucket through bolted fastening, without requiring structural modifications to the machine.
The useful fork length of 834 mm allows correct handling of standard EUR pallets (120 × 80 cm), ensuring stability and precision during lifting and transport.
Technical specifications
• Compatibility: DELEKS® V3000 / V3000H
• Maximum capacity: 120 kg
• Useful fork length: 834 mm (compatible with EUR pallet 120×80 cm)
• Type: pallet forks for compact loads
• Installation: bolted fastening replacing the standard bucket
• Material: high-strength steel
• Applications: pallet handling, boxes, bags, containers, light construction materials
Operational advantages
• Increased versatility of the minidumper
• Precision in pallet handling
• Quick installation with stable fastening
• Robust structure suitable for professional use
Dimensions
See attached images.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 48.0 kg |
| Overall height | 600.0 mm |
| Load capacity | 120.0 kg |
| Usable Fork Tine Length | 850.0 mm |
| Fork Tine Height | 45.0 mm |
| Fork Tine Width (single tine) | 80.0 mm |
| Packing sizes | 900*600*400 mm |
